German Light Products®
Fusion FS 16Z User Manual Rev. 20240625-01 43
Installing a diffuser
20°, 40°, 60° and 10°x60° (asymmetric) diffusers that can be installed over the front of
the fixture to soften the light output are available as optional accessories for the FS 16Z.

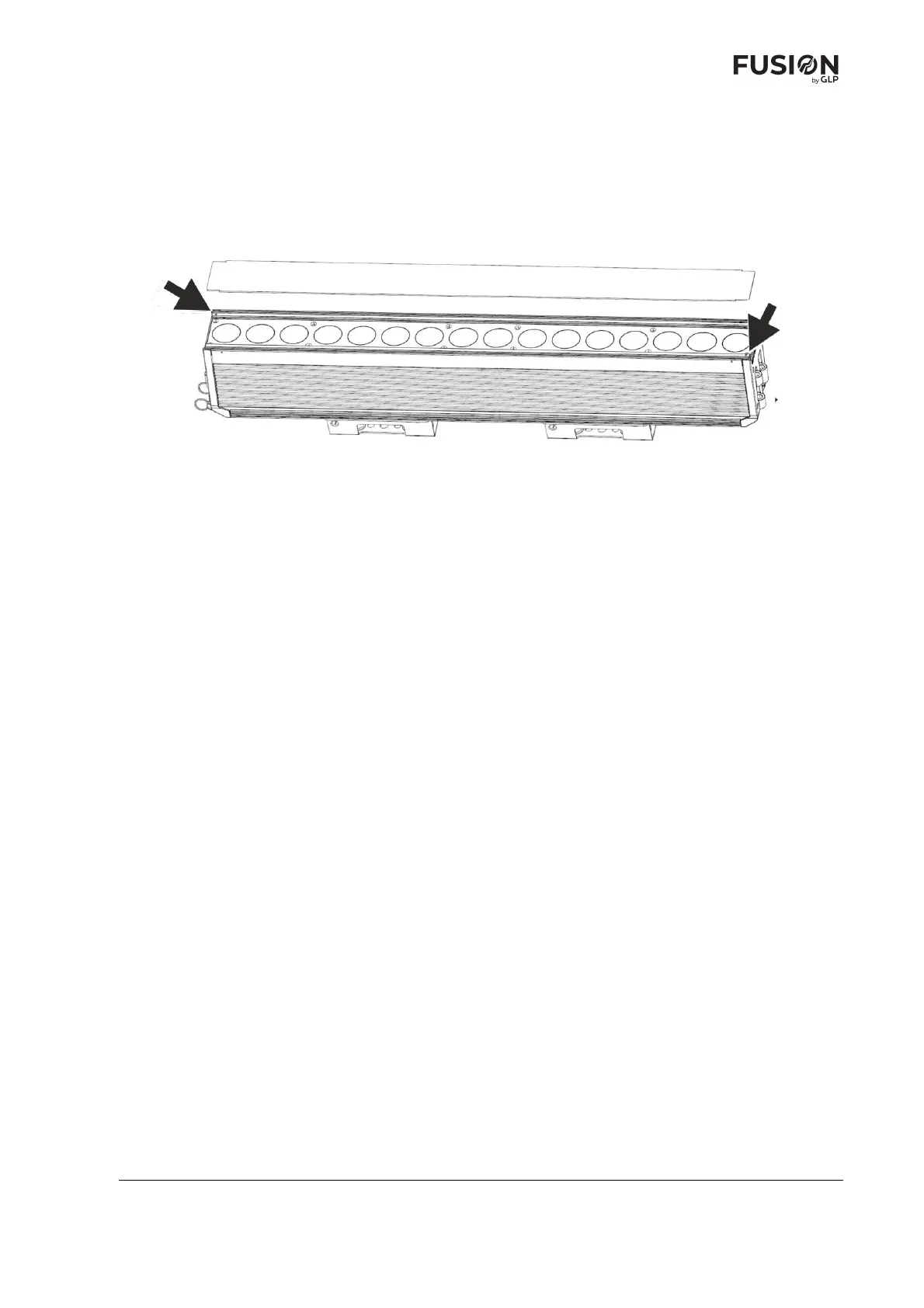

Figure 19. FS 16Z Diffuser
To install an FS 16ZDiffuser:
1. See Figure 19. Slide the diffuser into the provided channels on the front of the
fixture. A spring-loaded ball detent system will hold the diffuser in place.
2. If the fixture is installed horizontally on a surface, securing the diffuser with screws is
not necessary, but if the fixture is installed at any other angle than horizontal, it may
be possible for the diffuser to slide out of the fixture and cause injury or damage. In
this case, insert the two grub screws supplied with diffusers into the threaded holes
(arrowed) in the front face of the fixture at diagonal corners of the diffuser and
screw them tight.
3 Check that the grub screws now prevent the diffuser from sliding out of the front of
the fixture.
GLP Service and Support
Contact information for the nearest GLP Service and Support is available online at
www.glp.de/en/service, by email at info@glp.de, or by telephone at the following
numbers:
● GLP Germany: +49 (7248) 927 19-55
● GLP N. America: +1 818 767-8899
● GLP UK: +44 1392 690140
● GLP Asia: +852 (3151) 7730
● GLP Nordic: +46 737 57 11 40
