32 Fusion FS 16Z User Manual Rev. 20240625-01
Dimming
See Figure 16. You can select from four dimming curves using the control panel or the
Control / Settings DMX channel:
● Linear sets dimming so that it appears to increase and decrease evenly throughout
the dimming range.
● Theatrical is an S-shaped curve that gives finer control at low and at high light levels.
● Square Law gives finer control at low light levels and coarser control at high light
levels.
● Inverse Square Law gives coarser control at low light levels and finer control at high
light levels.
The default setting is Linear.
Patterns
The FS 16Z’s pre-programmed patterns give you quick access to a wide range of static
and dynamic patterns with a range of movement options.
See ‘Guide to patterns‘ on page 64 for tables showing the appearance of the
patterns.
Single-layer pattern control
The following DMX Modes provide control of one layer of patterns on three DMX
channels
● Mode 1 – Standard
● Mode 2 – Advanced
In these modes, the DMX channels are laid out as follows:
● The first channel lets you select a pattern.
● The second channel lets you adjust movement speed if you have selected an
animated pattern.

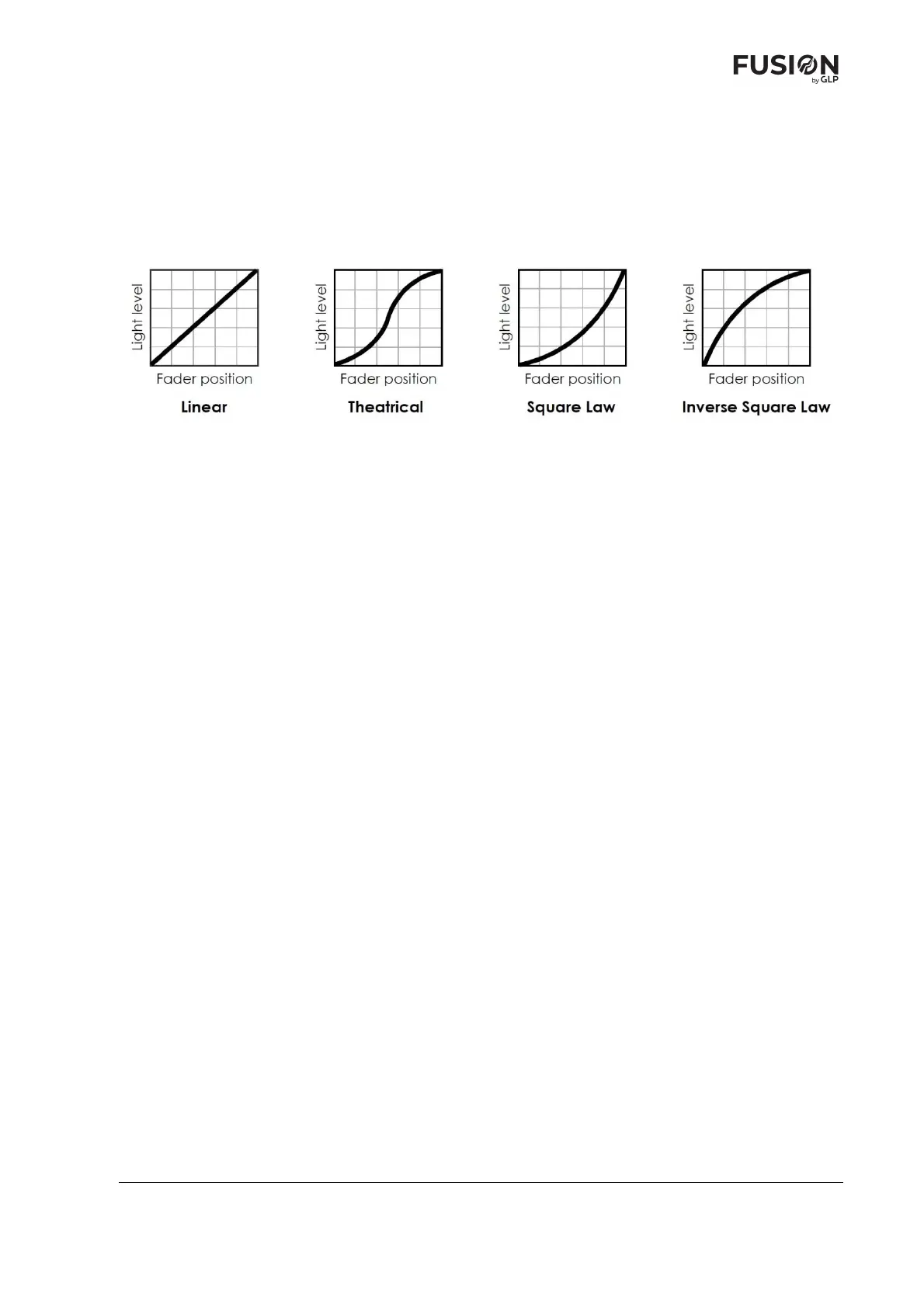

Figure 16. Dimming curves
