26 Fusion FS 16Z User Manual Rev. 20240625-01
To create a vertical column of more than two fixtures, you can:
● attach the FS 16Z base plate to a safely dimensioned F34 truss steel base plate
● fasten each fixture individually to a vertical truss, or
● suspend a chain of up to six (6) fixtures from a horizontal truss as described in
‘Suspending multiple fixtures vertically’ on page 24.
To install an FS 16Z fixture standing vertically:

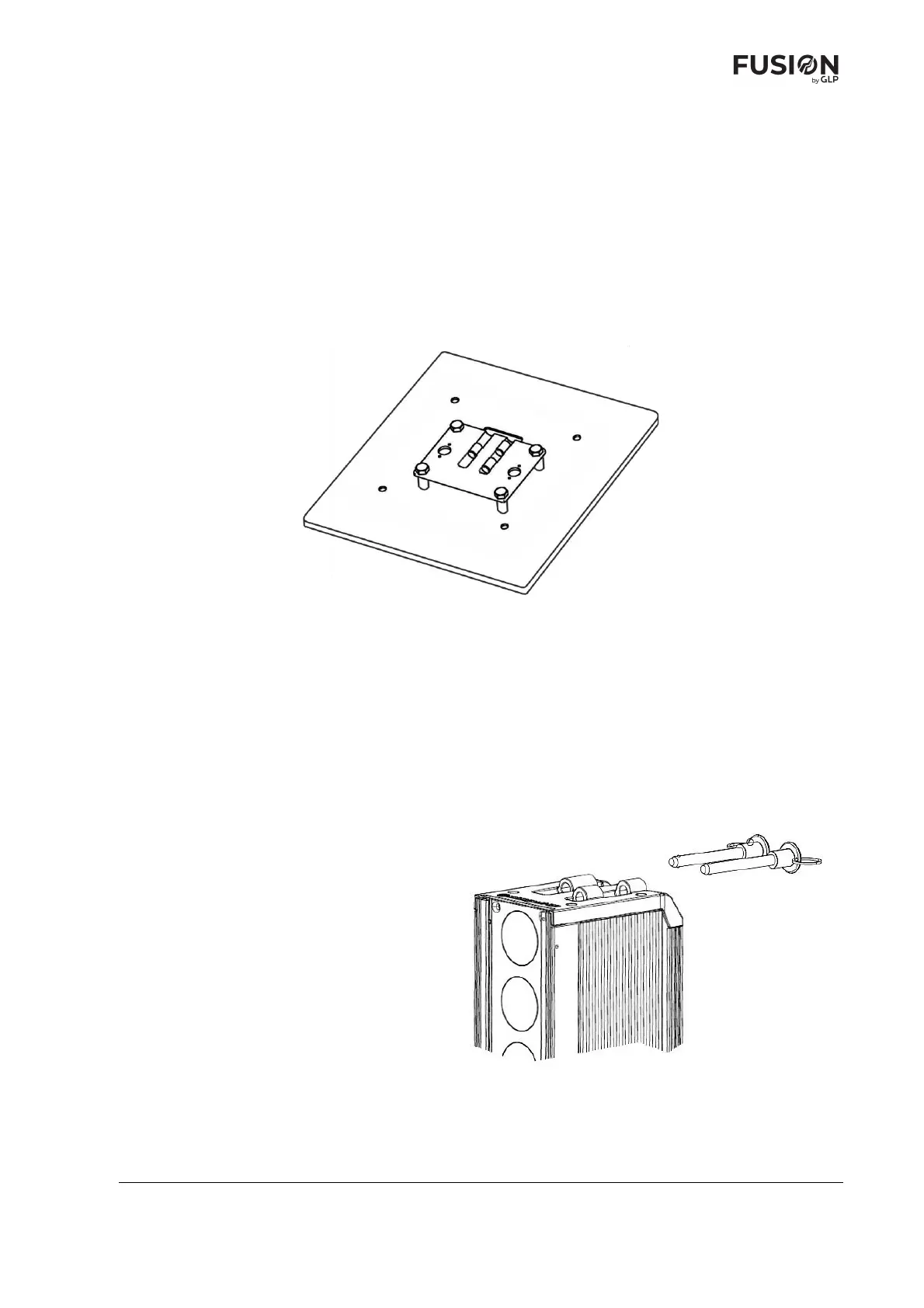

Figure 14. Base Plate accessory
1. See Figure 14. Place the End Plate accessory on the end of the fixture, rotating it if
necessary so that the locking channels in the end of the fixture mesh correctly with
the corresponding channels in the End Plate.
2. Fasten the fixture to the End Plate / Base Plate assembly by pushing two locking
pins fully into the locking channels in the End Plate and in the fixture. Release the
buttons in the locking pins and ensure the pins are locked in position.
3. Place the fixture on the surface. Make sure that it is safe and secure, and that it will
not present a danger of tripping or
falling.
4. If there is a risk that the fixture may
fall over and cause injury or
damage, fasten the Base Plate to
the surface using suitable bolts or
screws passed through the four
holes in the corners of the plate,
or attach a steel F32 truss base
plate. Make sure that it is
impossible for the fixture to fall or
be knocked over.
6. To install a second fixture on top
of the first fixture, see Figure 15.
Have two Locking Pins ready to
fasten the fixtures together.
Figure 15. Locking pins ready for second
fixture standing vertically
