German Light Products® DoP Converter DINrail / UM

GLP DoP Converter User Manual Rev. 20220320-01 9

3. DoP Converter UM overview

A – DMX IN terminals

B – DMX OUT terminals

C – Control button A

D – Control button B

E – Monochrome OLED display

F – Mains power IN terminals (Live, Neutral, Ground/Earth*)

G – Mains power OUT terminals (Live, Neutral, Ground/Earth*)

H – Mounting points (x 4) for optional surface mounting bracket

*Ground/Earth connection is provided for convenience when looping through and is

not required by the DOP converter

A

D

E

H

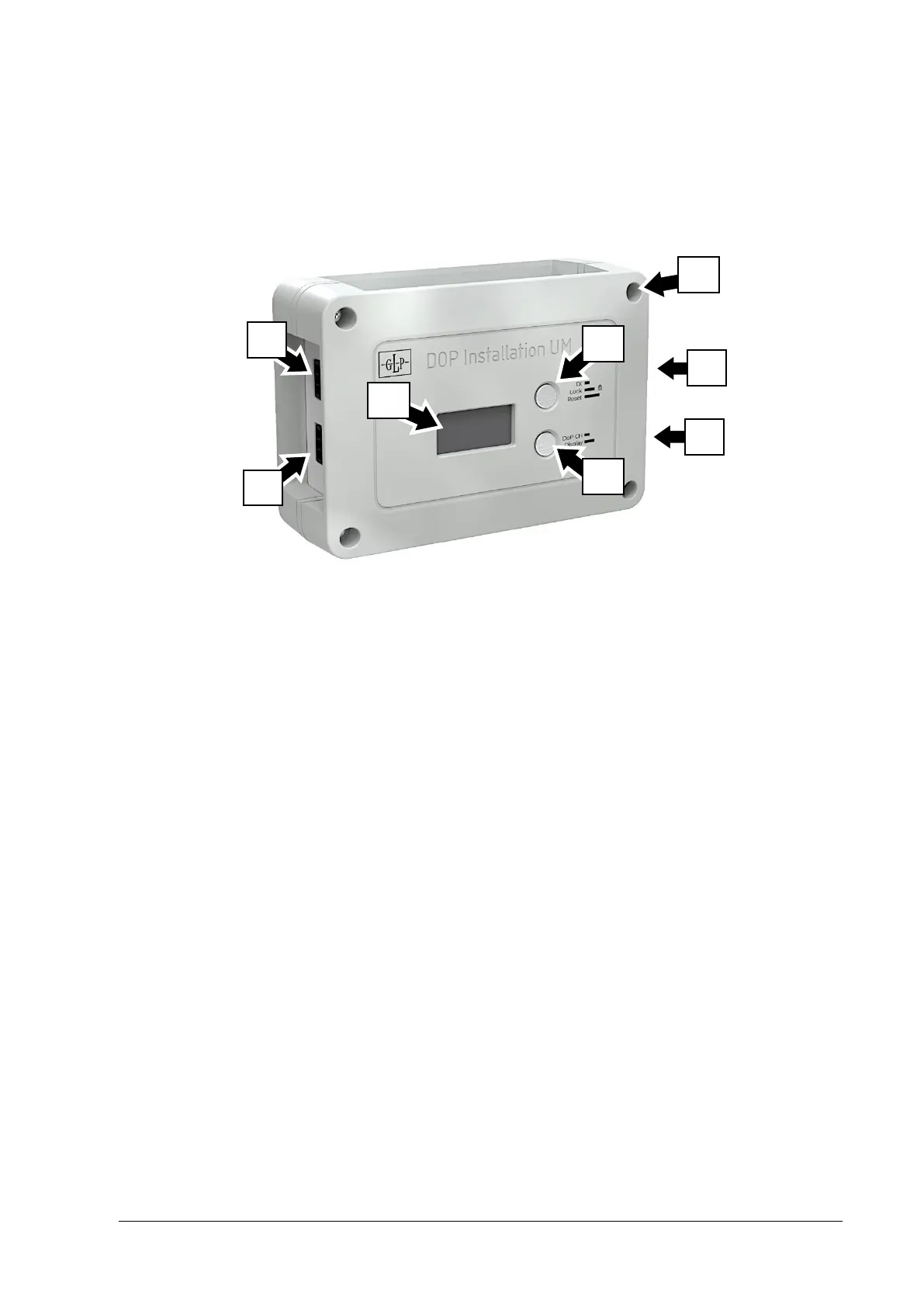

Figure 2. DoP Converter UM (universal mount version) overview

B

C

F

G
