3
3. Inspect the ball caddy from the side to ensure the bracket rims
are fully engaged in the slots.

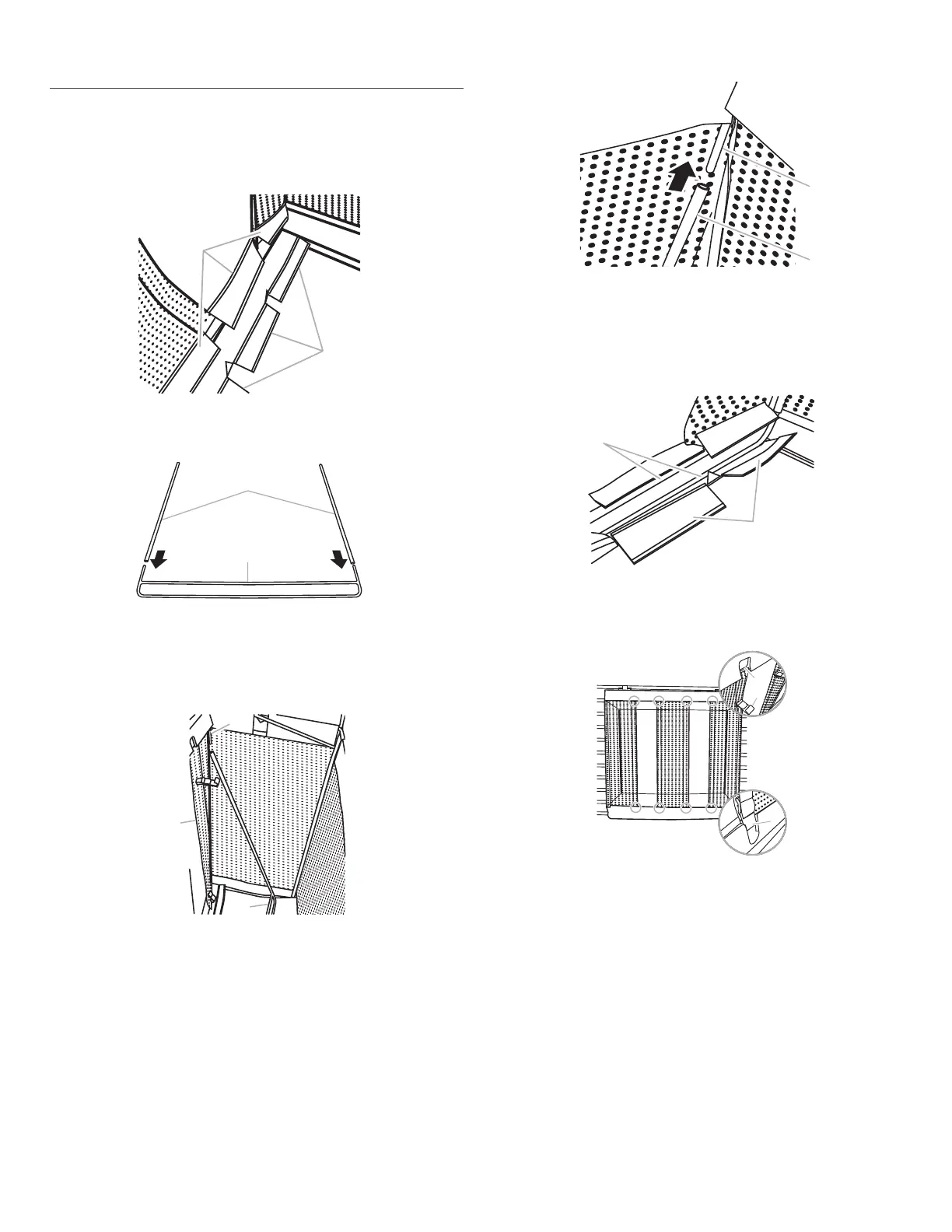

Assemble Ball Caddy
IMPORTANT : Before assembling, rst mount the ball caddy to
GearWall
®
panel or GearTrack
®
channel.
1. Reach inside the ball caddy and unfasten the fabric closures
running along the bottom front of the caddy.
2. Slide the hollow metal rods onto each end of the lower frame,
as shown.
3. Holding the lower frame where it is joined with the metal rods,
place the frame, bottom edge down, into the ball caddy at an
angle.
4. Slide the hollow metal rods that are joined to the lower frame,
onto each end of the upper frame, as shown.
5. Pull the lower frame forward until it is between the fabric
closures at the bottom of the ball caddy. Fasten the fabric
closures around both cross bars of the lower frame.
NOTE: Make sure the fabric closures are fastened tightly
around both the upper and lower crossbars of the frame.
6. Attach the eight hooks, one on each end of the four elastic
straps, onto the upper and lower frame, as shown.
A. Fabric closures
A
A
A
B
C.
Lower frameA
. Upper frame
B. Ball caddy front
A
B
C
A
B
A. Upper frame
B. Ball caddy front
A. Crossbar
B. Fabric closures
A
B
B
B
A
A.Hollow metal rod
B.Lower frame
A.Upper frame
B.Hook
