Install the Claw Hook Advanced
Bike Storage v3.0
IMPORTANT:
■ The Gladiator Claw™ Advanced Bike Storage v3.0 hook holds
either wheel of a bike.
1. Determine where you want to hang the bike. Engage the
storage hook mounting bracket into the wall slots by lifting up,
pushing toward the wall and lowering the bracket rims into the
slots.
2. Inspect the bike storage hook from the side to make sure
the mounting bracket rims are fully engaged in the slots.
3. Turn the lever lock counterclockwise to lock the storage
hook to the GearWall
®
panel or GearTrack
®
channel. Make
sure the lever lock is in the fully locked position, as shown.
4. Press the plunger until the hook arms are in the open position.
5. Lift the bike up and press the bike tire against the plunger.
The hook arms will close around the wheel. Make sure
both arms are completely closed around the wheel.
6. Remove the bike by lifting the bike up and
pressing the tire against the plunger. The hook
arms will open to release the bike wheel.
Install the Fishing Pole Hook
■ Designed to be used as a pair, the set of four shing pole
holders will support two shing poles mounted either vertically
or horizontally, as shown.
1. Install the shing pole holders into the slots in the GearWall
®
panel or GearTrack
®
channel so that distance between the
holders is one half the length of the shing pole.
NOTE: Engage the bracket rims into the slots by lifting up,
pushing toward the wall and lowering the rims into the slots.
2. Inspect the bracket from the side to ensure the
rims are fully engaged in the slots as shown.
3. Set the shing pole into the holders.

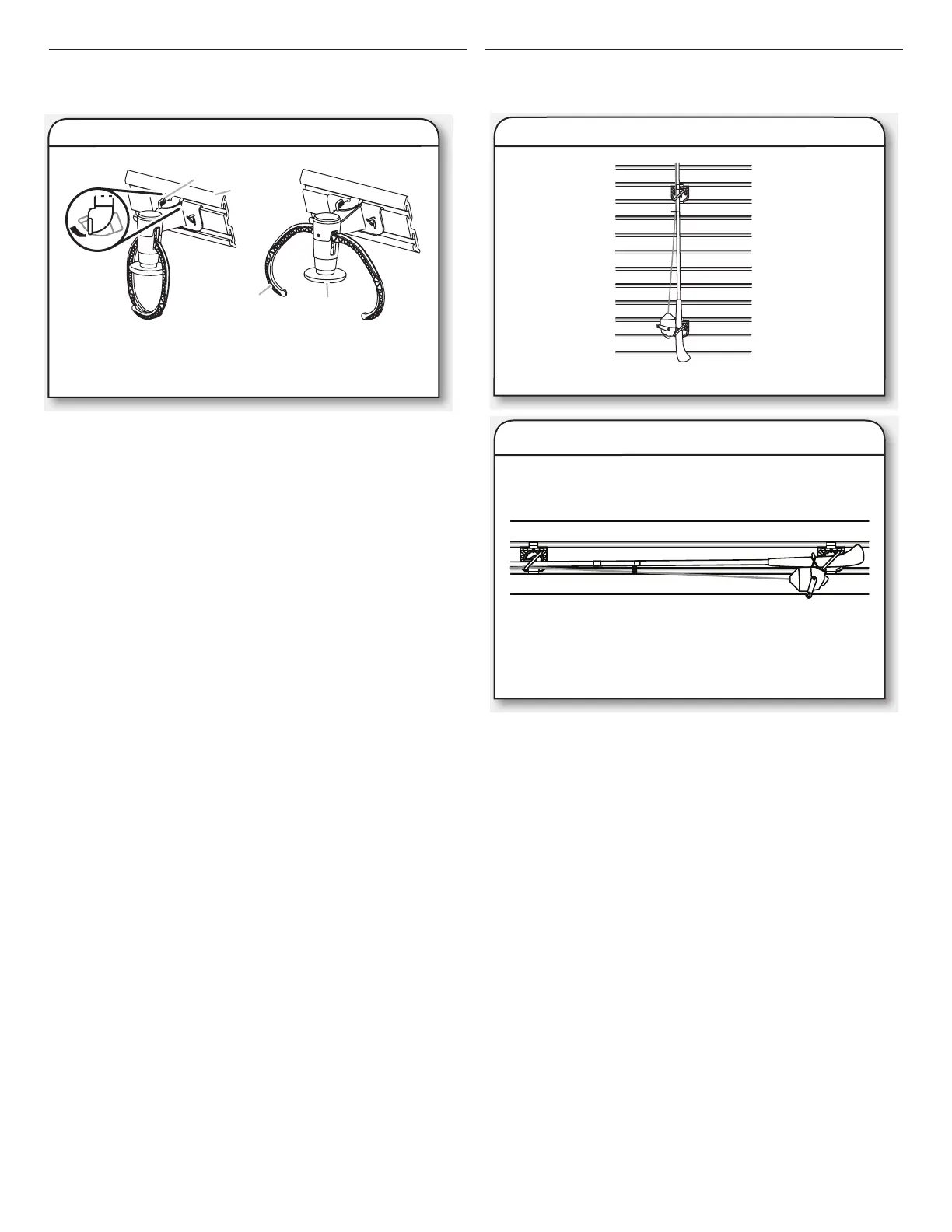

Claw Hook Advanced Bike Storage
C
D
A. Lever lock
B. Gear
Track
®
channel
C. Hook arm
D. Plunger
A
B
Fishing Pole Hook (Vertical)
Fishing Pole Hook (Horizontal)
