12
- Lightly beat the dust container to bring down the last remnants.
- Close the door. Install the dust bin (4) on the main unit by matching the openings for air circulation by
pushing it until you hear a click.
FILTER MAINTENANCE
DISASSEMBLING THE FILTER SYSTEM
Once extracted dust container (4), to disassemble the filter (F) from the dust bin (4), follow the steps below:
- Grasp the handle (5) of the container (4) and open the lid (B) by pulling the tab.
- Remove the filter assembly from the dust container (4).
- Clean the filter that is under the lid as described in the next paragraph.
- At the end of the cleaning process, insert the filter and close the lid to the bin (4) and push until you hear a
click sound. Install the container (4) on the main body of the unit.

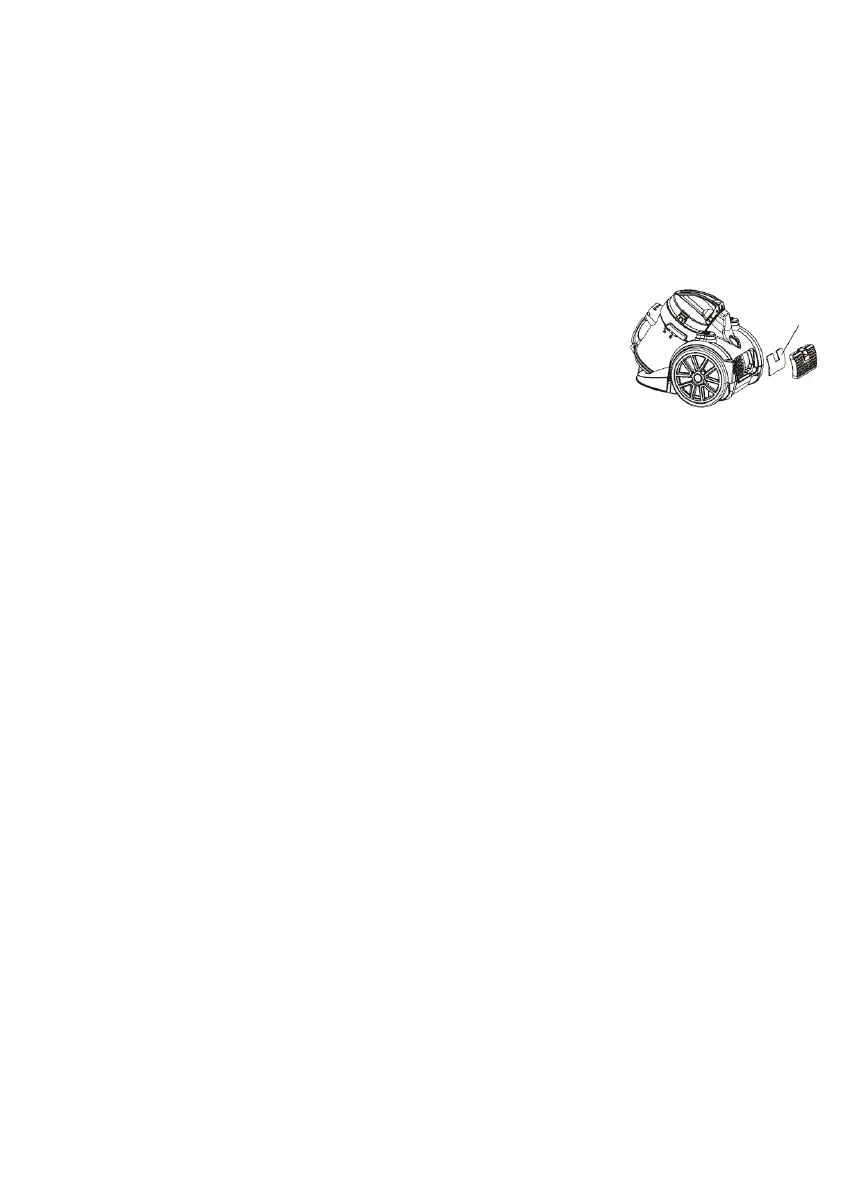

The air-outlet filter is placed in the rear of the unit, under the resting
hook (6). To remove it, follow the steps below:
- Remove the grid by pulling the tab and remove the filter inside.
- Clean the filter as shown in the next section.
- During installation make sure to properly assemble the filter and the grid.
CLEANING FILTERS
The filters can be cleaned in various ways. For a brief cleaning lightly beat them on a trash can.
For a more thorough cleaning using compressed air or rinse with warm water. In this case, DRY THEM
THOROUGHLY. Caution: Do not use detergent to clean the filters, the cyclone or the container. The filters
must be completely dry before being assembled again.
FLOOR BRUSH
The floor brush can be adjusted in two ways, depending on the type of floor to clean. The position are:
a) For carpets b) For floors
STORAGE Rewind the power cord by using the button (2) and place the floor brush into the proper
resting hook (6) placed on the back of the unit.
MAINTENANCE AND CLEANING
MAINTENANCE
Normally this vacuum cleaner is not very noisy. But when the dust bin is full the noise emitted changes and
the suction power decreases. To lengthen the life of the product, it is recommended to empty the dust bin
frequently. Even the filters, as mentioned previously, should be cleaned periodically. These filters can also be
damaged or depleted; in these cases they should be replaced with original new ones.
CLEANING
CAUTION: Before attempting any cleaning operation, ensure that the unit is turned off and the power
plug is disconnected from the main electrical outlet.
Clean the body of the unit with a damp non-abrasive cloth, avoid using detergents or abrasive cleaners. The
cloth should not be too wet, because if the water penetrates into the device, it can seriously damage the
appliance. To clean the filters and the dust bag, please follow the previous instructions.
TECHNICAL FEATURES
• Power supply: AC 220-240V~50-60Hz. Power 700W
• Suction power >17 Kpa
• Multi-Cyclonic system and HEPA filter
• Power cord length: 4.5 m
• Power cord rewinding system
• Accessories: hose, telescopic hose, floor brush, parquet brush, nozzle.
SPARE FILTERS: ask to your reseller the spare filter set, model GIRMI AP24
