16

Model: GVHC & F Installation

HOOD POWER

APPLIANCE POWER AND

CONTACTOR COIL SIGNAL

TO SHUNT TRIP DEVICE

G A1 A2 A3

L1 L2 L3

H

1

H

2

C

1

LN

C

2



AN

G





C

3

G













USE LIQUIDTIGHT

CONDUIT AND

FITTINGS WHEN

RECEPTACLE IS NOT

INSTALLED

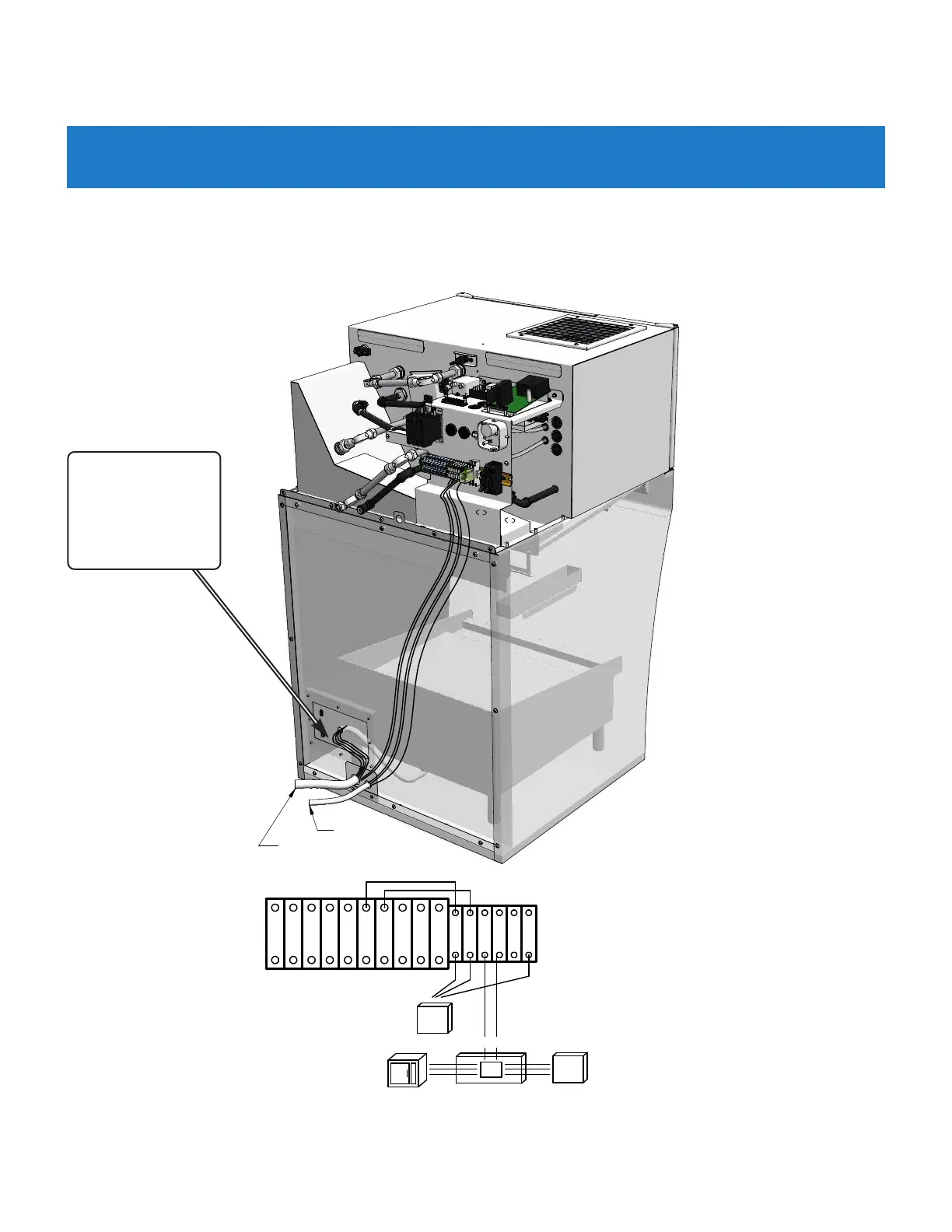

120V to 480V APPLIANCE POWER SEPARATE FROM 208240 V HOOD POWER (USING REMOTE SHUNT TRIP

CONTACTOR SUPPLIED BY LICENSED ELECTRICIAN). Contactor must be a UL Listed, definite purpose, AC resistive,

air heating type, suitable for the appliance load. The Installation and connections shall be in accordance with the

National Electric Code NFPA 70.

2.05.2.4 120 to 480V Appliance Power Separate Circuit from 208‐240V Hood

Power using Remote Shunt Trip Device
