17
Model: GVHC & FInstallation
GVH Ventless Hoods must be protected by the Ansul® R‐102 Restaurant Fire Suppression System in accordance
with the hood listing. Procurement, field installation & setup, charging, testing and certification of the system is
the sole responsibility of the purchaser (NOT included with hood). System must be provided and installed by an
authorized Ansul® Distributor/Dealer. The hood includes factoryinstalled piping, discharge nozzles, detector link
brackets, fusible link cable conduit and wire cable. Piping and conduit are stubbed at back of hood, ready for
connection.
1. Discharge Nozzles: Appliance, Ansul 1W flow ... Plenum: Ansul 1/2N flow. See Section 2.06.2, Fire
Extinguisher Nozzle Locations.
2. Detector links are appliance
specific & must be installed by
Ansul agent. See Section
2.06.1, Detector Link
Specification & Location.
3. The remote Manual Actuation
Device of the fire extinguishing
system shall be readily
accessible, in a path of egress
and shall be clearly identified.
The installation of the remote
Actuation Station shall comply
with applicable installation
standards and codes, and shall
be installed by an Ansul agent.
4. The Regulated Release
Assembly with a 3Gal
suppressant tank shall be the
mechanical type ... Ansul®
Automan #79290.
5. See Figure 2.06 for specific Fire
Suppression System
installation requirements.
6. The installation, use, and
maintenance of the GVH Hood
shall be in accordance with the
Standard for Ventilation
Control and Fire Protection of
Commercial Cooking
Operations, NFPA 96.

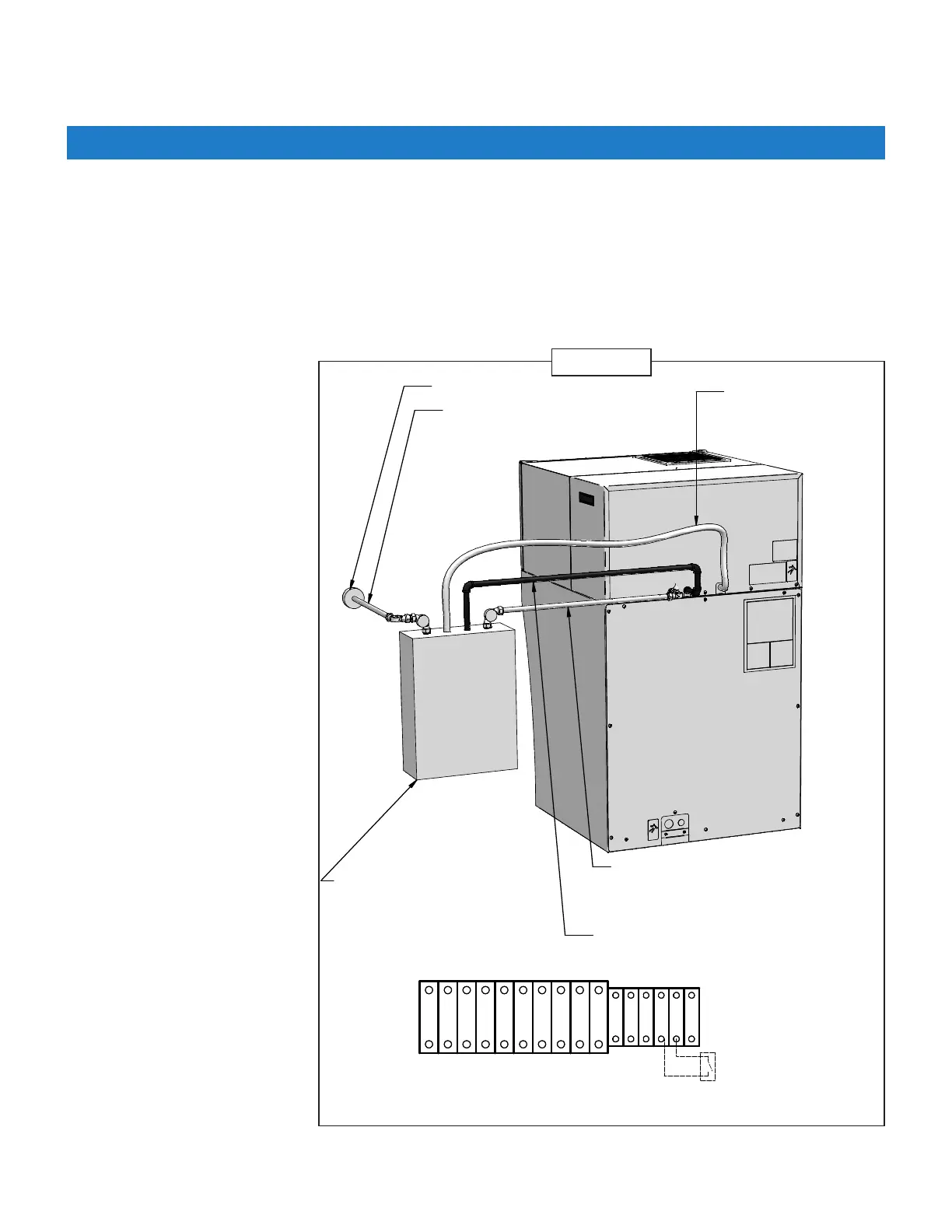

2.06 Fire Suppression System Installation
G A1 A2 A3
L1 L2 L3
H
1
H
2
C
1
LN
C
2
C
3
AN
G
G
AUTOMAN SWITCH
CONNECTION TO HOOD FOR
FIRE EXTING APPLIANCE
SHUT DOWN
TERMINAL BLOCK IN HOOD
%$#"! !#!#!#"
"!#!!!%
"!"$!#%!!$! !
!#
!#"!!!!
! $!"$!
!!#!!!!
! $!"$!
!$#!$$!$
! $!"$!
%$#"!$$!##!#%!##!#!#"
"!#!!#!!!%
"!"$!#%!!$!! !
$!"$!
%$#"!$$!##!#%!##!#!#"
"!#! !!!%
"!"$!#%!!$!#!
#!%#$!$
##! !!#
#!#"!
Figure 2.06
