Hood Operation
Free Standing Ventless Hood
FSH-2 & FSH-2A-99
4.03.3 E.A.C. Filter Status & Alarm
[ON] Indicates that the E.A.C. cell is installed, powered & operating properly. This will be the only light ON when the
system is operating normally.
[WASH] This light turns ON to indicate:
• Collector cell is not installed or is misaligned.
• Collection fins contain excessive amount of captured grease residue.
• There is poor cell contact with the electrical contacts inside hood.
• Too many Ionizer wires are missing from the cell.
When the [WASH] light is ON, an alarm condition exists & air cleaner is not functioning.
After approximately two (2) minutes, a beeping alarm tone begins sounding & shortly
thereafter, power to the fryer under the hood is shutdown ... the [FRYER POWER] light
turns OFF.
[WASH] light is NOT intented to be used as the signal for routine cell cleaning, DO NOT
use as such. Typically, the collector cell must be cleaned DAILY to ensure continued
optimum performance. See Section 5.01.2, EAC Filter Cell Cleaning.
[CHECK] This light turns ON to indicate:
• Ionizer wire is broken & touching cell frame.
• Cell is damaged & has shorted out to ground.
• Collection fins are shorted out due to excessive moisture.
When [CHECK] light is ON, system is no longer functioning to clean the air, even though the hood continues to
run & the fryer remains powered. DO NOT CONTINUE TO USE FRYER WHEN THIS CONDITION EXIST!
If none of the LED lights turn ON when hood is started, the system power supply may be faulty ... call for service.
The following actions may clear the alarm condition:
1. Turn OFF hood POWER switch.
2. Remove the E.A.C. cell & clean as described in Section 5.01.2.
3. Inspect the cell for broken or missing ionizer wires, bent fins, or other damage. Ionizer wires are replaceable (when
ordering replacements, note length ... 16” & 20” are available). Bent fins may be gently straightened by hand, so
that no fin is touching an adjacent fin. A cell with excessive damage (broken frame, badly bent frame, broken
insulators, etc) must be replaced.
4. Inspect the E.A.C. contacts inside hood. Clean grease accumulation away with a mild degreasing cleaner & dry
thoroughly.
5. Replace collector cell (Section 4.02.5) & restart hood (Section 4.01). If the condition persist, contact a factory
authorized service company.

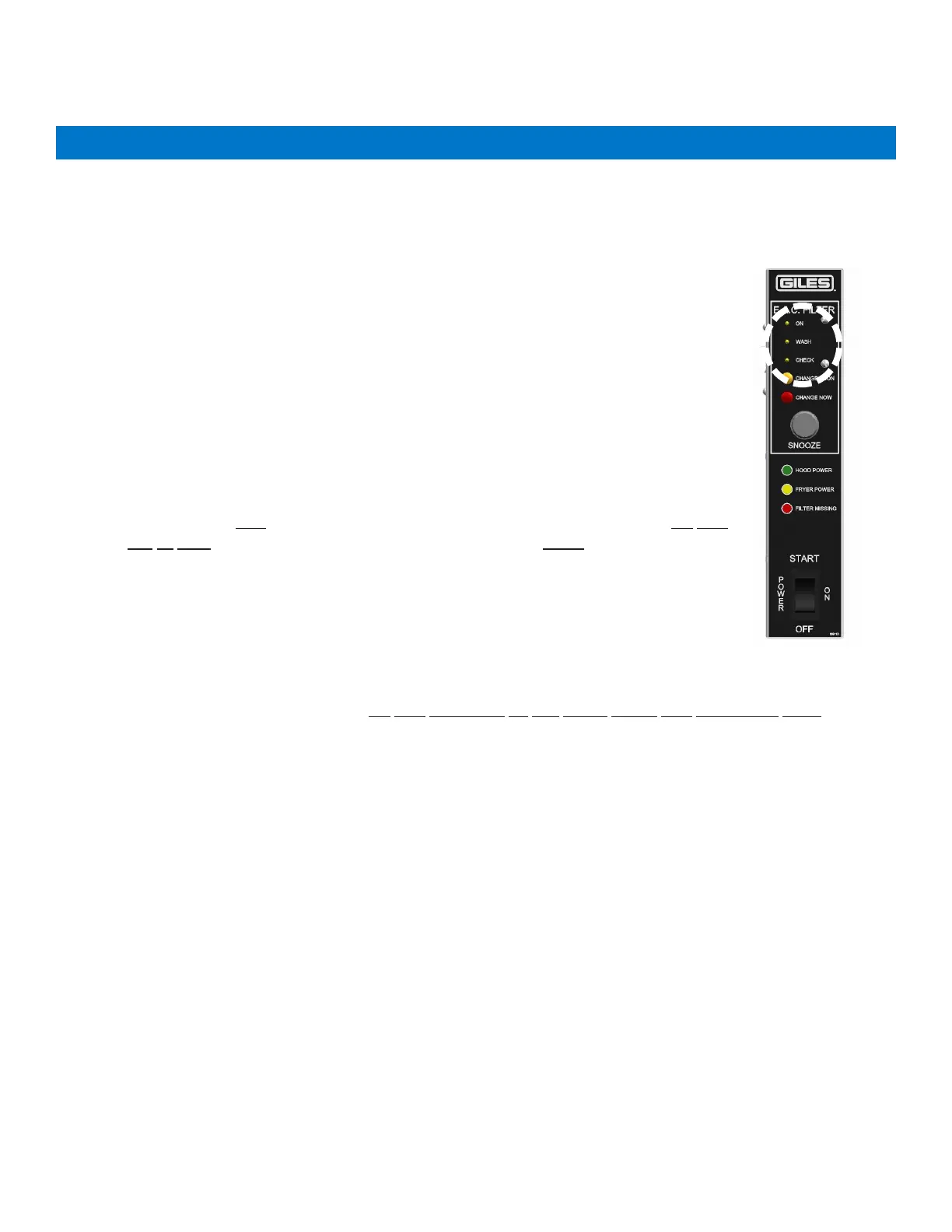

Three LED lights on the control panel indicate the operational status of the Electronic Air Cleaner (E.A.C.) system.
