Free Standing Ventless Hood
FSH-2 & FSH-2A-99
2.05 Fire Suppression System
The fire suppression system in Giles Ventless Hood is an ANSUL® R‐102 Restaurant Fire Suppression System (Standard
UL‐710B Listed). Final field set‐up, charging, certification & arming of the system must be performed by an authorized
Ansul® distributor/dealer in accordance with the system listing.
The fire suppression system is designed & ULlisted to provide fire protection for cooking appliances, such as fryers. It is
a mechanically activated system that automatically provides continuous protection. The factoryinstalled system includes
piping, nozzles (appliance & plenum), Automan release mechanism, detector link brackets, conduit for link cabling, exhaust
outlet fire damper and a 11/2 gal. stainless steel wet chemical tank.
.
Field setup by an Ansul agent includes, but may not be limited to, installation of proper fusible detector links & wire
cable, filling & installing the suppressant tank, installing a remote manual activation station, installing a compressed gas
discharge cartridge, testing, certifying & arming the system. Parts & labor necessary for the system field set‐up is the
sole responsibility of the customer ... not included with hood purchase.

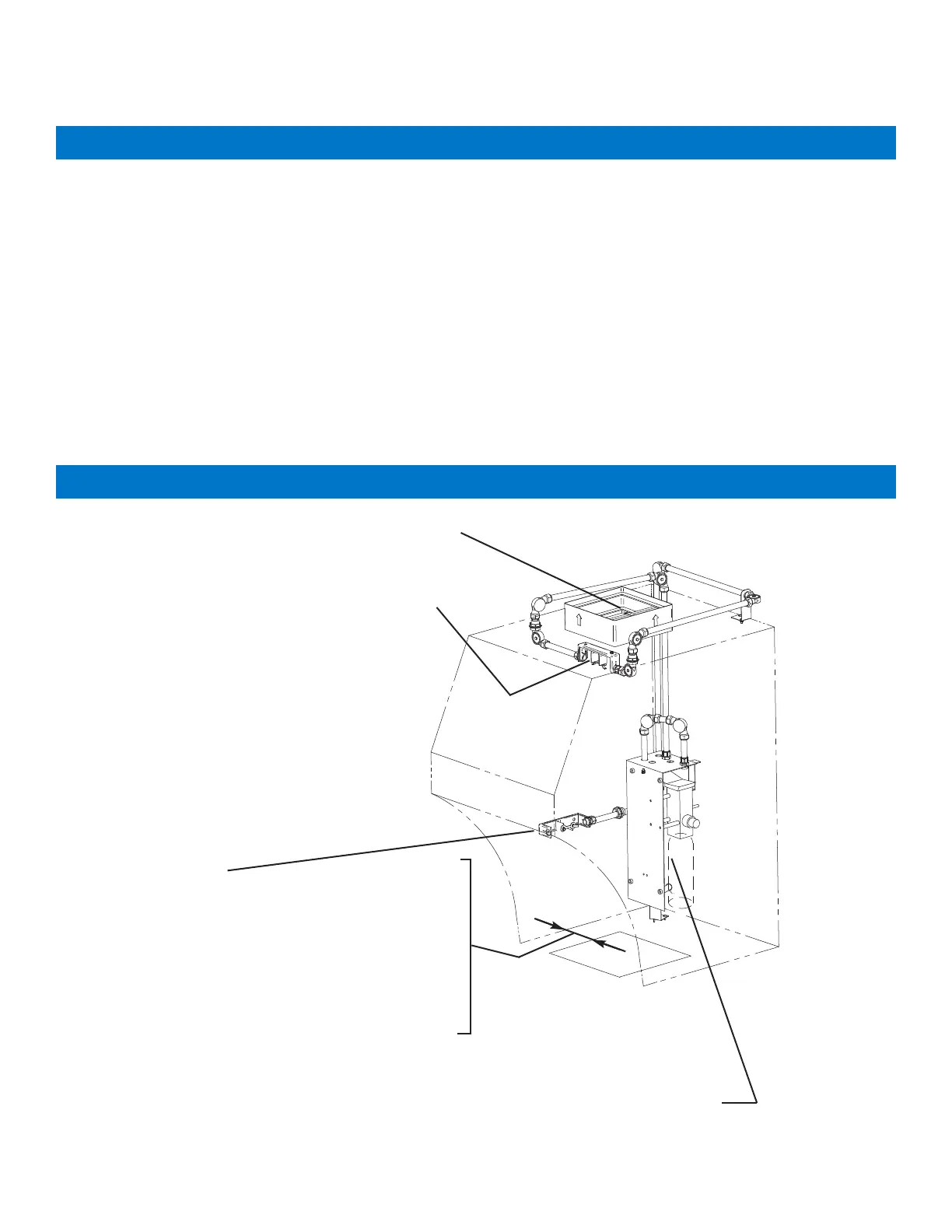

2.05.1 Detector Links & Gas Cartridge Location
Appliance Link:
If less than 3” [76.2] to edge of cooking surface
use 165°F link
supplied & installed by ANSUL
If more than or equal to 3” [76.2] to edge of
cooking surface use 135°F link
supplied & installed by ANSUL
Plenum Link 165°F
supplied & installed by ANSUL
Damper Link 285°F
factoryinstalled
LT20 R Cartridge
supplied & installed by Ansul
Appliance cooking surface
INCHES [mm]
Installation
15
