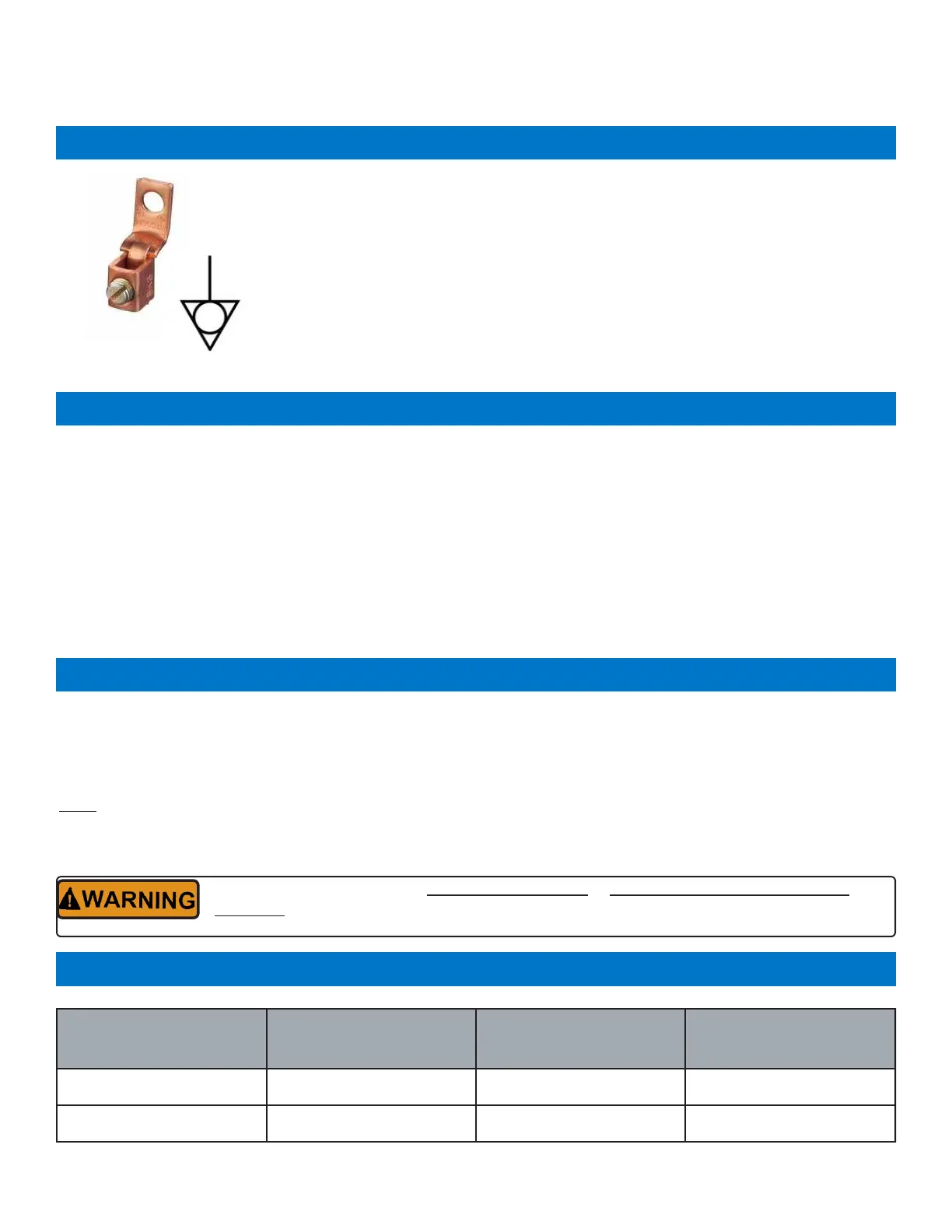

Installation
2.03.3 Equipotential Bonding
2.03.4 Fire Alarm Connection
2.04 Limitations & Clearances
2.04.1 Fryer Limitations
Free Standing Ventless Hood
FSH-2 & FSH-2A-99
An equipotential bonding lug is provided so that hood can be electrically bonded to
the equipment being operated under it and/or to other pieces of equipment being
operated in the same workspace. The purpose is to minimize the possibility of a
potential difference between two pieces of equipment that could result in electrical
shock or electrocution of persons who might possibly touch two pieces of equipment
at the same time.
Allows for connection of the fire suppression switch to the building fire alarm control system so that any activation of
the extinguishing system will activate the facility fire alarm.
1. Model FSH‐2 connection is made inside the tiein junction box on top of hood.
2. Model FSH‐2A‐99 connection is made at terminal blocks C2 & C3 located in the hood’s electrical component box
inside the upper rear panel.
3. Remove necessary cover or rear panel, make secure connection using wire nuts and replace covers.
These hoods can be used with ELECTRIC FRYERS ONLY ... USE WITH GAS FRYERS IS NOT AP‐
PROVED!! and can create an inhalation hazard due to carbon monoxide build‐up.
The following explains various limitations & required clearances for appliances to be placed underneath the hood.
FSH‐2 & FSH‐2A‐99 ventless recirculating hoods are only listed for use with electric fryers that comply with the follow
ing limitations.
ONLY electrically heated fryers may be used ... Gas heated or equipment not meeting the specifications below are
not approved.
Model Max. Fryer kW
Max. Shortening Capac-
ity lbs [kg]
Max Cooking Surface
sq in [sq m]
FSH2 20 110 [49.9] 380 [.25]
FSH2A99 20 110 [49.9] 380 [.25]
