Project Name/No:______________________ Item No: ________________
Quantity: _____ SIS#: _______________ AIA/CSI#: __________________
How To Specify
Specifications
Specify Electrical:
Choose from the following:
Opening
Designation
Width [X]
Opening
Designation
Width [X]
A 241/8 [613] E 155/8 [397]
B 201/8 [511] F 151/8 [384]
C 185/8 [473] G 141/8 [359]
D 161/8 [410] H 101/8 [257]
Construction: 16, 18 & 20ga. stainless steel & aluminized steel where applicable
Dimensions:
Width Depth
Height
2713/16” [706 mm] 3015/16” [786 mm] 857/16” [2170 mm]
Electrical Specifications: (Hood Only)
Voltage Phase Amps
208240 1 or 3 5
▪ Power cord NOT provided; field wiring required.
Ventless Hood:
▪ Exhaust: 510 680 CFM ▪ Approx. Sound Level: 65 dB
Shipping Specifications:
Width Length Height Cube Crated Weight
46” [1168 mm] 35” [1067 mm] 96” [2438 mm] 89.4 cu ft [2.53 cu m] 425 lbs [193 kg]
Voltage Hz Ph
208240 60 1
208240 60 3
Qty Description Part No.
Baffle Filter 42300
E.A.C. Collector Cell 20520
Charcoal Filter 30248
Foaming Spray EAC Cleaner
(12ct Case, 20oz Cans)
41510
Shipping − Specify shipping method
Extra Accessories (sold separately):
❶
❷
❸
Specify Appliance Opening [X]:
Oversize 1/8˜ to 1/4˜ [3.2 mm − 6.4 mm] for sufficient clearance.
❹
Giles reserves the right to change specifications and/or product design without notice.
Such revisions do not entitle the buyer to corresponding changes, improvements,
additions or replacement with respect to previously purchased equipment.
Printed in USA, Form 60656 (Rel. Date: Feb.2000; Rev. Date: Aug.2020, Rev. I)
2750 Gunter Park Drive West • Montgomery, AL 36109 USA
334.272.1457 • Toll Free: 800.554.4537
X
Accessory Items Included: Baffle Filter • EAC Collector Cell • Charcoal Filter • (1) Can, Spray Foam EAC Cell Cleaner (sample)
• Purchaser must obtain, complete and submit the Hood Approval Letter (HAL) to Giles for approval. By signing the HAL, purchaser affirms that
the intended installation site has been assessed and is compliant with the minimum requirements, stated therein ... kitchen size, ceiling height,
fresh outside air supply, room air exchange rate, exhaust ventilation, clearances, etc.
• Verify that fryer to be used is within limits shown on first page ... contact factory to resolve any questions.
• Does available electrical power meet the hood specifications?
IMPORTANT! Before Ordering
3‐ph unit includes built‐in NEMA 15‐60R
appliance power receptacle ... 50A max.
Ventless Hood

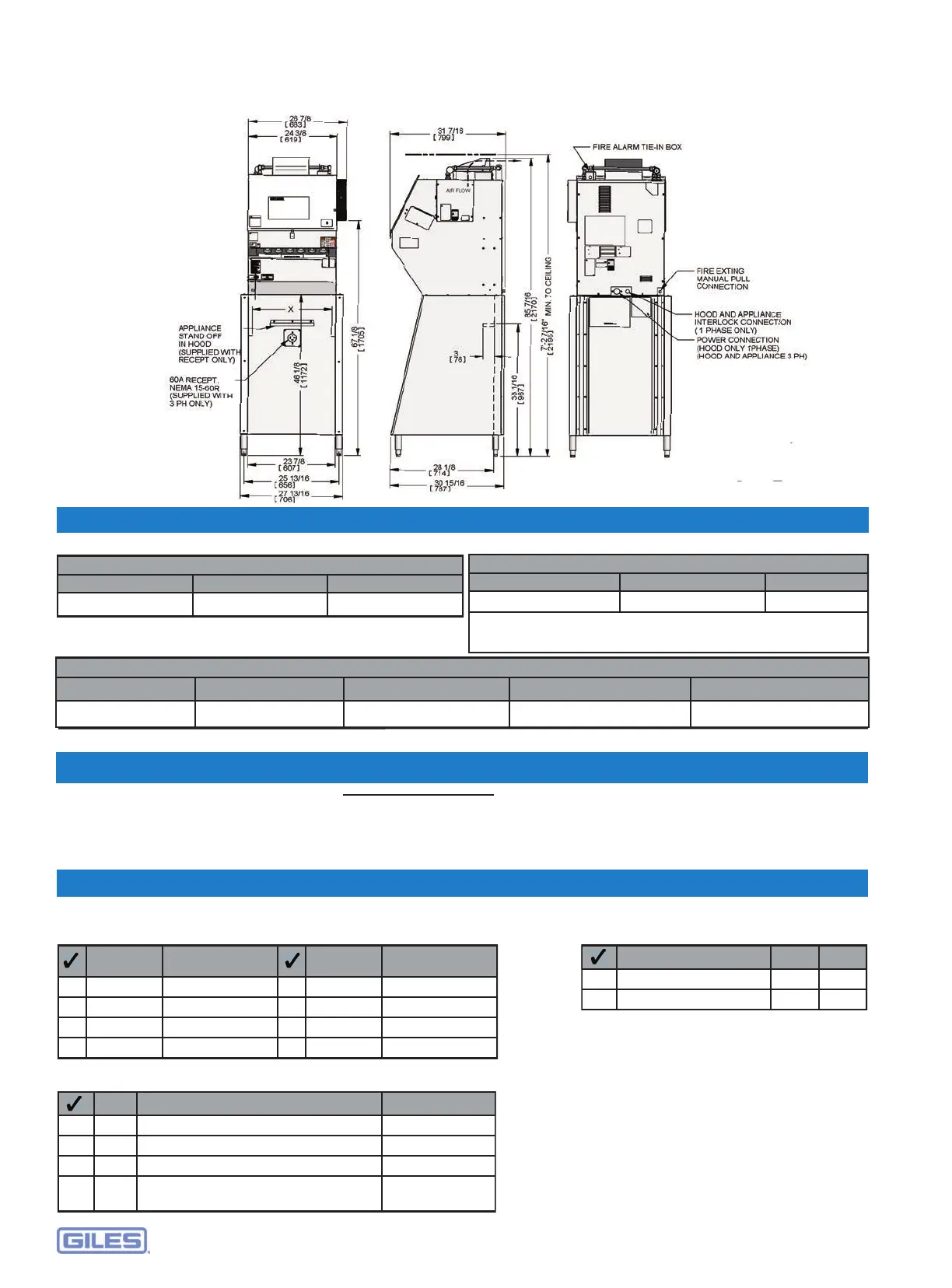

Model FSH−2
Inches [mm]
