- 17 -

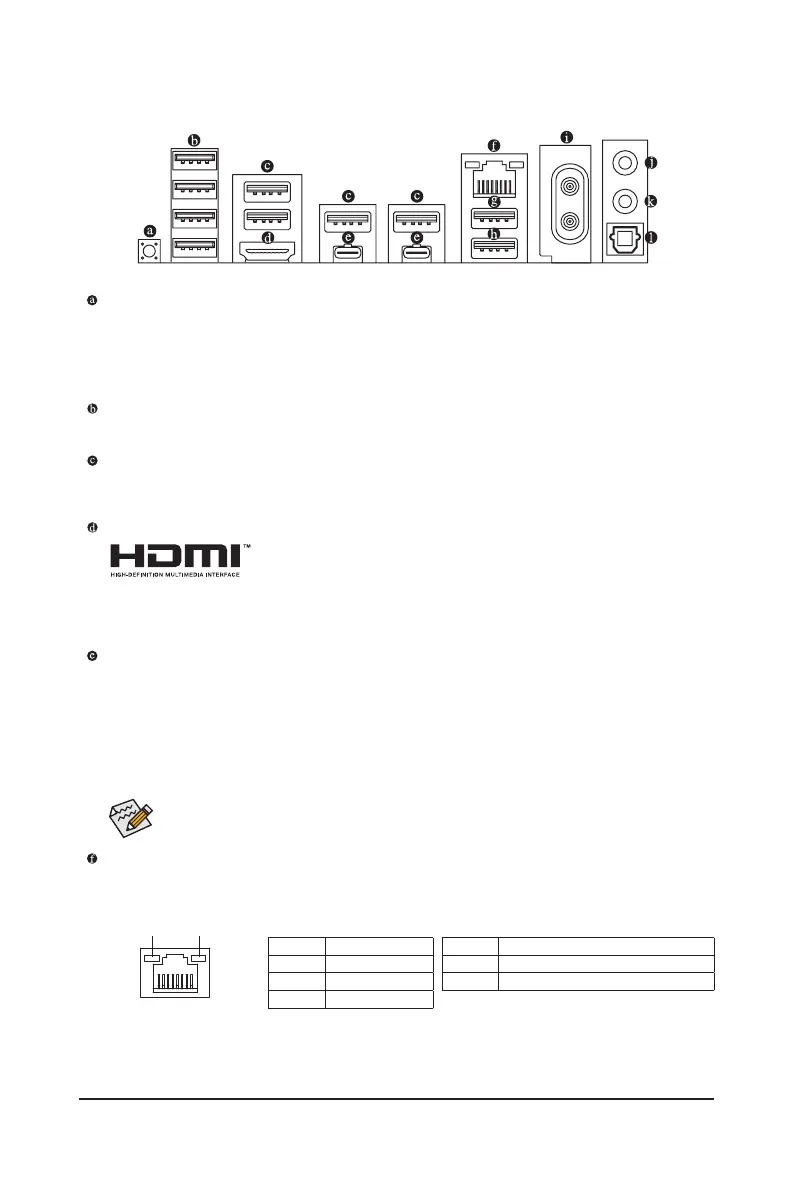

2-6 Back Panel Connectors

Activity LEDSpeed LED

LAN Port

Speed LED:

State Description

Orange 2.5 Gbps data rate

Green 1 Gbps data rate

Off 100 Mbps data rate

Activity LED:

State Description

Blinking Data transmission or receiving is occurring

Off No data transmission or receiving is occurring

Q-Flash Plus Button

(Note 1)

Q-Flash Plus allows you to update the BIOS when your system is off (S5 shutdown state). Save the latest

BIOS on a USB thumb drive and plug it into the dedicated port, and then you can now ash the BIOS

automatically by simply pressing the Q-Flash Plus button. The QFLED will ash when the BIOS matching

and ashing activities start and will stop ashing when the main BIOS ashing is complete.

USB 2.0/1.1 Port

The USB port supports the USB 2.0/1.1 specication. Use this port for USB devices.

USB 3.2 Gen 1 Port

The USB 3.2 Gen 1 port supports the USB 3.2 Gen 1 specication and is compatible to the USB 2.0

specication. Use this port for USB devices.

HDMI Port

(Note 2)

The HDMI port is HDCP 2.3 compliant and supports Dolby TrueHD and DTS

HD Master Audio formats. It also supports up to 192KHz/24bit 7.1-channel

LPCM audio output. You can use this port to connect your HDMI-supported monitor. The maximum

supported resolution is 4096x2160@60 Hz, but the actual resolutions supported are dependent on the

monitor being used.

USB4

USB Type-C

port (DisplayPort

(Note 2)

)

This port supports standard USB4

USB Type-C

and DisplayPort display output. You can connect a USB4

USB Type-C

monitor to this port or use an adapter cable to connect a standard DisplayPort monitor. The

maximum supported resolution is 3840x2160@240 Hz when using a DisplayPort monitor, but the actual

resolutions supported are dependent on the monitor being used. Also, the connector is reversible and

supports the USB4

specication and is compatible to the USB 3.2 Gen 2x2, USB 3.2 Gen 2, USB 3.2

Gen 1, and USB 2.0 specications. You can use this port for USB devices, too.

RJ-45 LAN Port

The Gigabit Ethernet LAN port provides Internet connection at up to 2.5 Gbps data rate. The following

describes the states of the LAN port LEDs.

After installing the HDMI/DisplayPort device, make sure to set the default sound playback device

to HDMI/DisplayPort. (The item name may differ depending on your operating system.)

(Note 1) To enable the Q-Flash Plus function, please navigate to the "Unique Features" page of GIGABYTE's

website for more information.

(Note 2) Actual support may vary by CPU.
