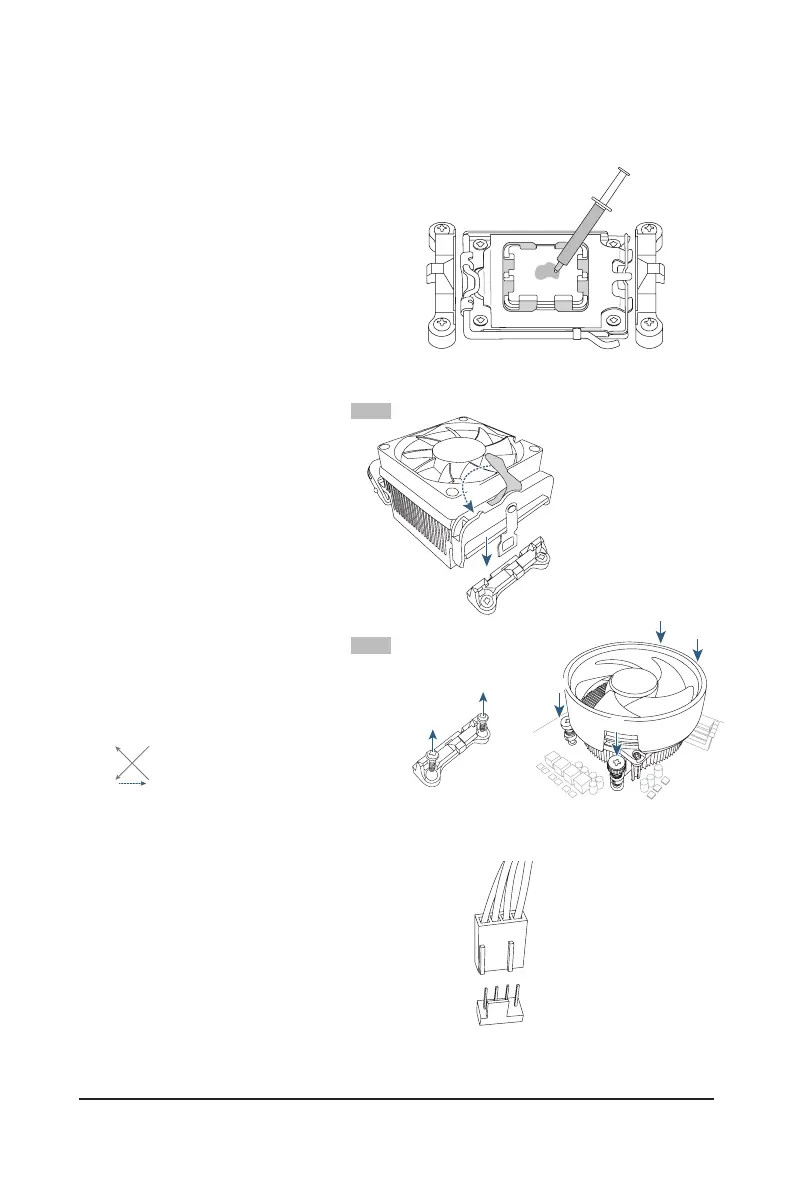

C. Installing the CPU Cooler

Be sure to install the CPU cooler after installing the CPU. (Actual installation process may differ depending the

CPU cooler to be used. Refer to the user's manual for your CPU cooler.)

u

v

Apply an even and thin layer of thermal

grease on the surface of the installed CPU.

Type A:

Hook the CPU cooler clip to the mounting

lug on one side of the retention frame. On

the other side, push straight down on the

CPU cooler clip to hook it to the mounting

lug on the retention frame. Turn the cam

handle from the left side to the right side to

lock into place.

Type B:

First remove the four screws from the

CPU retention frame and remove the CPU

retention frame. Then align the four shoulder

screws on the CPU cooler with the standoffs

from the back plate. Fasten each shoulder

screw in a 1-2-3-4 (x) pattern as shown

on the right.

w

Finally, attach the power connector of

the CPU cooler to the CPU fan header

(CPU_FAN) on the motherboard.

41

23

CPU_FAN

41

23

41

23

u

Type B

41

23

j

l

v

kk

mm

41

23

j

kk

* When using a Type B CPU cooler, it is not

recommended to fasten each screw down all the

way in one step. Follow order 1-2-3-4, fasten screw

clockwise 1 rotation per step. Repeat steps 1-2-3-4

till all screws are fastened.

41

23

Type A
