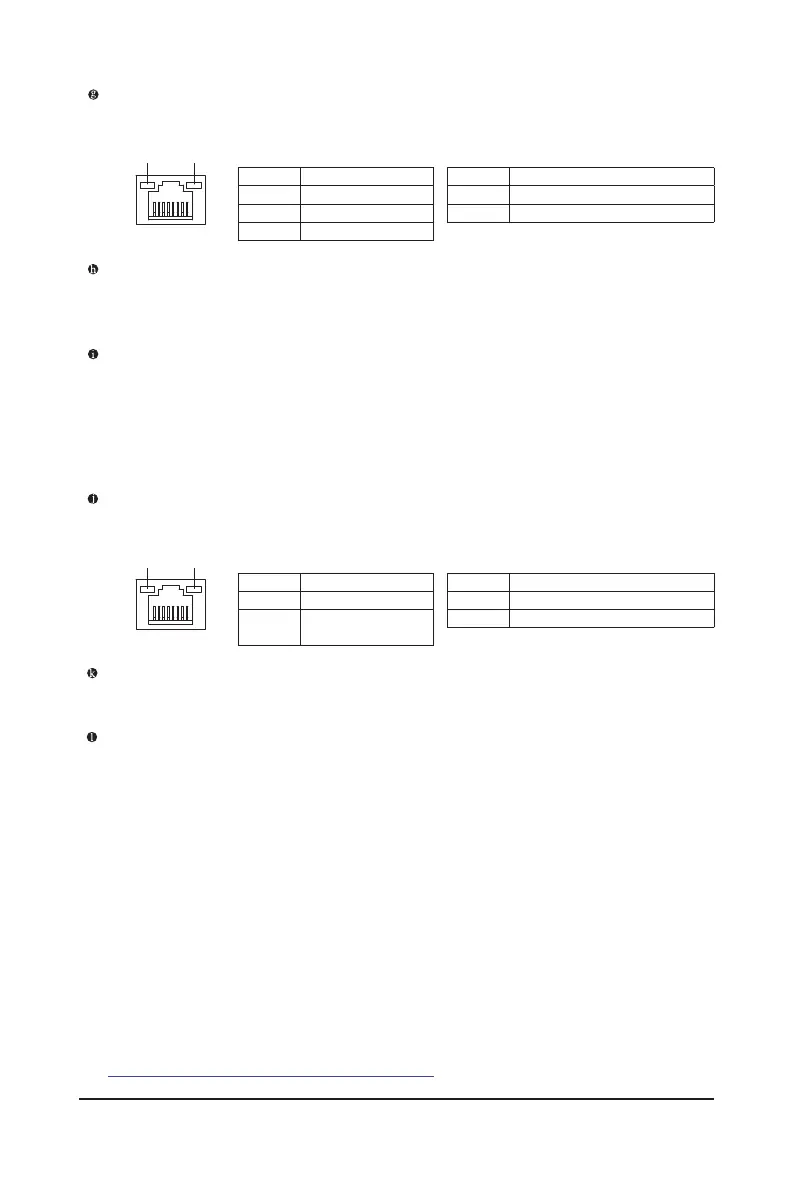

RJ-45 LAN Port (LAN)
The Gigabit Ethernet LAN port provides Internet connection at up to 2.5 Gbps data rate. The following
describes the states of the LAN port LEDs.
Activity LED
Speed LED
LAN Port
Speed LED:
State Description
Orange 2.5 Gbps data rate
Green 1 Gbps data rate
Off 100 Mbps data rate
Activity LED:
State Description
Blinking Data transmission or receiving is occurring
Off No data transmission or receiving is occurring
USB 3.2 Gen 2 Type-A Port (Red) (Q-Flash Plus Port)
The USB 3.2 Gen 2 port supports the USB 3.2 Gen 2 specication and is compatible to the USB 3.2 Gen 1
and USB 2.0 specication. Use this port for USB devices. Before using Q-Flash Plus
(Note)
, make sure to insert
the USB ash drive into this port rst.
USB4
®
USB Type-C
®
Port (DisplayPort)
This port has display and data transmission capabilities. This port supports standard USB4
®
USB Type-C
®
and DisplayPort display output. You can connect a USB Type-C
®
monitor to this port or use an adapter cable
to connect a standard DisplayPort monitor. When connecting a DisplayPort monitor, the actual supported
resolution may vary depending on the external graphics card and the monitor you are using. Also, the
connector is reversible and supports the USB4
®
specication and is compatible to the USB 3.2 Gen 2,
USB 3.2 Gen 1, and USB 2.0 specications. You can use this port for USB devices, too.
RJ-45 LAN Port (LAN1)
The Gigabit Ethernet LAN port provides Internet connection at up to 10 Gbps data rate. The following
describes the states of the LAN port LEDs.
Speed LED Activity LED
LAN Port
Speed LED:
State Description
Green 10 Gbps data rate
Orange 5 Gbps/2.5 Gbps/1 Gbps/
100 Mbps data rate
Activity LED:
State Description
Blinking
Data transmission or receiving is occurring
On
No data transmission or receiving is occurring
USB4
®
USB Type-C
®
Port
The USB4
®
port supports the USB4
®
specication and is compatible to the USB 3.2 Gen 2, USB 3.2 Gen 1,
and USB 2.0 specications. Use this port for USB devices.
USB 3.2 Gen 1 Port
The USB 3.2 Gen 1 port supports the USB 3.2 Gen 1 specication and is compatible to the USB 2.0
specication. Use this port for USB devices.
& Please visit GIGABYTE's website for details on conguring the audio software.
https://www.gigabyte.com/WebPage/699/realtek4080-audio.html
(Note) To enable the Q-Flash Plus function, please navigate to the "Unique Features" page of GIGABYTE's
website for more information.
- 16 -
