5）CONNECTION NOTES
Avoid connecting the generator to commercial power outlet.
Avoid connecting the generator in parallel with any other generator.

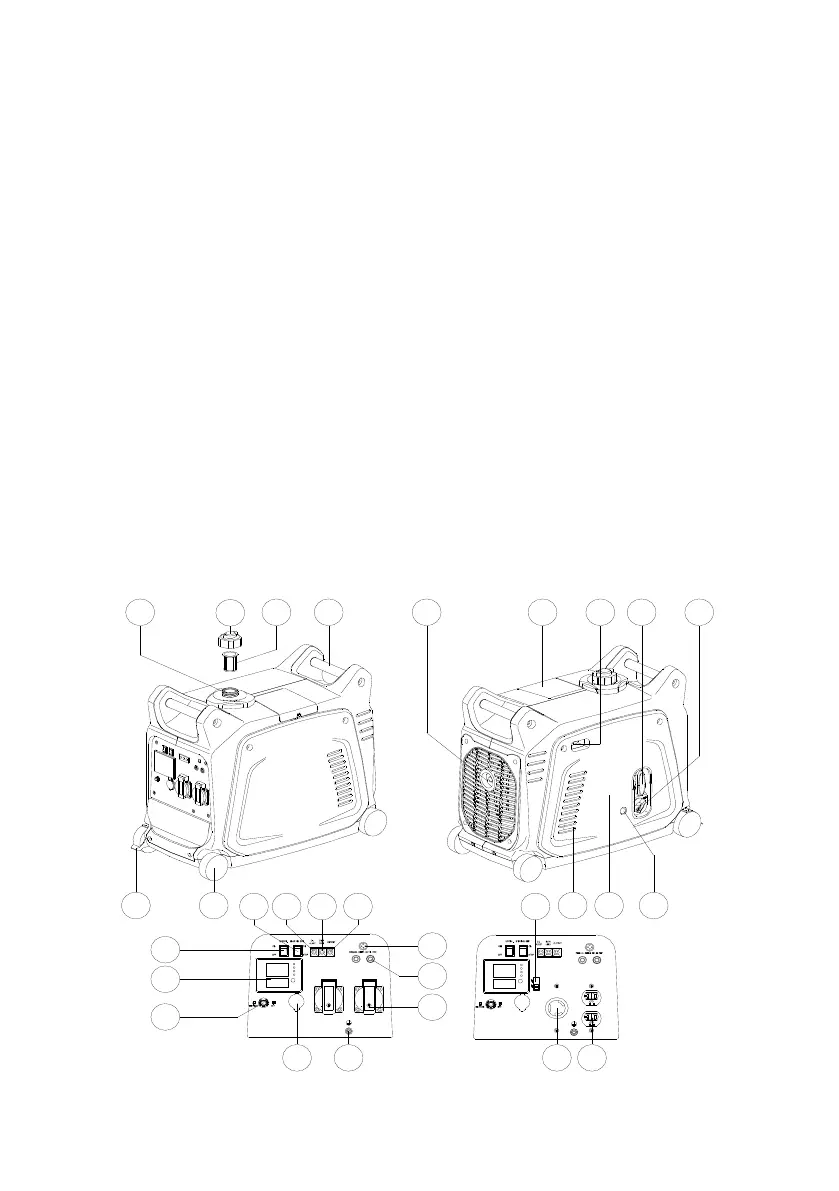

2．CONTROL FUNCTION
DESCRIPTION
(1) Fuel tank
(2) Fuel tank cap
(3) Fuel filter
(4) Carrying handle
(5) Muffler
(6) Spark plug
(7) Choke lever
(8) Recoil starter
(9) Fuel cock
(10) Brake lever
(11) Wheel
(12) Oil filler cap
(13) Air filter
(14) Fuel pump
(15) Engine switch
(16) AC pilot light
(17) Overload indicator light
(18) Oil warning light
(19) Economy control switch
(20) Voltmeter
(21) DC protector
(22) DC receptacle
(23) Ground (earth) terminal
(24) AC receptacle
(25) AC receptacle L5-30R
(26) AC receptacle 5-20R
(27)
Parallel connection control socket
(28) Parallel connection socket
(29)
Frequency Transfer Switch
DC PROTECTOR DC12V 5A
AC 230VAC 230V
DC PROTECTOR DC12V 5A
AC 120V AC 120V
-
3
0
L
5
0
3
V
5
2
1
A
R
1 2 3
4 5
6
7
8 9
10 11 16 17 18 12 13 14
19
20
21
24
22 23 25 26
27
28
50 Hz 60
29
V
A
KW
HZ
MODE
V
A
KW
HZ
MODE
15
