ENGLISH

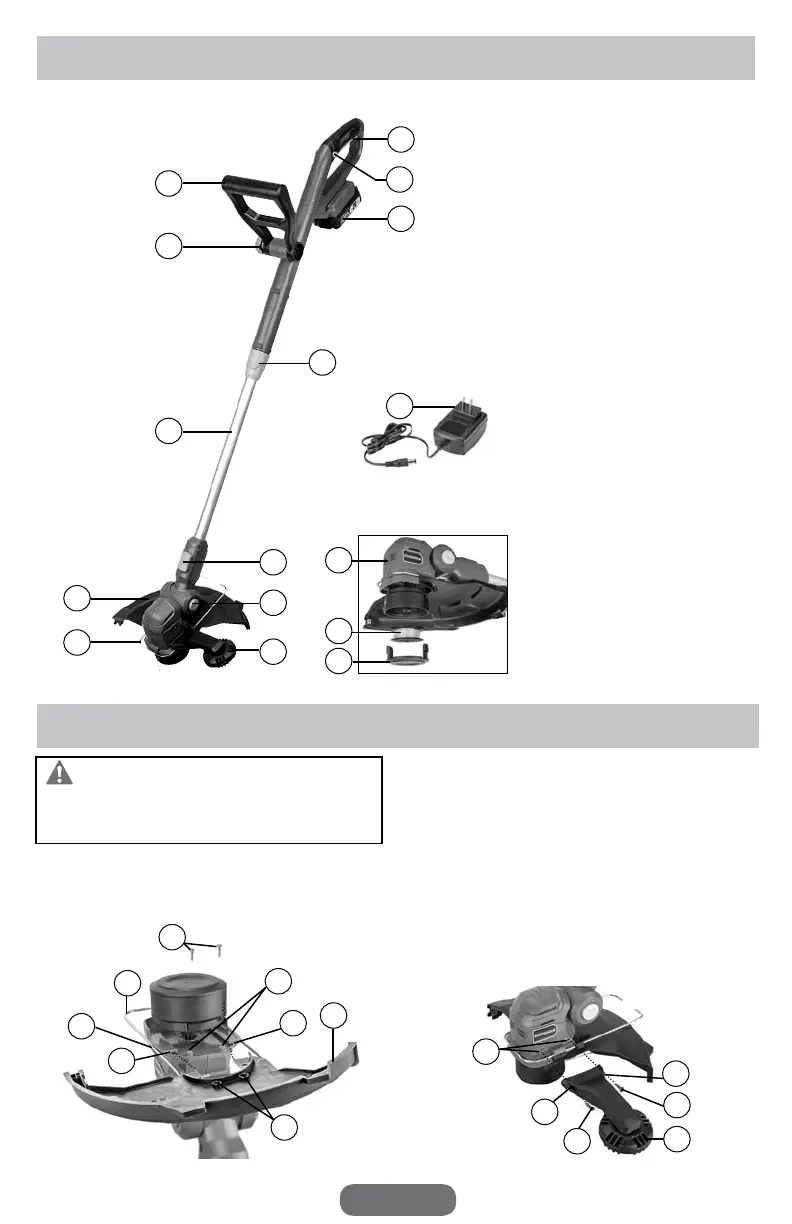

PrODUCT OVErVIEW
aSSEMBLY aND aDJUSTMENTS
WarNING: Always be sure that the
product is switched off and the battery is disconnected
before adjusting, adding accessories, or checking a
function on the product.
INSTALLING WIRE GUARD AND
SAFETY GUARD (FIG 2)
1.
Install the wire guard (13) through the grooves (G1) on
both sides of the motor head as shown in FIG 2. Make
sure the wire guard snugly fits into grooves.
2.
Slide the safety guard through the grooves (G2) on the
motor head as far as it can go. Align the screw holes
(S2) on the safety guard with screw holes (S3) on the
motor head.
3.
Tighten two screws (S1) through screw holes (S2, S3) to
secure the safety guard.
INSTALLING EDGER SUPPORT
WHEEL (FIG 3)
1. Trigger Switch
2. Lock-Off Switch
3. Auxiliary Handle
4. Auxiliary Handle Locking Knob
5. Battery Pack
6. Telescoping Shaft Coupler
7. Shaft
8. Head Rotation Locking Button
9. Head Tilting Locking Button
10. Safety Guard
11. Charger
12. Motor Head
13. Wire Guard
14. Edger Support Wheel
15. Spool
16. Spool Cap
16
15
14
5
9
10
6
7
8
4
3
1
2
12
13
11
FIG 1
10
13
S1
S2
S3
G1
G2
FIG 2
G2
FIG 3
S4
S3
S3
14
S5
S4
