Genelec Loudspeaker Manager (GLM) 2.0 - System Operating Manual page 9 of 52

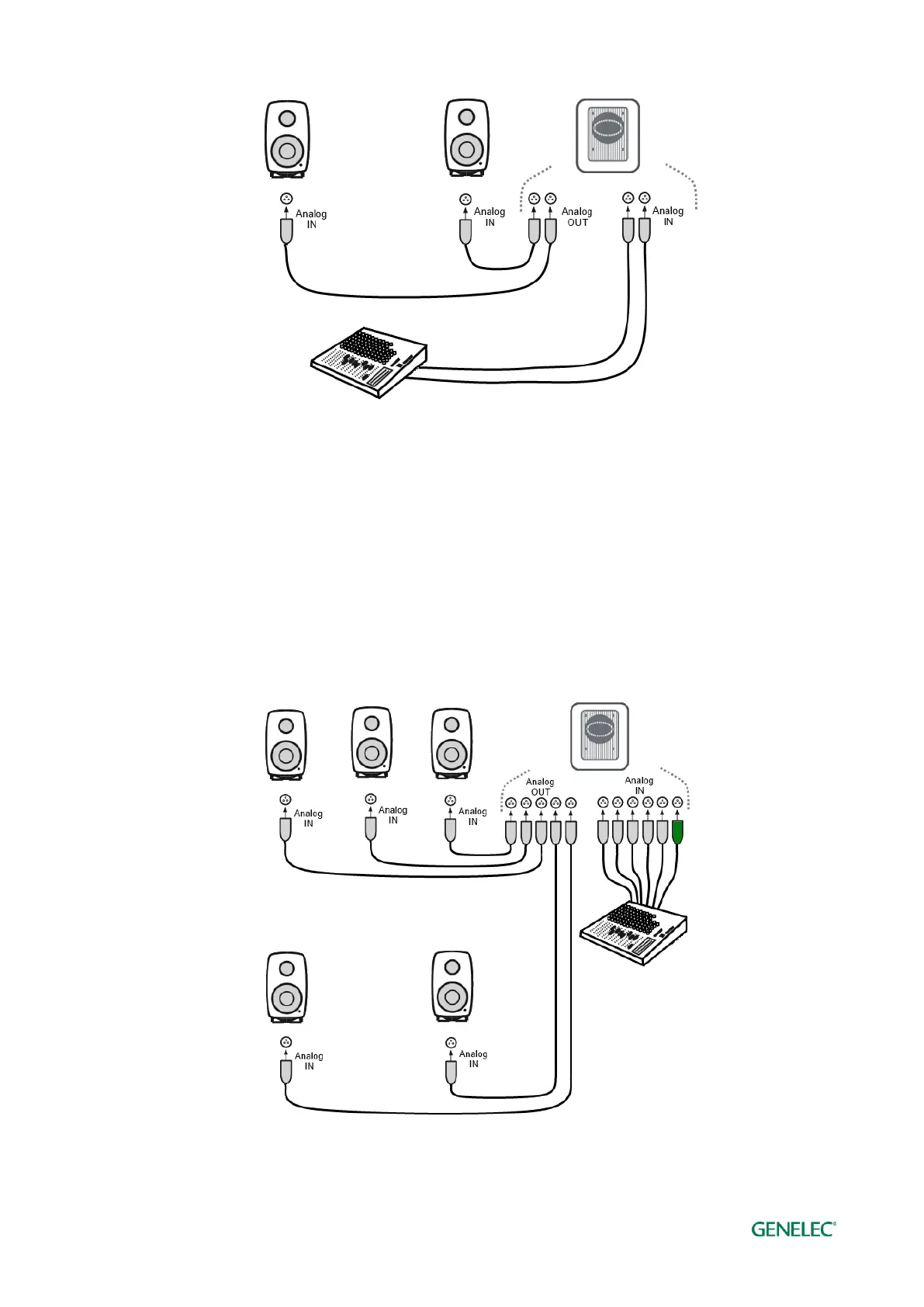

Figure 3. Analog stereo cabling with a subwoofer

Analog 5.1 Surround Example

Before cabling, turn off the power in all monitors and subwoofers.

 connect an audio cable from the audio source to the subwoofer ANALOG IN 1

 continue from the subwoofer ANALOG OUT 1 to the monitor ANALOG IN

 continue connecting all remaining audio input cables to the subwoofer inputs ANALOG IN 2

through to ANALOG IN 5, and from the respective analog outputs to the relevant monitors

 finally, connect the LFE channel from the audio source to the subwoofer LFE IN

Figure 4. An example of analog 5.1 system cabling
