63
Creating Video Walls
The web interface 4K Ultra HD HDMI & USB-C KVM over IP allows the creation of video
walls up to 16 horizontal and 16 vertical displays. Video walls may contain any number or
rows and columns and any combination of these can be enabled, as necesary.
Wall Size and Layout
1. Access the Web interface for the Receiver unit.
2. Log in as “Administrator” or “User.”
3. Make sure that the Enable Video Wall option is enabled under the Functions tab of
the Sender unit, then click the Video Wall tab.

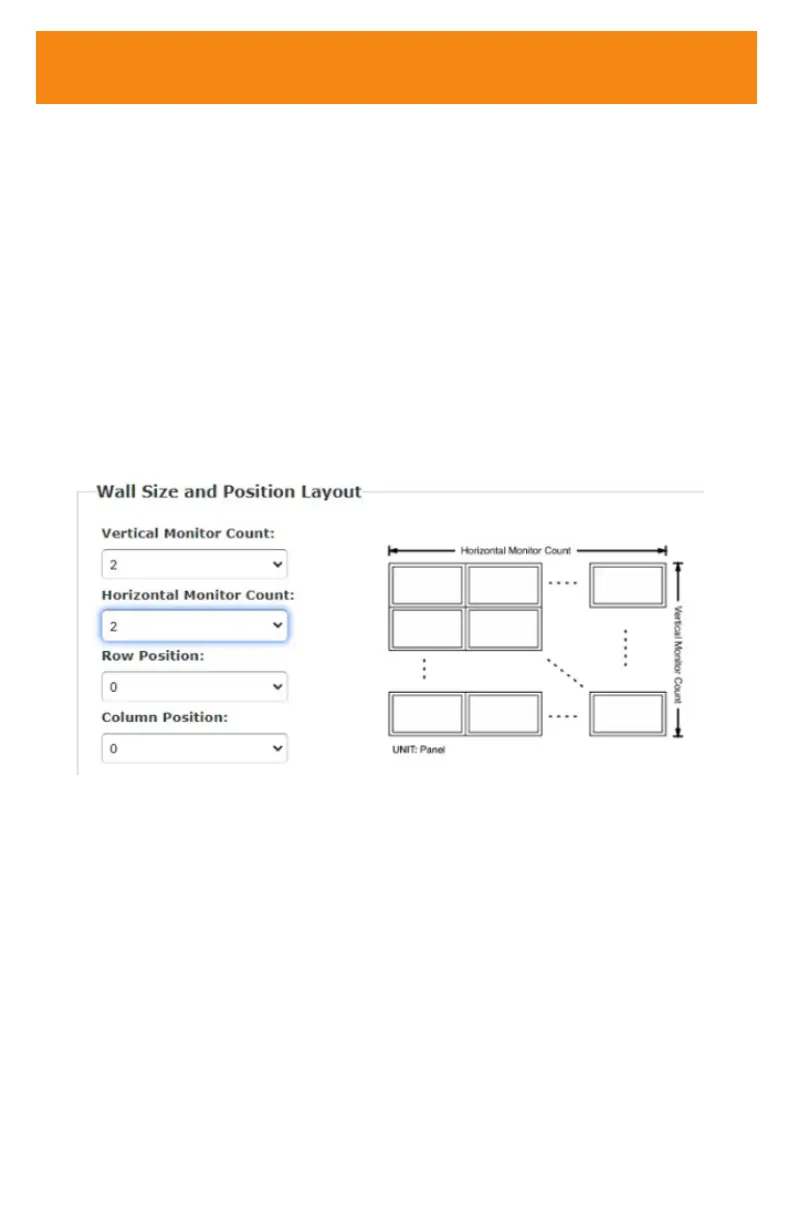

4. Under the Wall Size and Position Layout window group, click the drop-down
lists for the Vertical Monitor Count and Horizontal Monitor Count and select the
number of rows and columns of displays.
5. Select the row and column positions using the Row Position and Column Position
drop-down lists.
6. Click the drop-down list next to the Apply button to select the desired host or client
to which these settings will be applied.
If the All option is selected, then all parameters will be transferred to all Receiver
units. For monitor count and bezel compensation in a video wall array of matching
displays, this is ne, but the row and position will also be copied. There is an option
for “This” unit that will apply to the current unit being interfaced with. The “This”
option can be used to precisely set the proper position of each unit but would require
the user to access the web interface of each unit to set. Alternatively, the drop-down
will provide a list of all connected host (Sender units) and clients (Receiver units).
This process allows the conguration of an entire video wall from a single unit.
Creating Video Walls
