Audio Return Routing
This setup allows audio from a 4K UHD display to be routed back to an AVR or audio
system using Gen3 AVoIP hardware. The setup also enables the audio return path from
any display to be routed over the AVoIP network and output at a remote location.
See the AR command on page 128 to congure the Audio Return routing for the Sender
unit. We recommend using Gefen’s GF-AVIP-MC to manage the Audio Return Routing.
Set Up Audio Return Routing
1. Connect a TOSLINK cable from a 4K UHD display digital optical audio output to the
Opt In port on the Receiver unit.
2. Connect an AVR receiver (or another audio output device) to the Opt Out port on the
Sender unit.

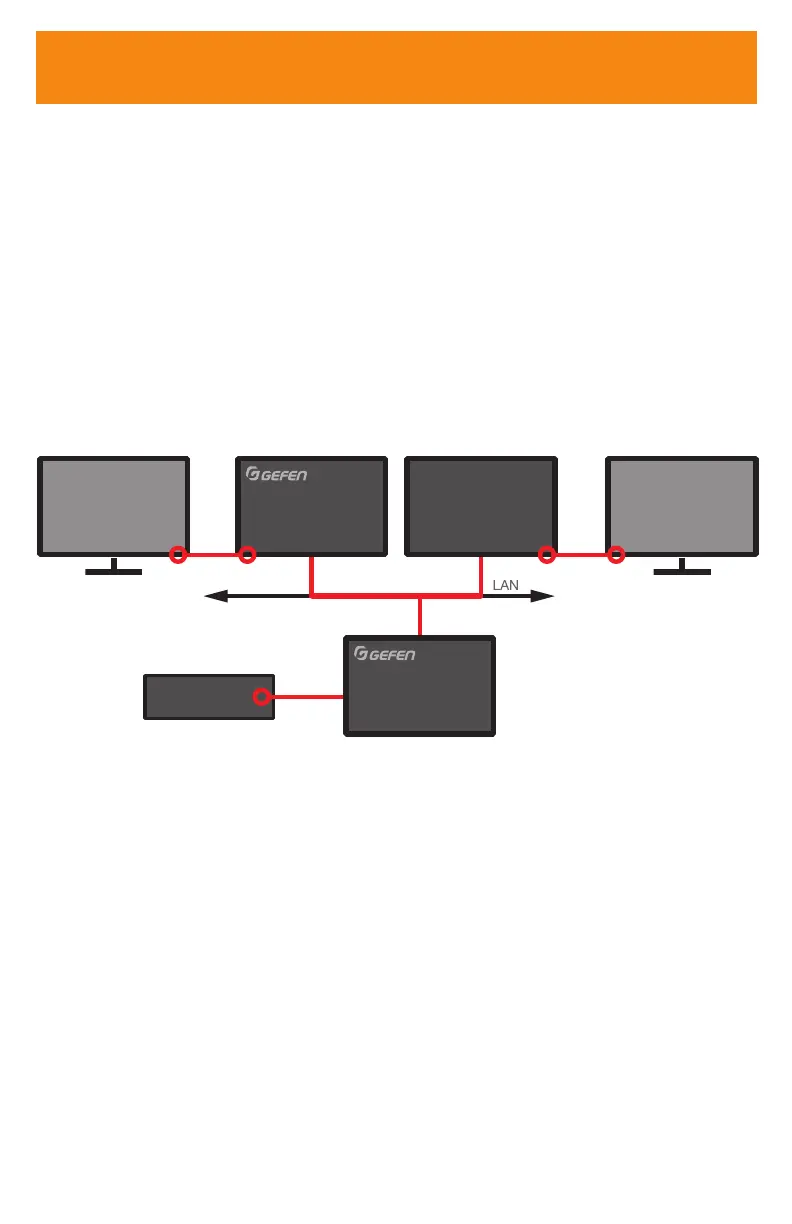

OPT OUT
OPT OUT
OPT IN OPT OUTOPT IN
HD Display Receiver Unit
Sender Unit
AVR
HD DisplayReceiver Unit
Audio Connections
