Page Title
page | 5
Getting Started
Installation
Connecting the Booster for HDMI with EDID Detective
1. Connect the included locking HDMI cable from the Hi-Def source to the HDMI In
port on the booster.
2. Use another locking HDMI cable to connect the display (or other sink) to the
HDMI Out port on the booster.
3. Connect the included 5V DC power supply to the power receptacle on the booster.
4. Connect the power supply to an available electrical outlet.

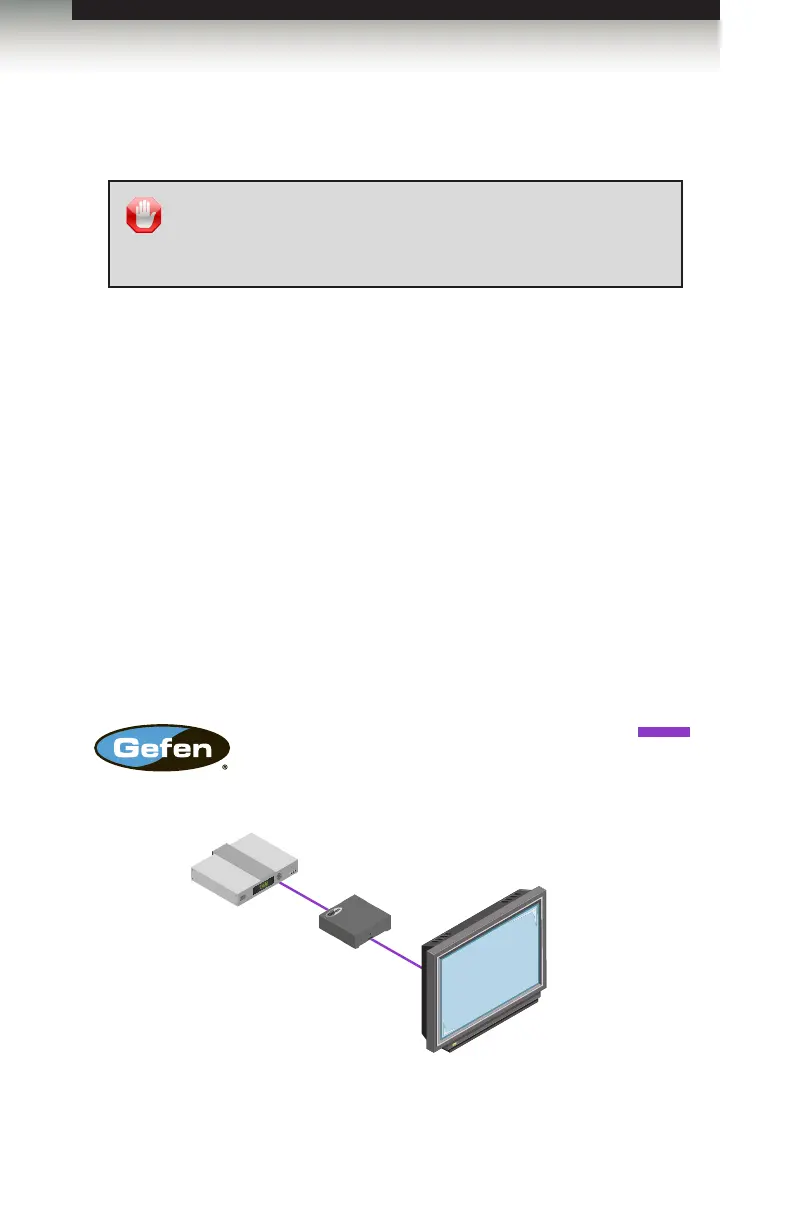

Sample Wiring Diagram
STOP: Before connecting the Booster for HDMI with EDID
Detective, the unit must be programmed with an EDID.
See EDID Programming for instructions on EDID programming
before continuing.
EXT-HDBOOST-141
Ultra HD Source
Ultra HD Display
Booster for HDMI w/ EDID Detective
HDMI CABLE
