STEP 5
INSTALL BLOWER MOTOR ASSEMBLY - UVC-9420 AND 9480
METHOD 1
1. Lift the motor assembly on the insert canopy.
2. Insert the blower motor assembly tabs in the
hood slots and slide it, making sure the 4 tabs are
engaged.
3. Tighten the 4 screws (removed earlier) - see
Remove Motor Assembly from Hood Canopy
section. Make sure the blower motor is secured
firmly to the hood canopy.
4. Reconnect the 4 cables of the motor to the ones
on the hood side and insert them into the protected
area under the control panel.
5. Mount the metal lid and tighten the 3 screws to
secure the lid on the hood body.

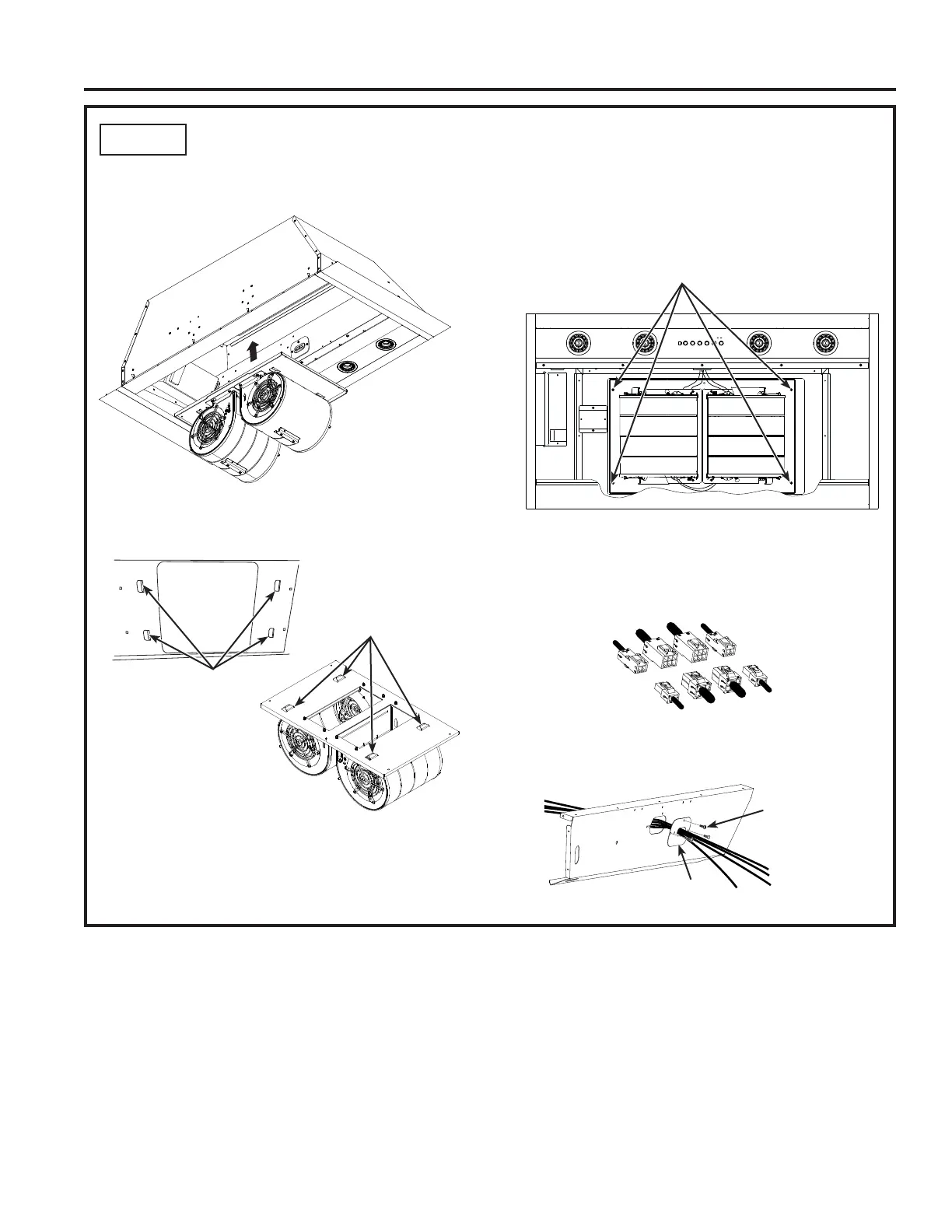

Installation - UVC 9420 and 9480
Slots on Hood
Mounting Tabs
Screws
Metal Lid
Screws
Connectors on
Hood Side
Connectors on
Motor Side
INSTALLATION
