49-2000930 Rev. 1 13
Installation Preparation - UVC 9480

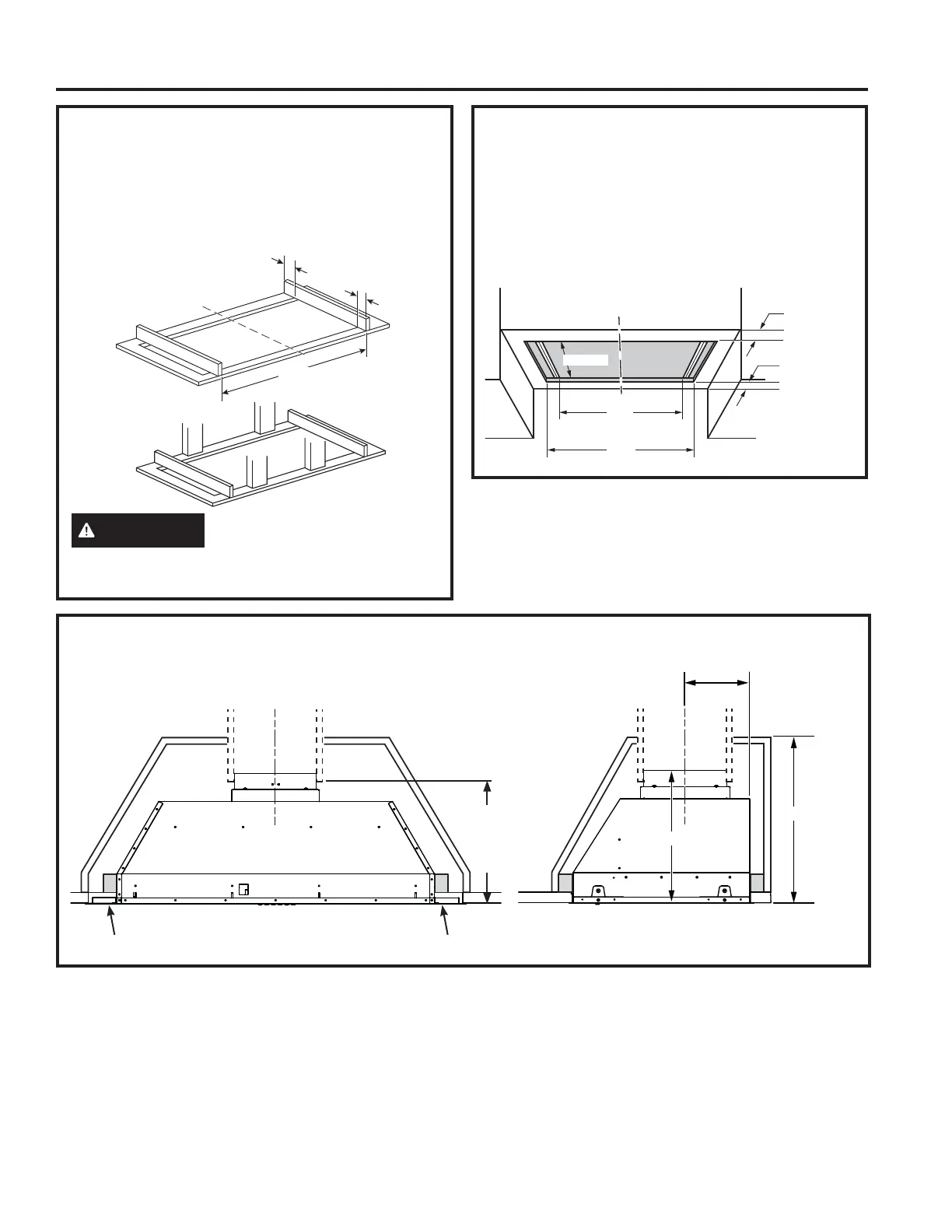

CABINET PREPARATION
C
L
C
L
7-5/8”
18-1/2” Min.
15”
FRONT VIEW SIDE VIEW
Side Panel Side Panel
CABINET STRUCTURE
Ŷ
It is required two 2 x 4 horizontal studs separated
by 39” as part of the cabinet. They must be firmly
secured to the cabinet structure.
Ŷ
The cabinet bottom must be made from a wooden
surface ¾” minimum thickness.
WARNING
Make sure the studs and cabinet
bottom surface are firmly secured and able to
withstand 100 pounds.
C
L
2" Min.
2" Min.
39" Between
Studs
CUSTOM CABINET FRAME
ŶThe custom canopy or cabinet must have a
rectangular opening to accommodate the custom
hood insert by itself. This opening has the same
size for both a wall installation or an island
installation. Ensure parallelism and levelness of
the cabinet so that it doesn't affect flushness of
the hood with the cabinet.
INSTALLATION PREPARATION
C
L
Front of
opening
must be 2"
minimum
from cabinet
front
Back of
opening
must be 2"
minimum
from back
wall
21-1/4"
39"
between studs
45"
cutout width
13" from
bottom of
cabinet to
bottom of
house duct
