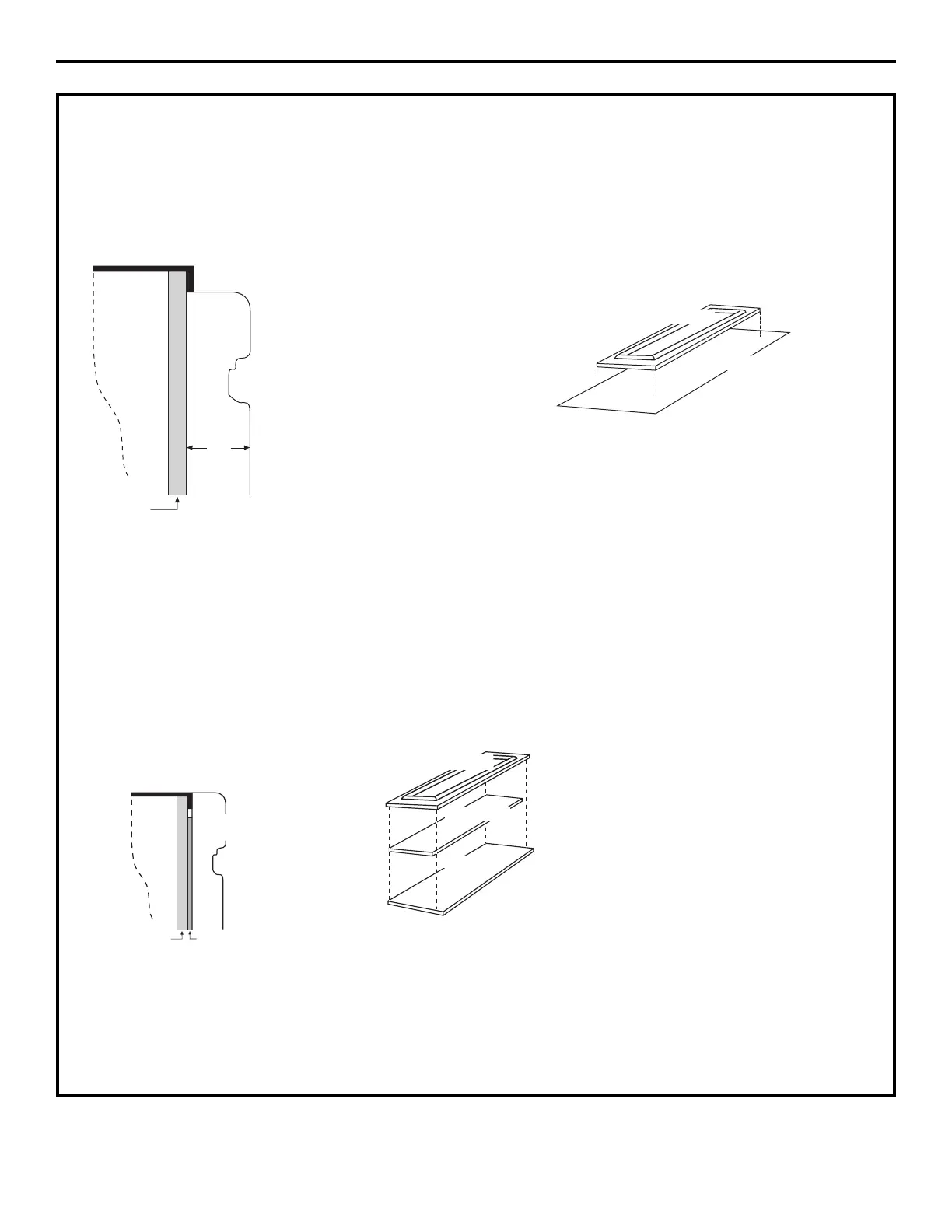

3/4″ FRAMED CUSTOM PANEL OPTION
For a more custom appearance, 3/4″ framed custom
panels may be installed on trimmed models. The overlay
panel is secured to a 1/4″ finished backer panel. The
assembled custom panel then slides into the trim with
the same procedure described on page 33.
3/4″ FULL-WIDTH OVERLAY
CUSTOM PANEL OPTION
This design provides a nearly trimless appearance. The full
width overlay panel covers most of the door trim. In this design,
a spacer panel must be installed between the finished backer
and overlay panel.
NOTE: Left-to-right offset is not equal
to top-to-bottom offset.
NOTE: Left-to-right offset is not equal
to top-to-bottom offset.
.250 + .750 = 1.000 Maximum Total Panel Thickness
IMPORTANT NOTE: Maximum total weight for any
assembled Fresh Food panel is 70 pounds and
30 pounds total for Freezer panels.
3/4"
Custom
Overlay
Panel
1/4"
Backer
Panel
Door
3/4"
Overlay Panel
Backer Panel
Custom
Overlay
Panel
1/4"
Backer
Panel
Door
.10 Inch
Spacer
Installation Instructions
22
.250 + .10 + .750 = 1.100 Maximum Total Panel Thickness
Spacer Panel
Overlay Panel
Backer Panel
