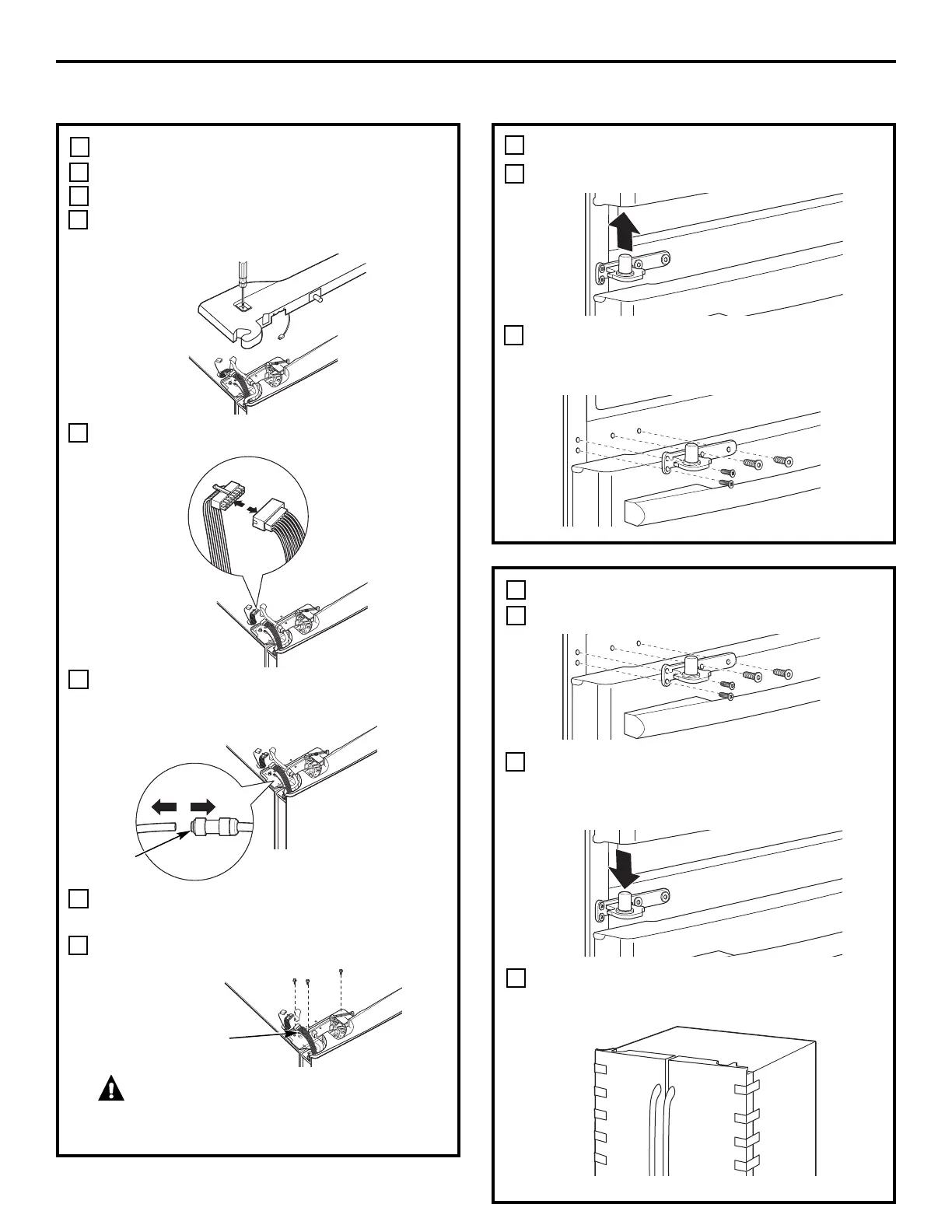

REMOVE THE REFRIGERATOR DOORS
Open the refrigerator doors.
Remove the two front caps with a flat-head screwdriver.
Remove the three screws on top with a Phillips-head
screwdriver.
Disconnect all electrical connectors.
To disconnect the water coupling, push in on the gray
coupling and pull out the tubing.
Remove the two ground wires with a Phillips-head
screwdriver, one on each side.
Remove three 10 mm hex-head bolts (right and left).
CAUTION: When the bolts are removed,
the door may fall and cause personal injury and/or
damage to the door itself.
Installation Instructions
INSTALLING THE REFRIGERATOR (cont.)
E
F
G
A
B
C
D
5
REMOVE THE REFRIGERATOR DOORS (cont.)
Lift the door straight up to remove.
Remove the two bolts using a 3/16″ Allen wrench
and two Phillips-head screws from the center hinge.
Set the hinge, bolts and screw aside.
REPLACING THE REFRIGERATOR DOORS
Install the center hinge on each side.
Lower the refrigerator door onto the center hinge pin.
Ensure that the plastic hinge pin thimble is on the center
hinge pin or inside door hinge pin hole located in the
bottom of the door.
Securely tape the door shut with masking tape
or have a second person support the door.
A
B
C
I
H
5
6
28
Ground
Wire
Gray
Coupling
