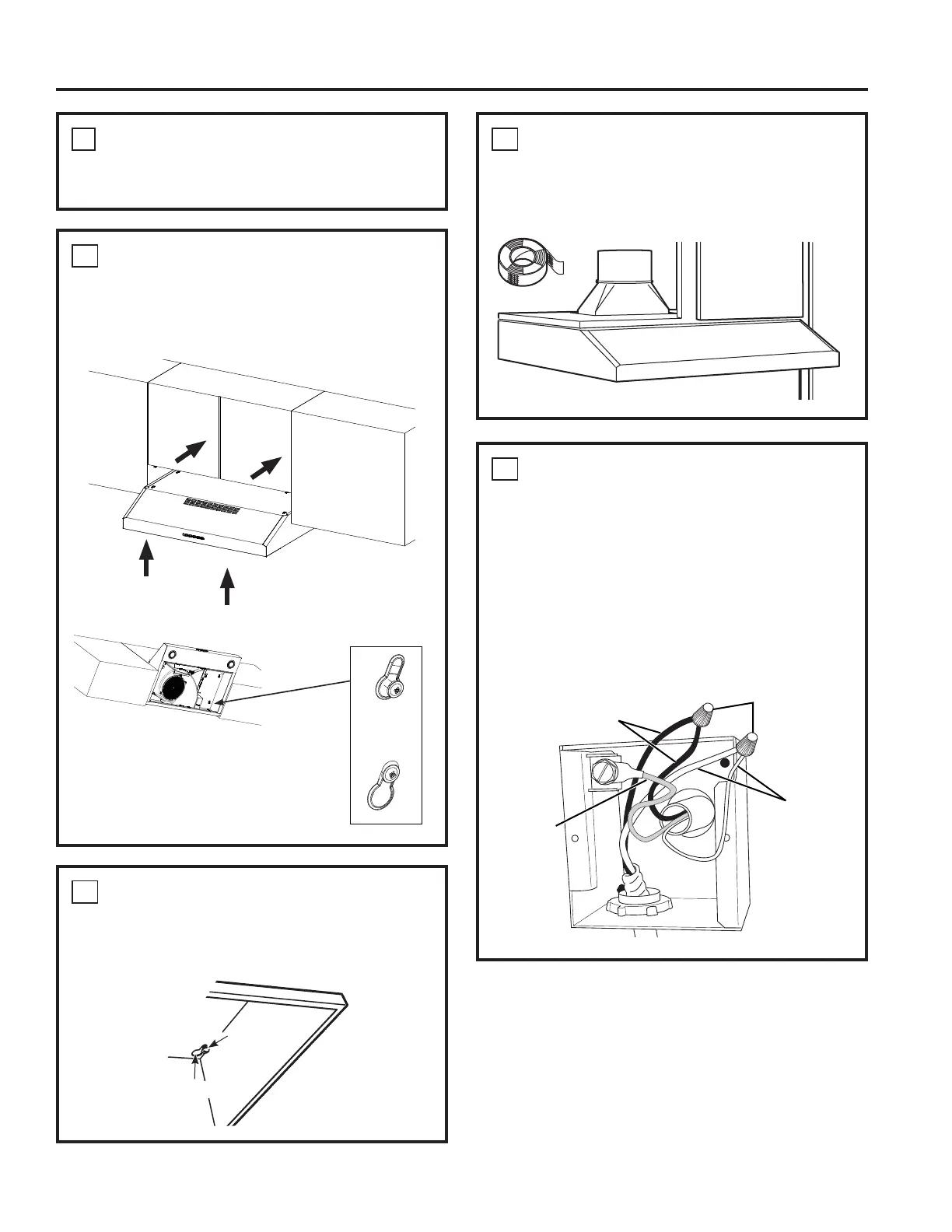

MOUNT THE UTC
Place the hood onto the partially installed
screws using the keyholes and slide the hood
back into position.
9
FEED IN WIRES
Lift the hood into position and feed the house
wiring through the wiring knockout.
1
2
11
SECURE HOOD
Tighten the mounting screws. Be sure the
screw heads are in the narrow neck of the
keyhole slot.
Keyhole (4)
Mounting
screw (4)
12
CONNECT DUCTWORK TO HOOD
(Ducted installations only)
Connect ducting to hood. Use duct tape to
make joints secure and airtight.
INSTALLATION INSTRUCTIONS
Installation Instructions
13
ELECTRICAL CONNECTION
1. Connect the Power Supply Cable to the range
hood. Attach the white lead of the power
supply to the white lead of the range hood
(A) with a wire nut (C). Attach the black lead
of the power supply to the black lead of the
range hood (B) with a wire nut (C). Connect
the green (D) ground wire under the green
grounding screw.
2. Replace the junction box cover.
B
D
C
A
