Installation Preparation

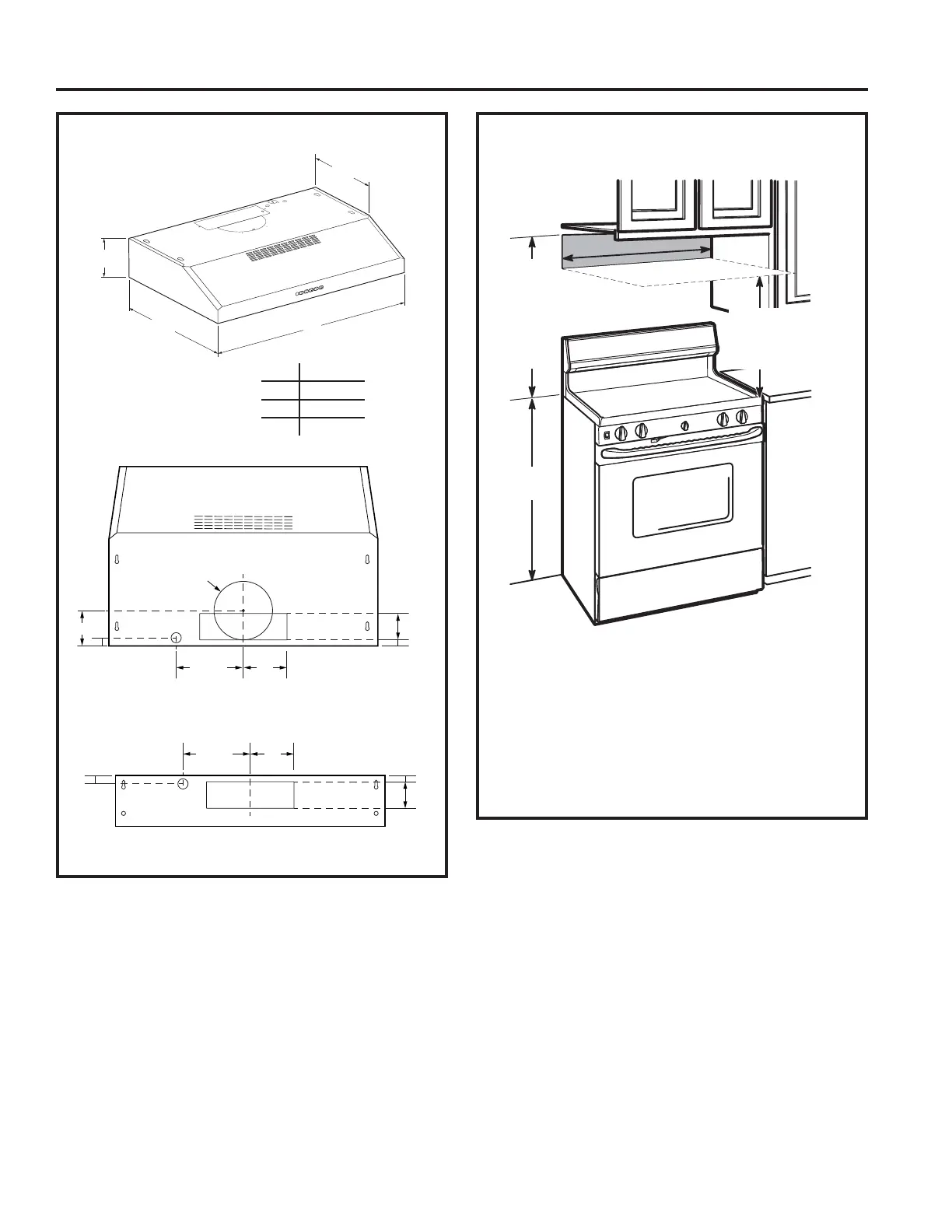

MOUNTING SPACE
PRODUCT DIMENSIONS
NOTES:
• Hood width may be greater than the width of the
range or cooktop, but it may not be smaller.
• Installation height should be measured from the
cooking surface to the lowest part of the hood.
This hood must be installed onto a cabinet. It can
be vented to the outdoors, or it can be installed for
recirculating operation.
Bottom edge
of cabinet
needs to
be 30” or
more from
the cooking
surface
24" Min required
30" Max recommended
to the bottom of
the hood
34"-36"
Typical
ƎƎRUƎ to
match cooktop width
INSTALLATION PREPARATION
*Controls may vary
Top View
Back View
X20”
5”7
1
»2”
ø 7”
4”
3
1
»4”
1
»2”
3
»4”
5
1
»2”
12”
Size X
24” 23
15
»16”
30” 29
15
»16”
36” 35
15
»16”
5”7
1
»2”
3
1
»4”
3
»4”
3
»4”
