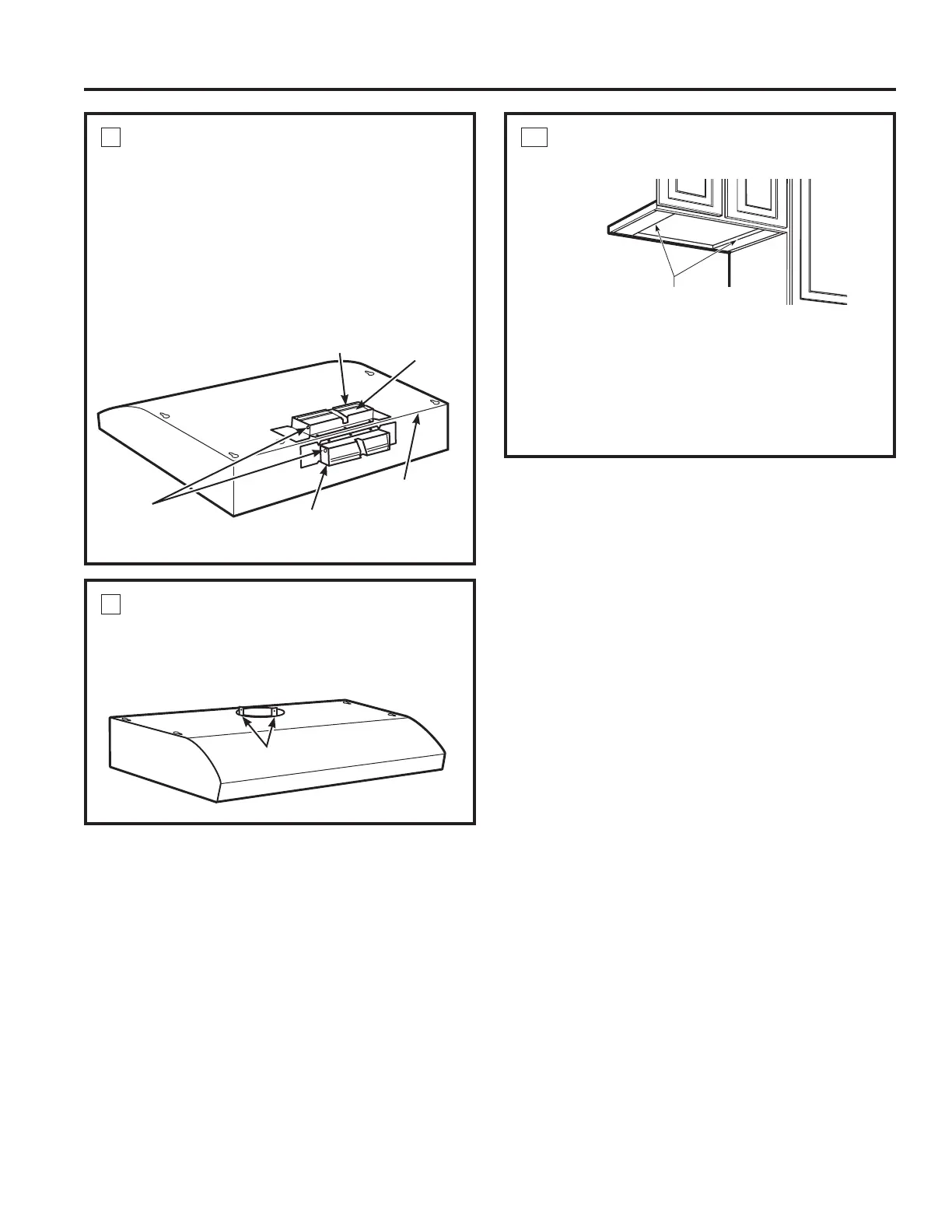

Installation Instructions
8
FOR 3-1-4" X 10" RECTANGULAR
DUCTED DISCHARGE INSTALLATIONS
ONLY:
Attach exhaust adaptor/damper over the
appropriate knockout opening (for vertical or
horizontal, depending on installation) with two
exhaust adaptor screws. Make sure damper
pivot is nearest to top/back edge of hood.
Remove tape from damper flap.
10
FOR RECESSED-BOTTOM CABINETS
ONLY
If the cabinets have front, side or back trim,
PDNHZRRGVKLPVDPLQLPXPRIƎWKLFN
and cut to fit the width of the inner recessed
cabinet bottom. Attach them to the cabinet
bottom recess on both sides. See Step 11 for
marking locations.
9
FOR 7" ROUND VERTICAL DUCTED
DISCHARGE INSTALLATIONS ONLY:
Bend up the duct alignment ears in preparation
IRUODWHUDWWDFKPHQWRIWKHƎGXFW
Tape
Top/back edge
Exhaust adaptor/damper
(vertical discharge position)
Pivot
(depending on
installation)
Exhaust adaptor/damper
(horizontal discharge position)
Attachment ear tabs
Wood shims
(minimum thickness 3/8s
INSTALLATION INSTRUCTIONS
