INSTALLATION INSTRUCTIONS
Installation Instructions
REVERSING THE DOOR SWING (Cont.)
5

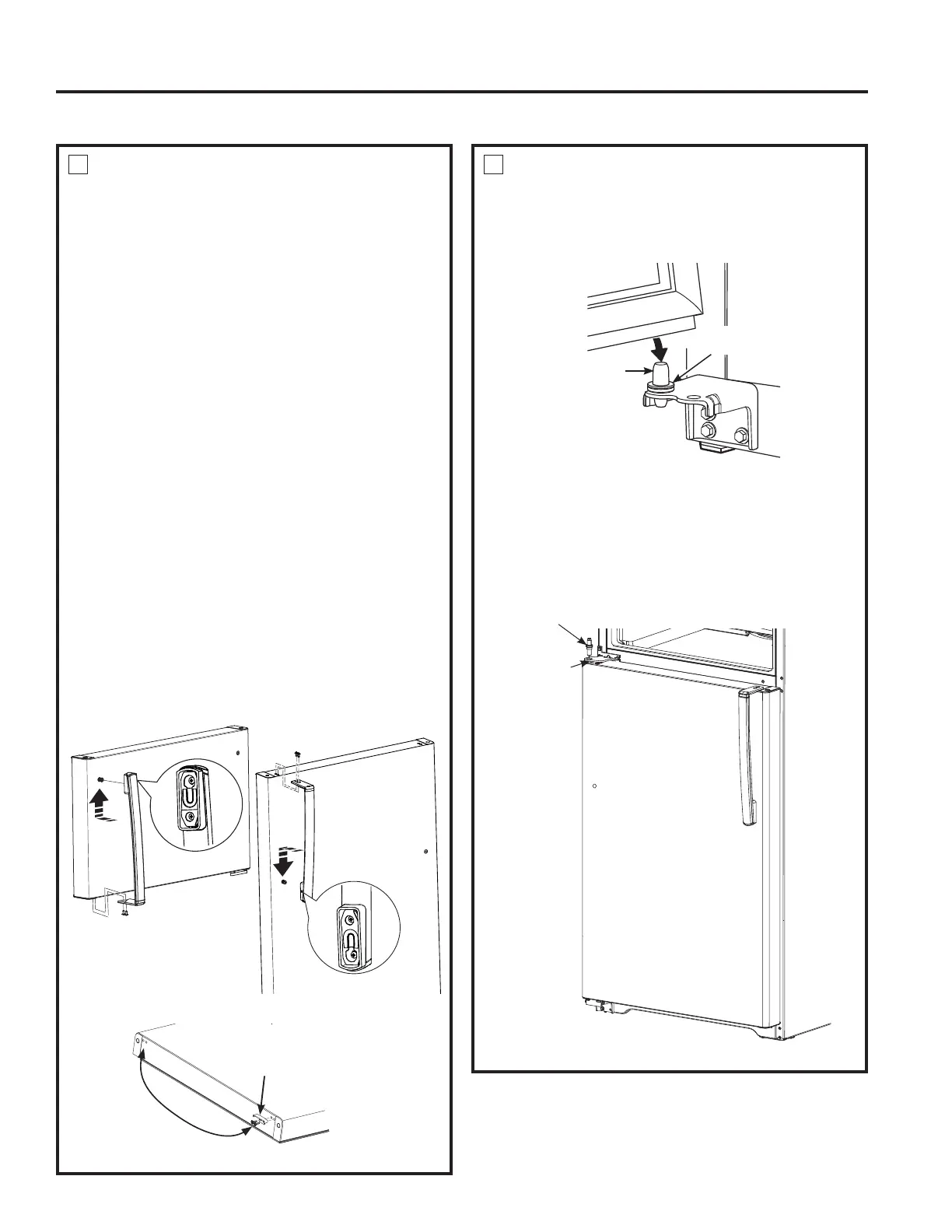

REVERSING THE DOOR
HANDLES
5.1. Remove handle screws from the top of fresh
food door. Remove handle screws from the
ERWWRPRIIUHH]HUGRRU
5.2. Remove door handle on fresh food door
by sliding the handle up off of the fastener
(Plastic Handle) or plastic bushing (Stainless
Steel Handle). Remove door handle on
IUHH]HUGRRUE\VOLGLQJWKHKDQGOHGRZQRII
of the fastener (Plastic Handle) or plastic
bushing (Stainless Steel Handle).
5.3. Change places between the handle fastener
or plastic bushing and plug button on door
front.
5.4. Move the plug buttons on top and front of the
door to fill the now vacant holes.
5.5. Transfer the door stop on the bottom of the
door.
5.6. Attach handle to fresh food door by sliding
handle down onto fastener (Plastic Handle)
or plastic bushing (Stainless Steel handle)
and with screws at top of handle.
$WWDFKKDQGOHWRIUHH]HUGRRUE\VOLGLQJ
handle up onto fastener (Plastic Handle) or
plastic bushing (Stainless Steel handle) and
with screws at bottom of handle.
$WWDFKEDGJHRQIUHH]HUGRRURSSRVLWHWKH
handle.
'RRU
Stop
6
RE-HANGING THE DOORS
6.1 Re-hang the fresh food door
6.1.1 Lower the fresh food door onto the
bottom hinge pin. Be sure the washer is
in place on the pin.
6.1.2 Tilt the door towards the cabinet. As
the door is brought into position, align
the socket in the door with the hole
in the center hinge. Place the center
hinge pin into the hole in the center
hinge and tighten. Make sure the
washer is on the top of the hinge pin.
Plastic
Washer
Hinge
Pin
Hinge
Pin with
Washer
Center
Hinge
