Installation Instructions
15

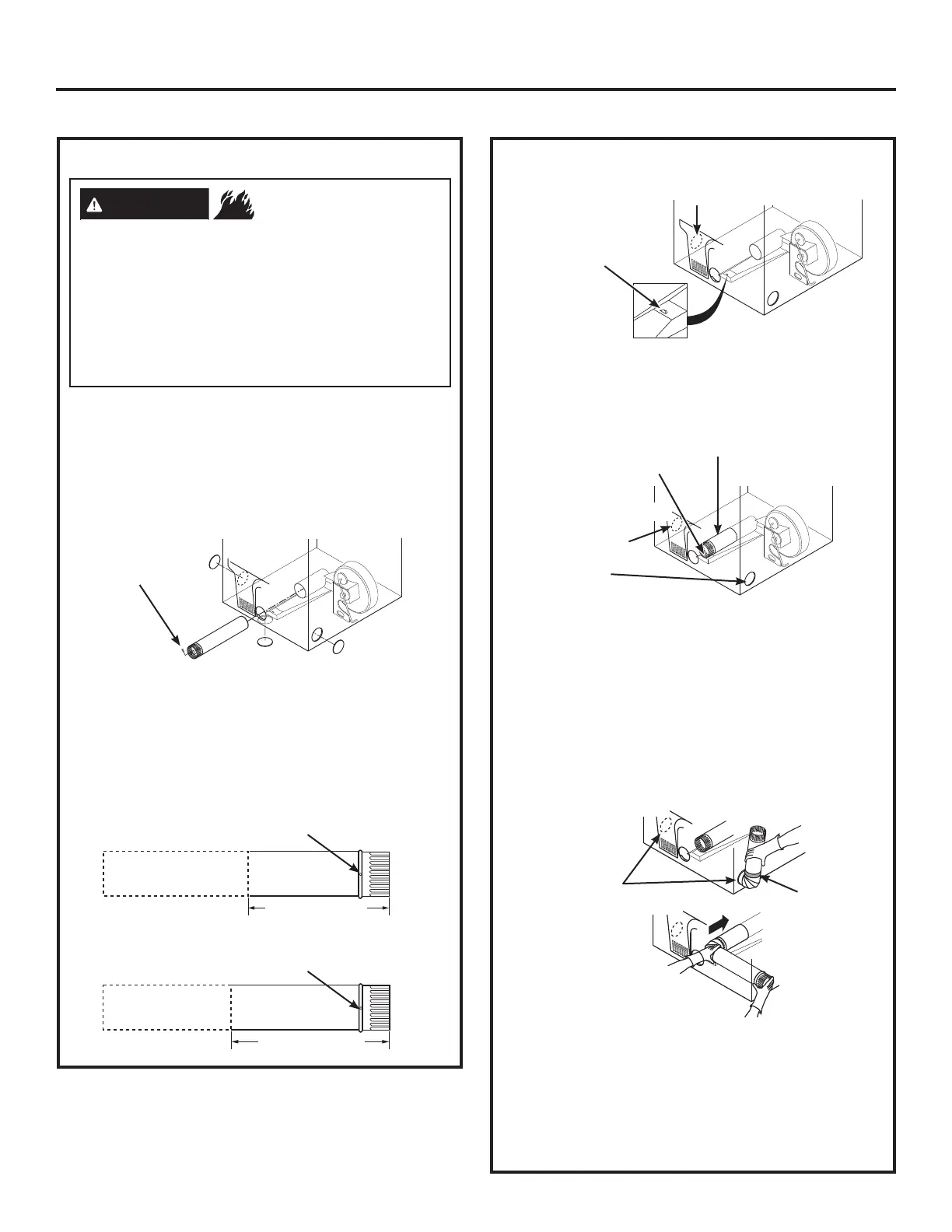

EXHAUSTING THE DRYER (cont.)
SIDE OR BOTTOM VENTING
Disconnect dryer from electrical supply.
Wear gloves and arm guards.
Close the back opening with cover plate (Kit
WE49X22606).
Failure to do so may result in fire, electrical
shock or lacerations.
- Fire Hazard
WARNING
Dryer Exhaust to right of the cabinet for Electric
models only.
Dryer Exhaust to left of the cabinet for Gas and
Electric models.
Dryer Exhaust to the bottom of cabinet for Gas
and Electric models.
Detach and remove the right (electric models only),
left or bottom knockout as desired. Remove the
screw inside the dryer exhaust duct and save.
Pull the duct out of the dryer.
Cut the duct as shown and keep portion A.
Remove
screw
and save
Remove desired knockout (one only)
Right
(electric
models
only)
Left
Bottom
Fixing hole
A
9
1
»2” (24.13cm)
Fixing hole
A
10
1
»2” (26.67cm)
For models GTD60, GTD65 and GTD68 only, use
the dimension below:
SIDE OR BOTTOM VENTING (cont.)
ADDING A NEW DUCT
Reconnect the cut portion (A) of the duct to the blower
housing. Make sure that the shortened duct is aligned
with the tab in the base. Use the screw saved previously
to secure the duct in place through the tab on the
appliance base.
ADDING ELBOW AND DUCT FOR
EXHAUST TO RIGHT (ELECTRIC
MODELS ONLY) OR LEFT SIDE OF
CABINET
• Preassemble 4” elbow with 4” duct. Wrap UL listed
aluminum foil tape around joint.
• Insert duct assembly, elbow first, through the side
opening and connect the elbow to the dryer internal
duct.
Be sure not to pull or damage the electrical
wires inside the dryer when inserting the duct.
TAB LOCATION
Through the rear opening, locate the tab in the middle
of the appliance base. Lift the tab to about 45°,
using
a flat-blade screwdriver.
Portion “A”
Right (electric
models only)
or left side
exhaust
Fixing hole
Left
Right
Bend tab
up 45°
Not for gas models
Left
Exhaust can be
added to right
(electric models
only) or left side
UL listed
aluminum
foil tape
Right
Left
Right
Left
