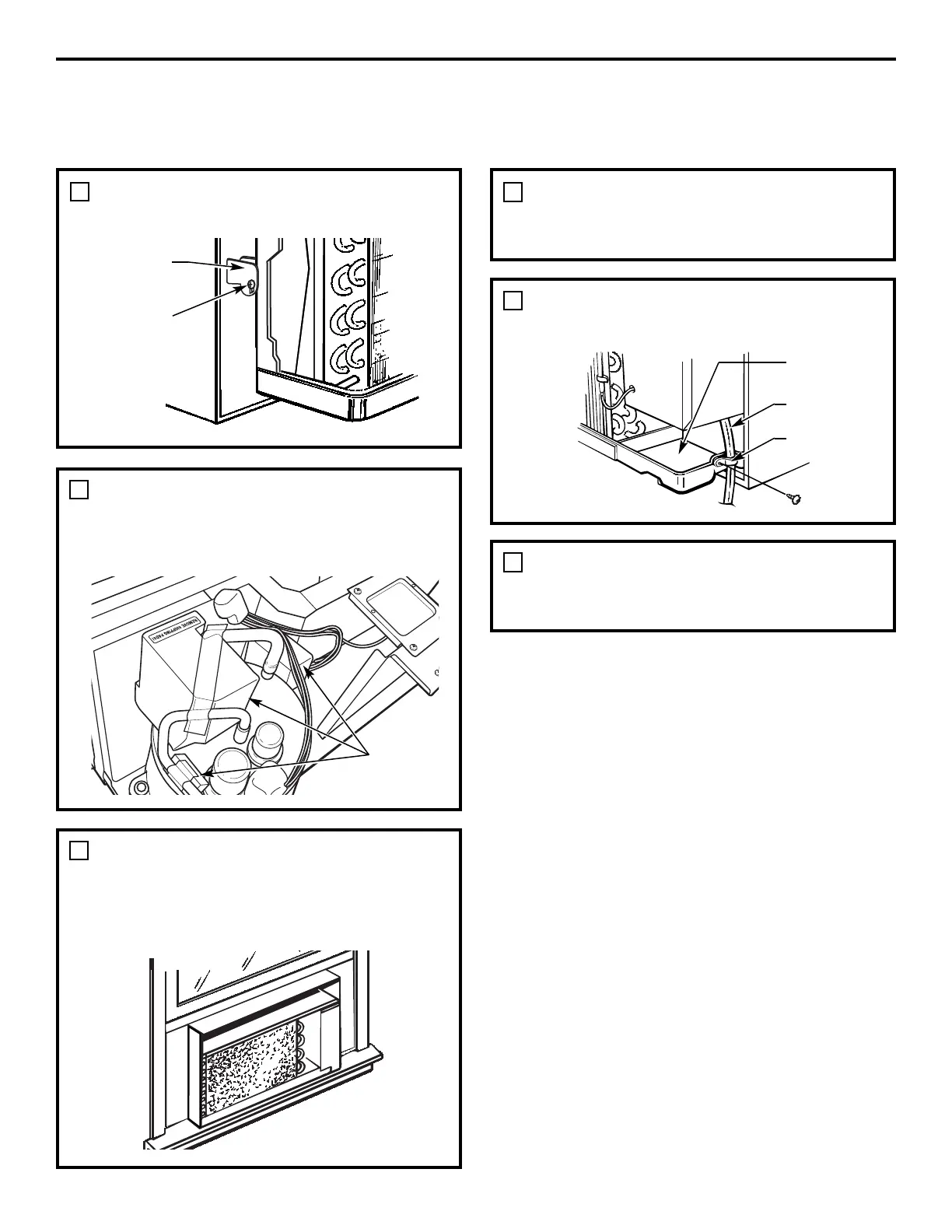

REMOVE ALL SHIPPING PADS
(IF PRESENT) INSIDE AIR
CONDITIONER NEXT TO
COMPRESSOR
Installation Instructions
REMOVE LOCKING PLATE ON
FRONT LEFT SIDE
1
REINSTALL LOCKING PLATE WITH
TAB BEHIND WALL CASE FLANGE.
TIGHTEN SCREW
Locking
plate
Remove
screw
INSTALLING A J-MODEL IN AN EXISTING WALL CASE
Read these instructions completely and carefully.
Remove
shipping
pads (if
present)
CAREFULLY SLIDE AIR
CONDITIONER BACK INTO CASE
Make sure that the tubing on the unit does
not touch the wall case and that the case
installation is secure.
2
3
14
ATTACH FRONT GRILLE
An opening for the power cord is on the
bottom of the front grille.
ATTACH POWER CORD TO BASE
PAN WITH CLAMP
Clamp
Power
cord
Base pan
4
5
6
