4. REMOTE PLAYBACK FUNCTION (LAND-SHIP COMMUNICATION)
4-2
• The following communication environment is recommended to use the remote play-
back function:
• Average baud rate: 80 kbps or higher
• Packet loss rate: Less than 5%
• Average communication delay: Less than 1200 msec
• When you establish a VPN connection from the shore, the network segment on the
shore must be different from the VDR network segment. VDR network segment is
as follows:
• 10.0.0.×××/255.255.255.0: Change the VDR subnet address.
• 172.31.×××.×××/255.255.0.0
• 192.168.31.×××/255.255.255.0: Used only for applicable vessels.
4.3 Recommended Network Construction

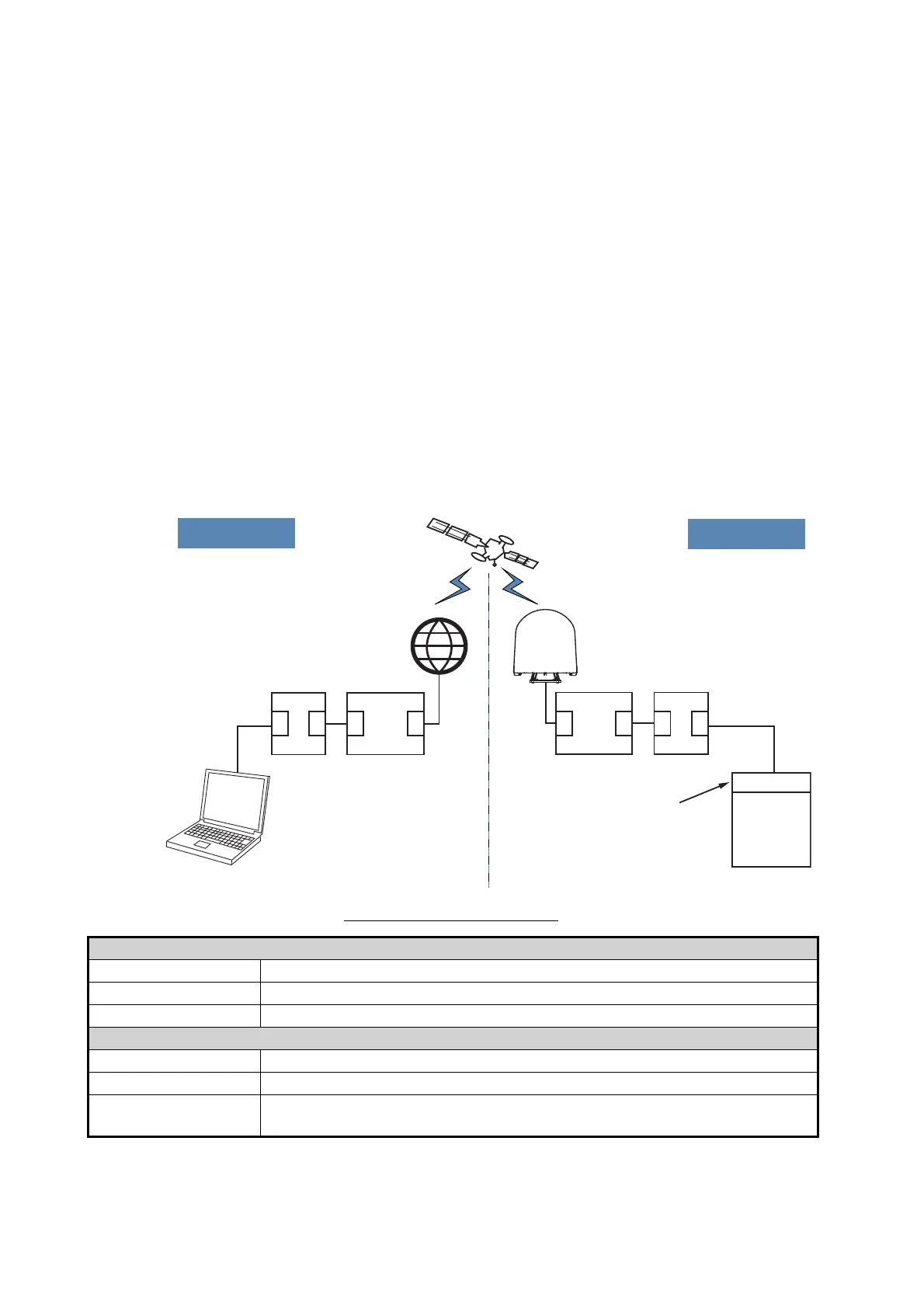

The following figure shows the recommended network construction for remote play-
back functions:
IP address setting examples
Note: The IP addresses on the table above are only one example.
On-shore
VPN Router WAN1 Fixed global IP address is recommended.
VPN Router LAN 192.168.5.1/255.255.255.0
PC 192.168.5.101/255.255.255.0 Default gateway: 192.168.5.1
On-board
VPN Router WAN1 Fixed global IP address is recommended.
VPN Router LAN 192.168.6.1/255.255.255.0
DCU (VR-7010) No.2 IP address for IEC 61162-450 network: 192.168.6.101/255.255.255.0
Default gateway: 192.168.6.1
PC
(Live Player V5)
L
A
N
W
A
N
1
W
A
N
1
L
A
N
VPN router
Firewall
Internet
VSAT
Satellite
HUB
DCU
(VR-7010)
Sensor network
(IEC 61162-450)
On-shore
On-board
Firewall
VPN router
