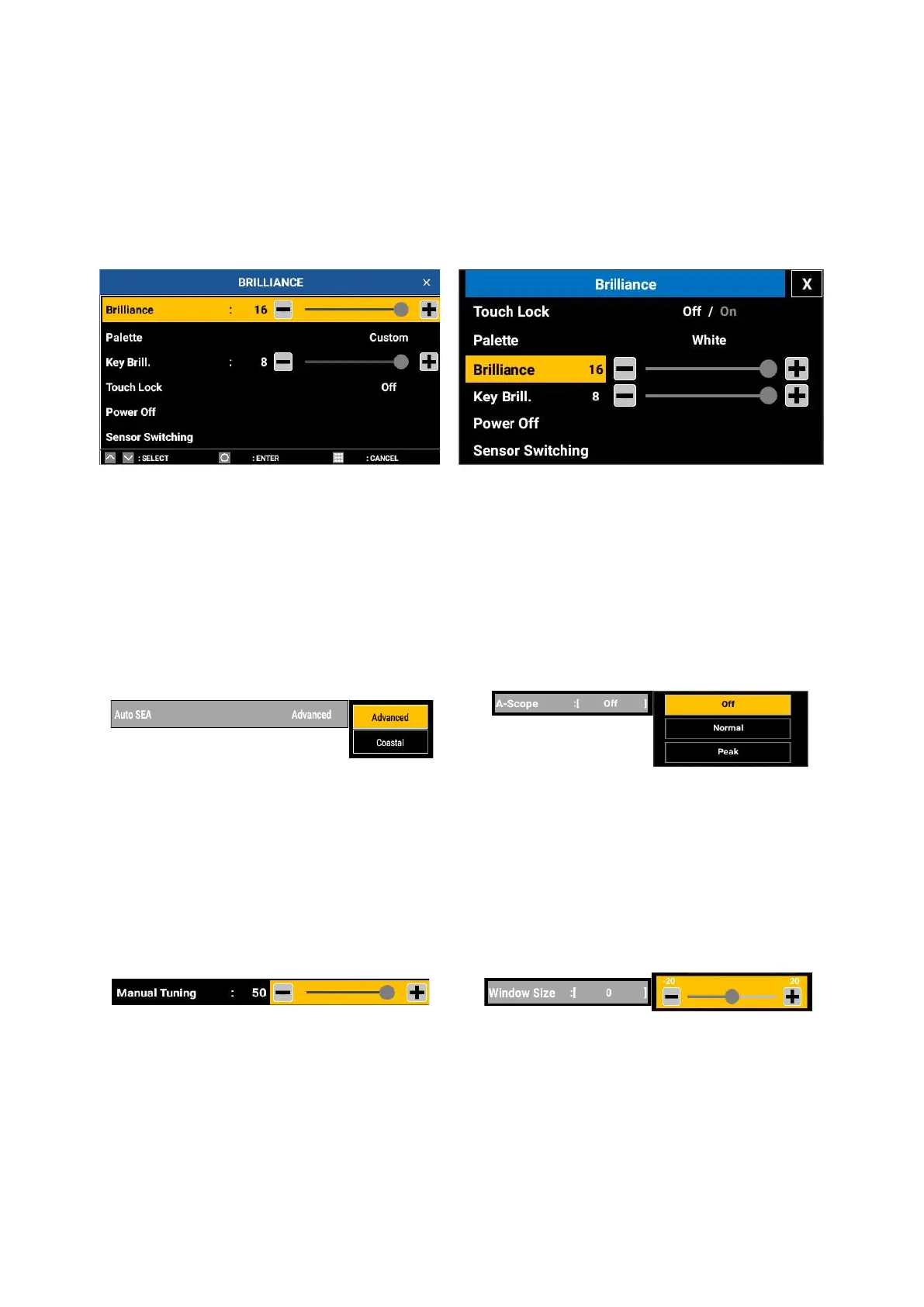

Key control:
1. Press the POWER/BRILLIANCE key.
2. Select the [KEY BRILLIANCE] menu with the arrow keys, then press the ENTER
key.
3. Press the arrow keys for adjustment.
4. Press the ENTER key to confirm.
5. Press the MENU/ESC key to close [MENU].
When using radar When using fish finder/ Multi beam sonar
1.4 Description of Menu Setting Window
1.4.1 List-type window
- Select an option by tapping the display or key control.
- Press the ENTER key or tap an option to select, then the selected option is entered
and the option window closes.
- Close option window without saving: Tap any location other than the option window.
Radar
Fish finder/
Multi beam sonar
1.4.2 Adjustment-type window
- Select an option by tapping the display or key control.
- Tap the slider bar or pressing Up/Range key or Down/Range key to adjust the
increase/decrease of the setting value.
- Press the Up/Range key or Down/Range key to increase/decrease the setting
value faster.
- Setting value can be set only between selectable range.
Radar F
ish finder/ Multi beam sonar
1
-
6
1
-
6
1
-
6
1. BASIC OPERATION
