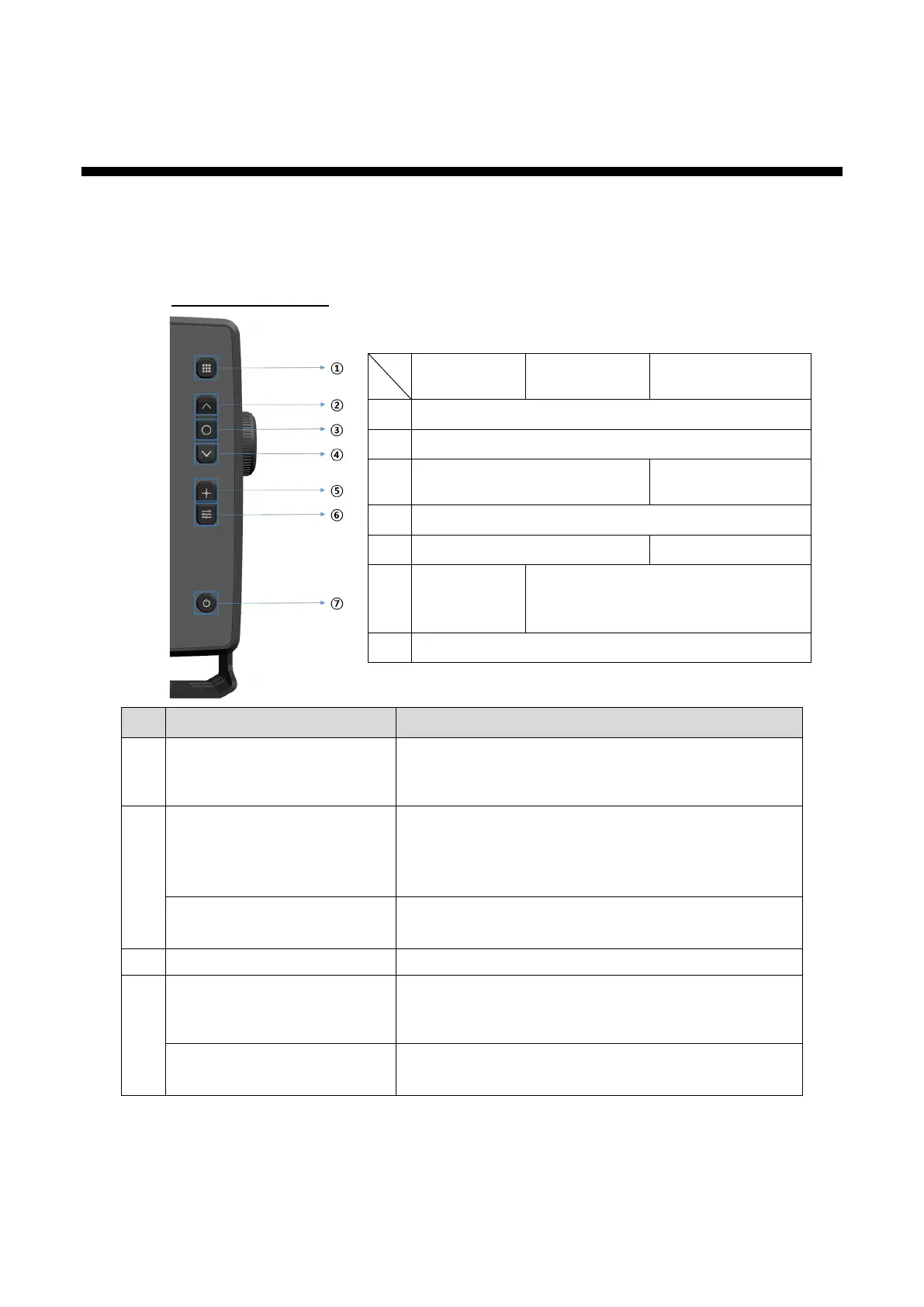

1. BASIC OPERATION
1.1 Controls
This equipment is operated with a touchscreen and hardware keys.
D
escription of keys
When using
radar
When using
fish finder
When using multi
beam sonar
①
MENU/ESC
②
Move cursor, change range
③
ENTER
ENTER / Switch
active window
④
Move cursor, change range
⑤
TLL
Fixed mark, TLL
⑥
Menu for
various
adjustments
Popup menu
⑦
Power/brilliance
No. Name of key Brief description of operation
①
[MENU/ESC]
•
Opens/closes the menu.
• Returns to the higher level when a lower level
menu is selected.
②
When controlling radar:
[UP/RIGHT ARROW]
(arrow key)
•
Raises the range.
• When selecting a menu, moves cursor upward for
horizontal mounting and downward for horizontal
mounting.
When controlling fish finder:
[UP/RANGE-UP]
•
Changes display range when [AUTO RANGE] of
popup menu is set to [OFF].
③
[ENTER]
•
Enters an item selected with cursor.
④
When controlling radar:
[DOWN/LEFT ARROW]
(arrow key)
•
Lowers the range.
• When selecting a menu, moves cursor upward in
horizontal mode and downward in vertical mode.
When controlling fish finder:
[DOWN/RANGE-DOWN]
•
Changes display range when [AUTO RANGE] of
popup menu is set to [OFF].
1-1
