1. OPERATION
1-4
1.4 Display Overview
Note: If the communication error between the pro-
cessor unit and control unit occurs, the message
shown to the right appears and the buzzer sounds.
Also, the steering indication shows “UNKNOWN”. Check the connection with the pro-
cessor unit.

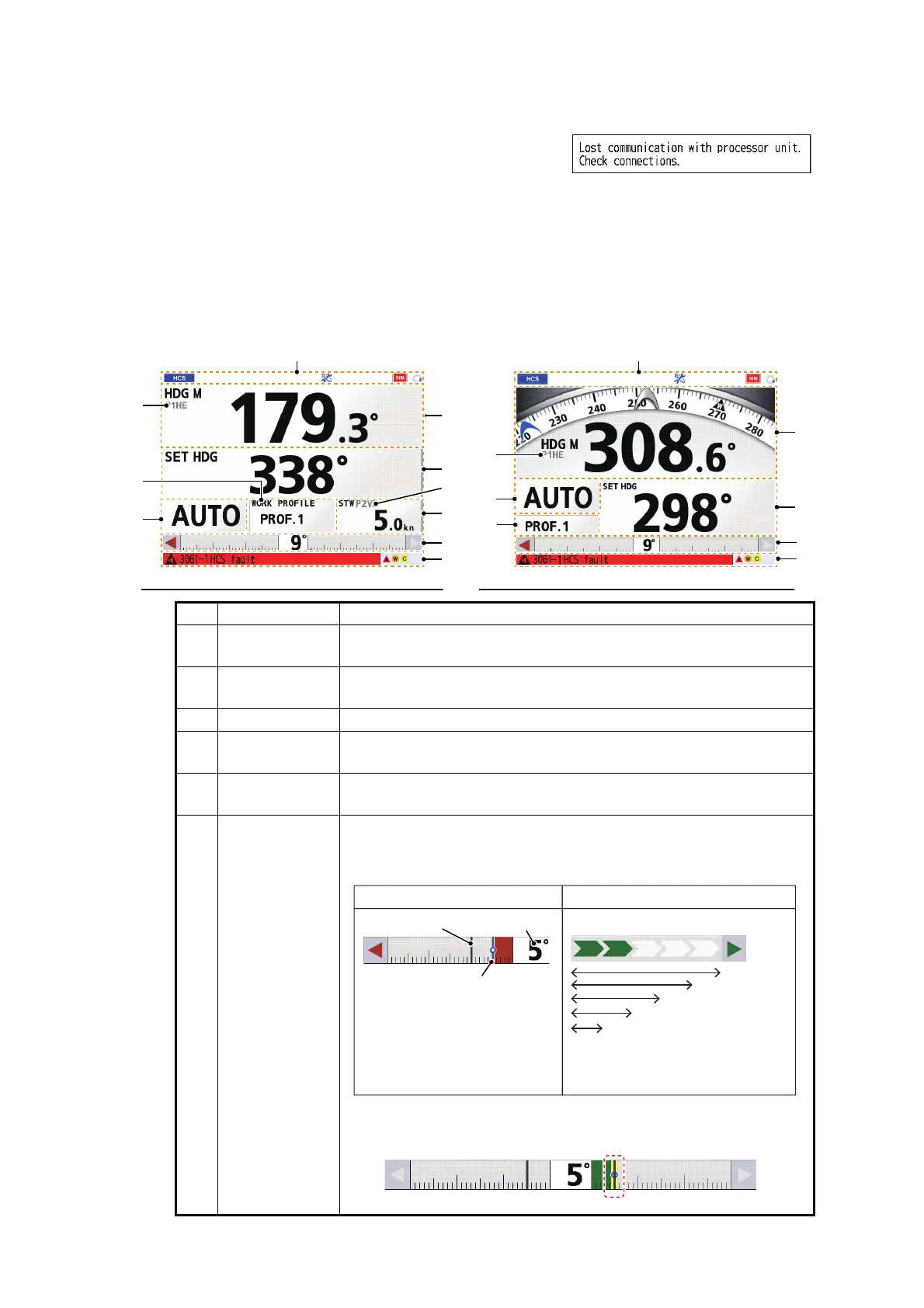

1.4.1 Autopilot main screen
The Autopilot main screen is divided into several areas, as illustrated below.
No. Name Description
1 Header Displays the current status with various icons. For details, see
subsection 1.4.2.
2 Heading
indication
Shows the current ship’s heading. When the "Doubtful heading"
alert occurs, the heading indication is shown in yellow.
3 Steering mode Shows the current steering mode. See section 2.1.
4 Work profile Shows the work profile name selected. For details, see
section 1.7.
5 Steering mode
data
Data shown in this area depends on the current steering mode.
For details, see chapter 2.
6 Rudder
indication
Shows the rudder angle and steering direction. Red-colored seg-
ments indicate rudder to port, green segments indicate rudder to
starboard.
Note: If the rudder order angle exceeds the rudder limit thresh-
old, the rudder limit indication is highlighted in yellow.
Example: [Screen Display] = [Graphic]Example: [Screen Display] = [Digital]
11
11
22
33
33
44
44
55
55
6666
77
77
88
22
99
99
99
13.0° or more
9.0° to 12.9°
6.0° to 8.9°
3.0° to 5.9°
0.5° to 2.9°
Rudder angleRudder limit
Order angle
RRU is installed RRU is not installed
Shows the order angle and
steering direction.
Shows the rudder angle, rudder
limit and steering direction. The
order angle marker is shown
only in the FU mode.
