1. MOUNTING, WIRING
5

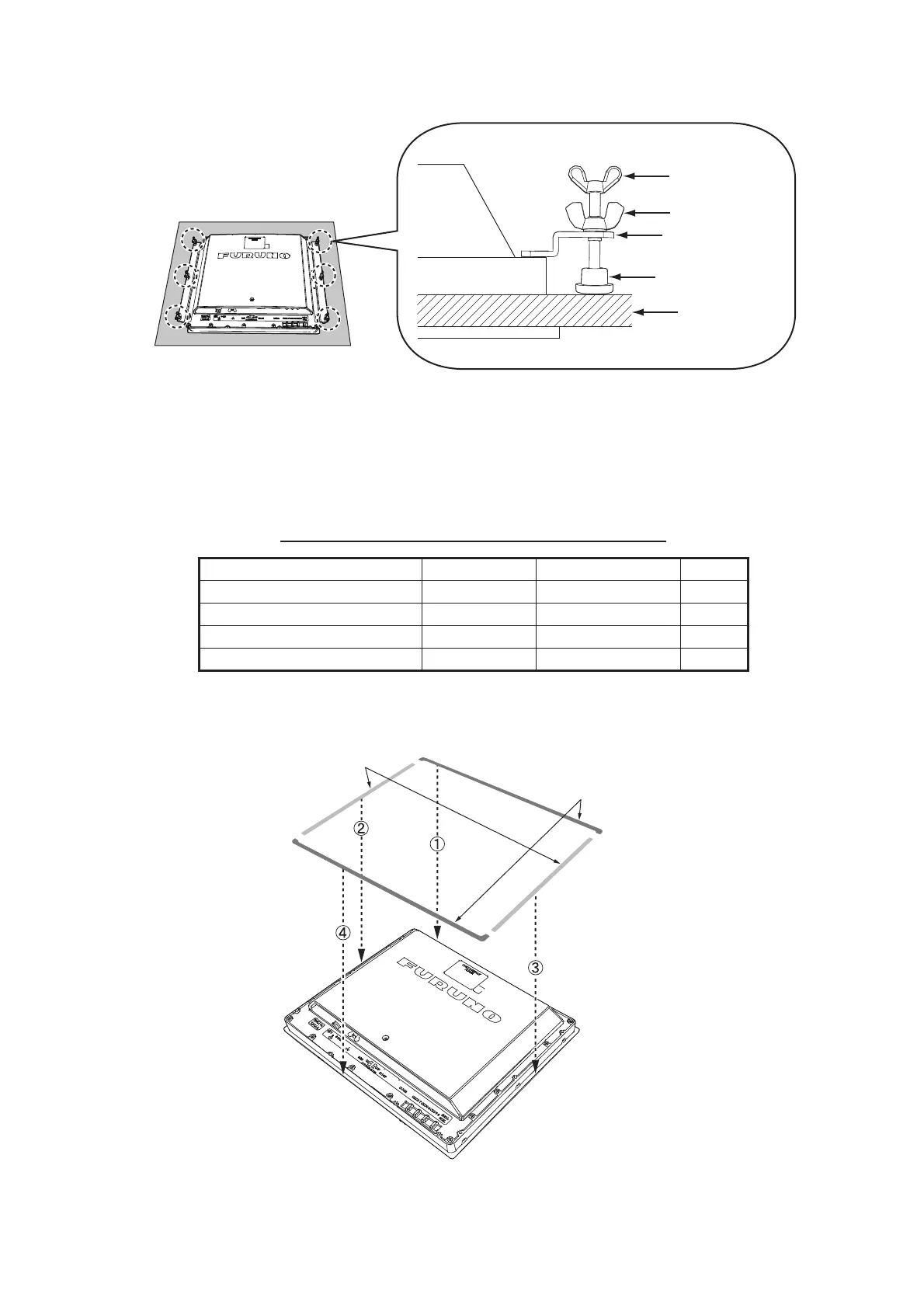

9. Fasten the wing nuts tightly.
1.3 Flush Mounting, Fixed at Front (Option)
If you do not have the enough space to fix the monitor unit from the rear, you can fix it from the
front with the flush mount kit OP26-36 (option).
Flush Mount Kit OP26-36 (Code No.: 001-497-450)
1. Make a cutout in the mounting location with the flush mounting template (included).
2. Attach the flush mounting sponges H15 and V15 in the order shown in the figure below.
Name Type Code No. Qty.
Flush Mounting Panel (15) OP26-36-1 001-497-520 1
Washer Head Screw M4×10 000-163-836-10 8
Self Tapping Screw 5×20 000-162-609-10 4
Flush Mounting Template C42-00909-B 000-172-636-11 1
Wing bolt
Wing nut
Mount fixture
Protector
Mounting panel
Flush mounting sponges (H15)
for top and bottom
Flush mounting sponges (V15)
for right and left
