1. OPERATIONAL OVERVIEW
1-14

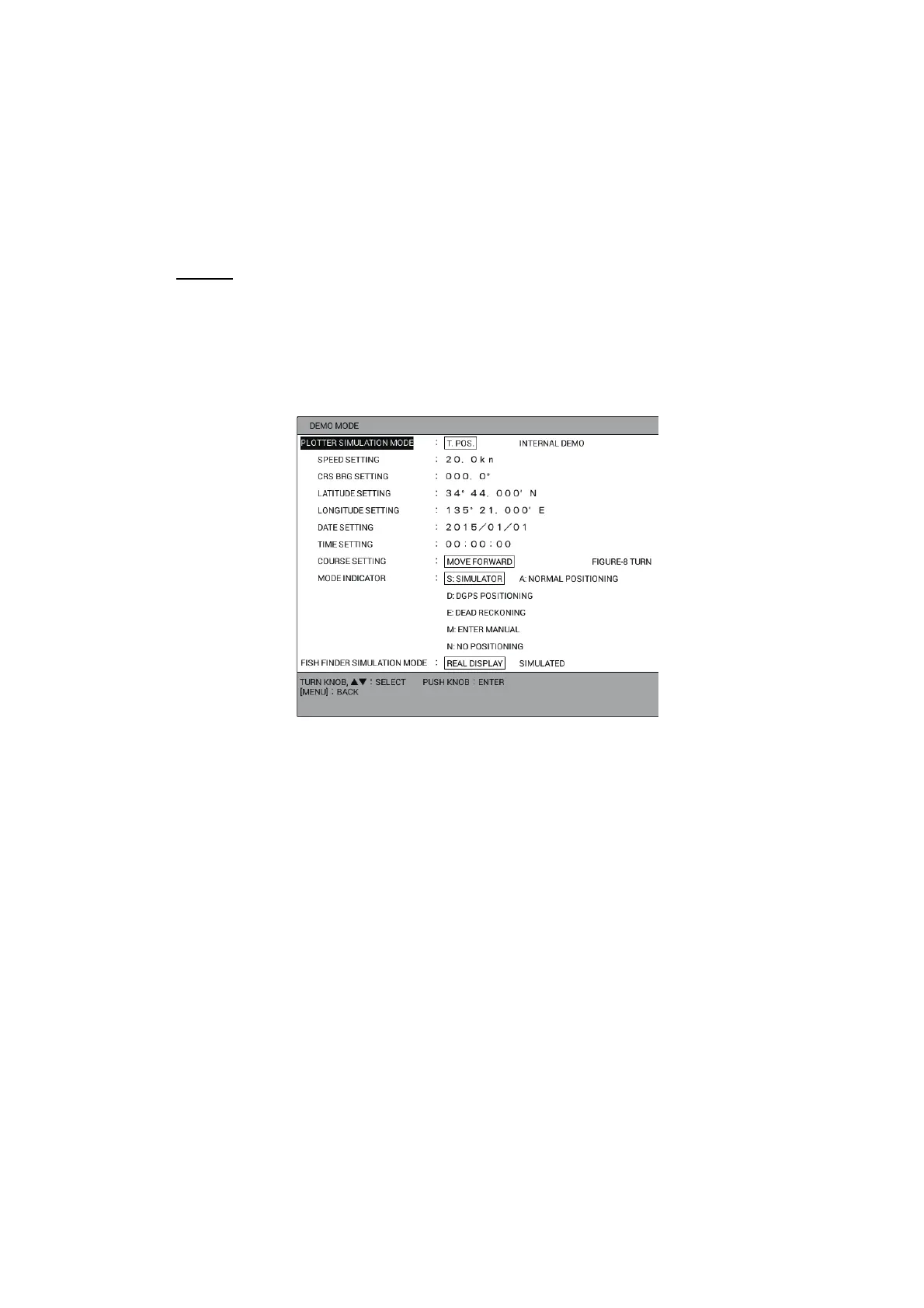

1.8 Demo Mode
The demo mode, available with both the plotter and echo sounder (connection of
transducer is not required), provides simulated operation of this unit. All controls are
operational. Use it in port or the like to acquaint yourself with the features of your unit.
When the demo mode is active, the indication [DEMO] appears at the top right of the
display.
Plotter
Own ship mark moves from the default position at the course and speed set.
1. Press the MENU key to open the main menu.
2. Select [0. SYSTEM SETTING].
3. Select [7. DEMO MODE].
4. Select [PLOTTER SIMULATION MODE].
5. Select [INTERNAL DEMO].
6. Select [SPEED SETTING].
7. Use the numeric keys to enter speed.
8. Select [CRS BRG SETTING].
9. Use the numeric keys to enter direction.
10. Select [LATITUDE SETTING].
11. Use the numeric keys to enter latitude. Use the CURSOR ON/OFF key to switch
the coordinate between north and south and vice versa.
12. Select [LONGITUDE SETTING].
13. Use the numeric keys to enter longitude. Use the CURSOR ON/OFF key to switch
the coordinate between east and west and vice versa.
14. Select [DATE SETTING].
15. Use the numeric keys to enter the start date.
Note: When the [BEARING MODE] menu is set to [MAGNETIC DIR.] (see
page 9-11), “- -” is displayed for the magnetic bearing (COG, heading, bearing to
waypoint) if setting the date before 2020.
16. Select [TIME SETTING].
17. Use the numeric keys to enter the start time, in 24-hour notation.
