2. INTERPRETING THE DISPLAYS
2-11
Description of echo level display indications
2.7 Error Display

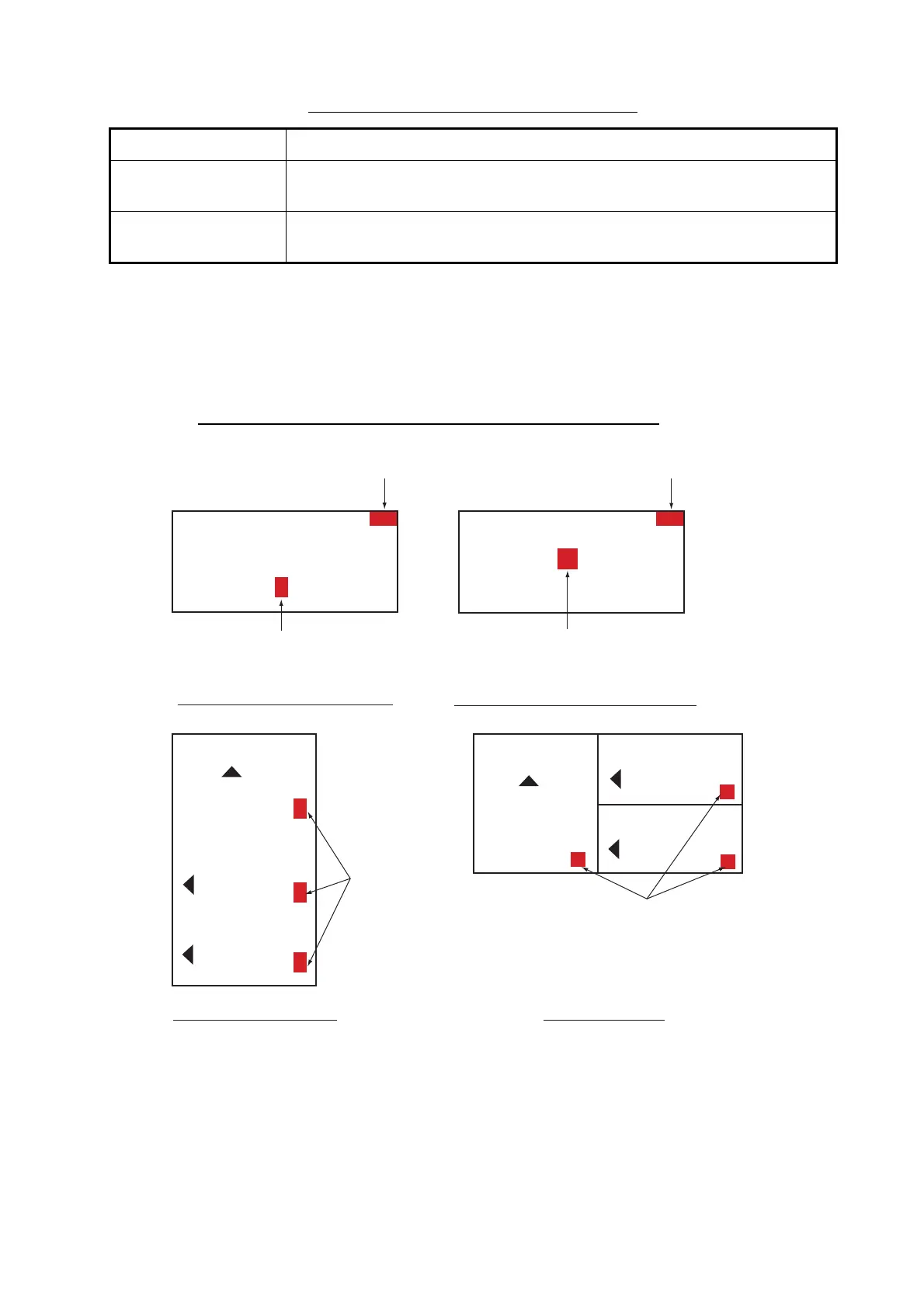

An error icon (red square) appears whenever display data or measured data is abnor-
mal. When this occurs the corresponding data will be unreliable.
Speed and course (fore-aft, port-starboard, drift angle)
Speed and course error displays
Item Description
Echo level Echo status of beam 1 (fore), beam 2 (starboard) and beam 3 (port) is dis-
played in eight colors.
Echo display range The echo display range can be set with ECHO RANGE in the MENU 1
menu.
(1) No data is being input from the transceiver unit to the display unit. If this occurs, con-
tact a FURUNO agent or dealer.
(2) This display appears when the ground tracking echo for ground tracking, reference
layer for water tracking or GPS data from the GPS navigator is abnormal. In this
case data is not reliable.
12.3 333
°
SPD/CSE kn
12.3 333
°
SPD/CSE
kn
2.7
12.0
SPEED FORE-AFT
DRIFT ANGLE
SPEED PORT-STBD
13
°
GT SPEED kn
12.0
2.7
DRIFT kn
DIR
°
13
(1) No data input from
transceiver unit
(1) No data input from
transceiver unit
(2) Ship's speed error (2) Ship's speed error
Tide vector, speed, graph and
course plot displays Text and echo level displays
(2) Ship's speed
error
(2) Ship's speed error
Ship's speed display Text display
