2-1
2. INTERPRETING THE DISPLAYS
2.1 Tide Vector Display

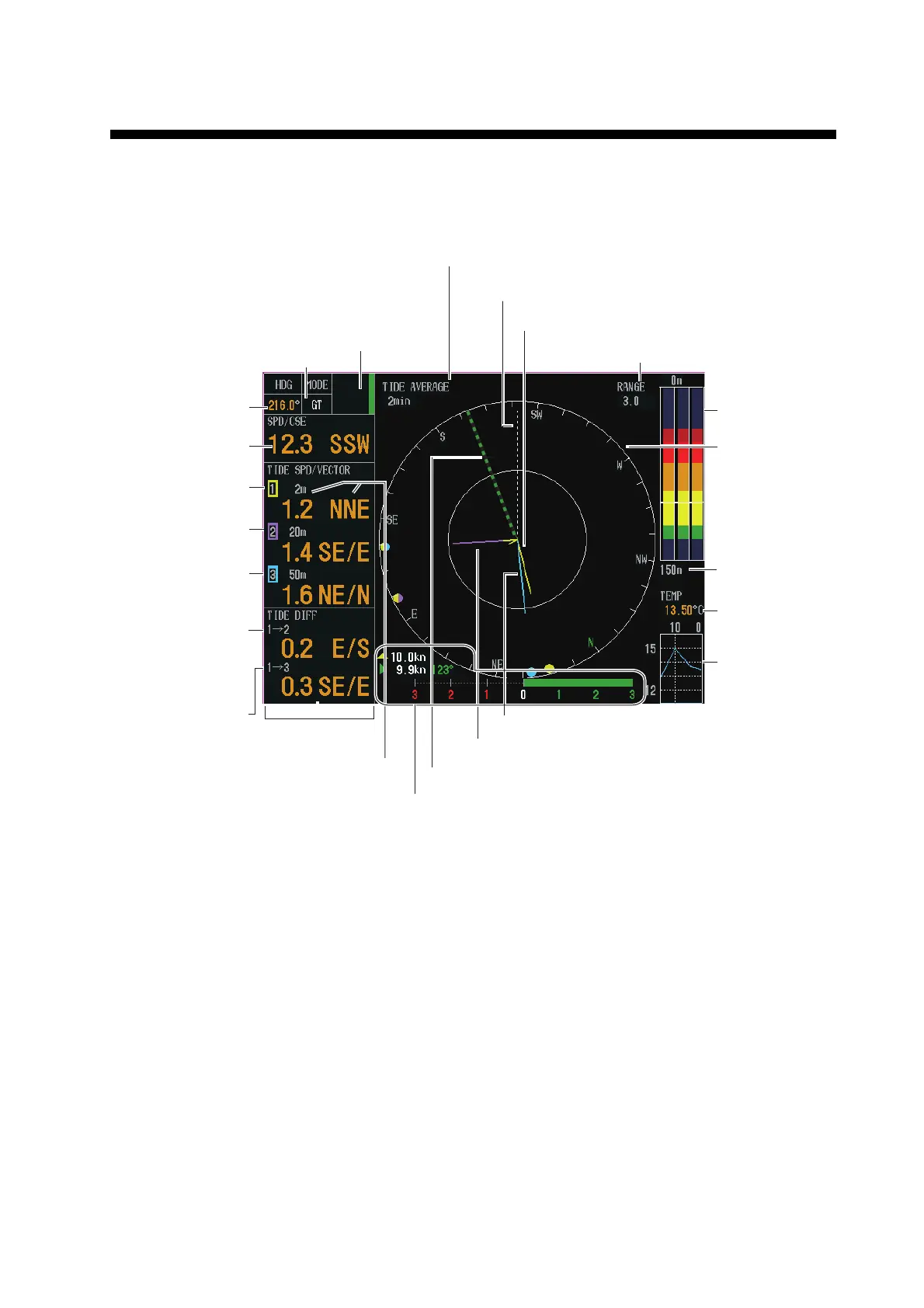

Tide vector display
Tide Average Setting
Tracking Mode
Mode Marker
Heading Line
Tide of Layer 1 (Yellow)
Tide Speed Range
Heading*
Speed, Course*
Layer 1: Yellow
Layer 1:
Yellow
Layer 2:
Purple
Layer 3:
Light-blue
Tide differential
between reference
and deeper of
other two layers
Tide differential
between
reference
and shallower of
other two layers
Text Window
Echo Level
Electronic
Bearing Scale*
Echo Display
Range
Water
Temperature*
Water
Temperature
Graph*
*: Sensor required.
Note: Missing or wrong
data is denoted
with " --".
kn
kn
kn
kn
Speed and direction
of tide and tide
differential
Tide of Layer 3 (Blue)
Tide of Layer 2 (Purple)
Own Ship Vector (Green)
Drift Data
