2-1
2. INTERPRETING THE DISPLAYS

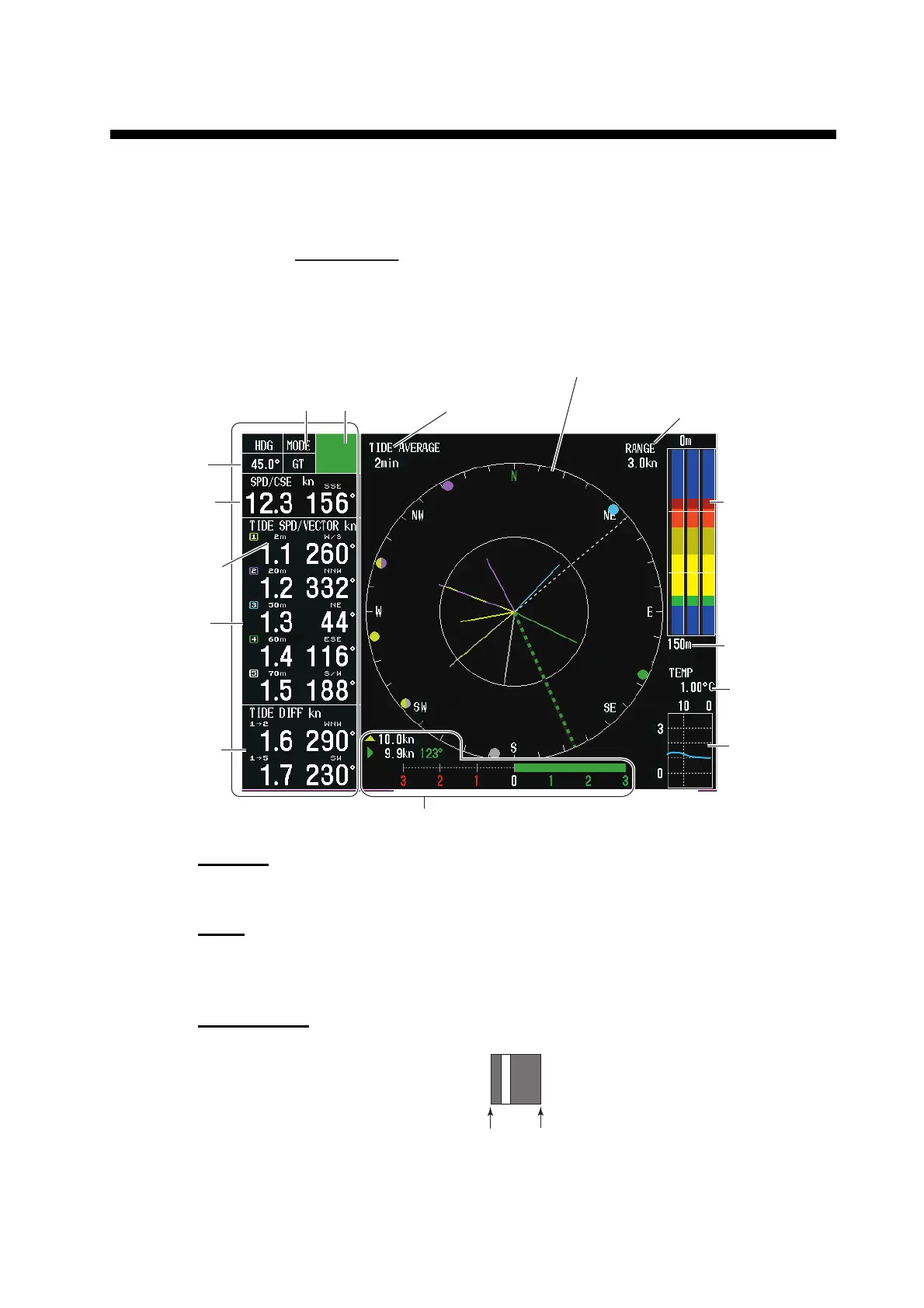

2.1 Tide Vector Display
Heading
Ship’s heading fed from a heading sensor.
Mode
Shows current tracking mode, as selected with the TRACK MODE key. See
section 1.6.
Mode marker
Shows tracking mode and echo
availability for last three minutes,
scrolling from right to left. The
color represents tracking mode
as shown right.
Tracking Mode
Mode Marker
Tide Average Setting
Tide Vector Circle
- Solid line: The speed and direction of the tide.
(LYR1: yellow, LYR2: purple, LYR3: blue, LYR4: green,
LYR5: grey**)
- Two-color line: The speed and direction of the differential tide.
- Dashed line (white or black): Heading
- Dashed line (green): Ship’s speed and course
Tide Speed Range
Echo Display
Range
Water
Temperatrure*
Water
Temperatrure
Graph*
Drift Data
Text Window
Tide Differential
Tide Speed
and Direction
(5 layers)
Depth Setting
Speed, Course
Heading*
*: Sensor required. Missing or wrong data is denoted with “--”.
**: Black when the setteing for
[BACKGROUND CLR] is white.
Echo Level
3 min.
ago
Current
mode
Green: Ground tracking mode
Blue: Water tracking mode, Nav mode
Back ground: Speed error
