4-1
4. ECHO SOUNDER MODE

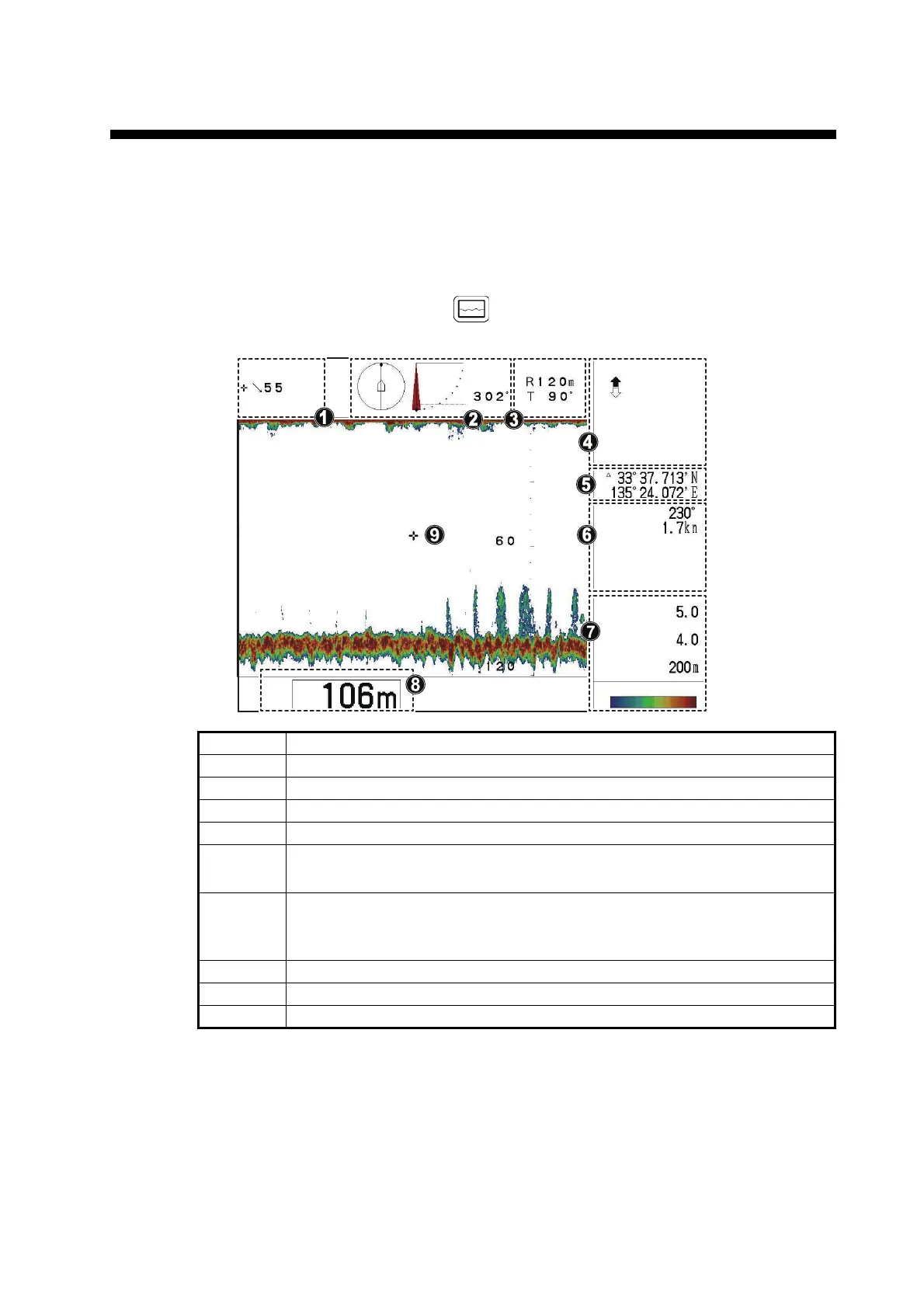

4.1 Typical Echo Sounder Display
The Echo Sounder display mode shows echoes in a manner similar to a conventional
fish finder.
To view this display mode, press .
Number Description
1 Indications for cursor position. (Range from own ship.)
2 Indications for scan direction, tilt angle and train bearing.
3 Indications for range and tilt.
4 Indications for transducer raise/lower status.
5 Own ship or cursor position (latitude/longitude).
Note: Requires connection to appropriate sensors.
6 Navigational data.(Heading, speed, depth, water temperature, tidal current
information.)
Note: Requires connection to appropriate sensors.
7 Echo display settings. (Gain, TVG level, distance.)
8 Depth indication
9 Fish finder echo display.
GAIN
CSE
SPD
DEP
TVG LEVEL
DISTANCE
COLOR
