3-1

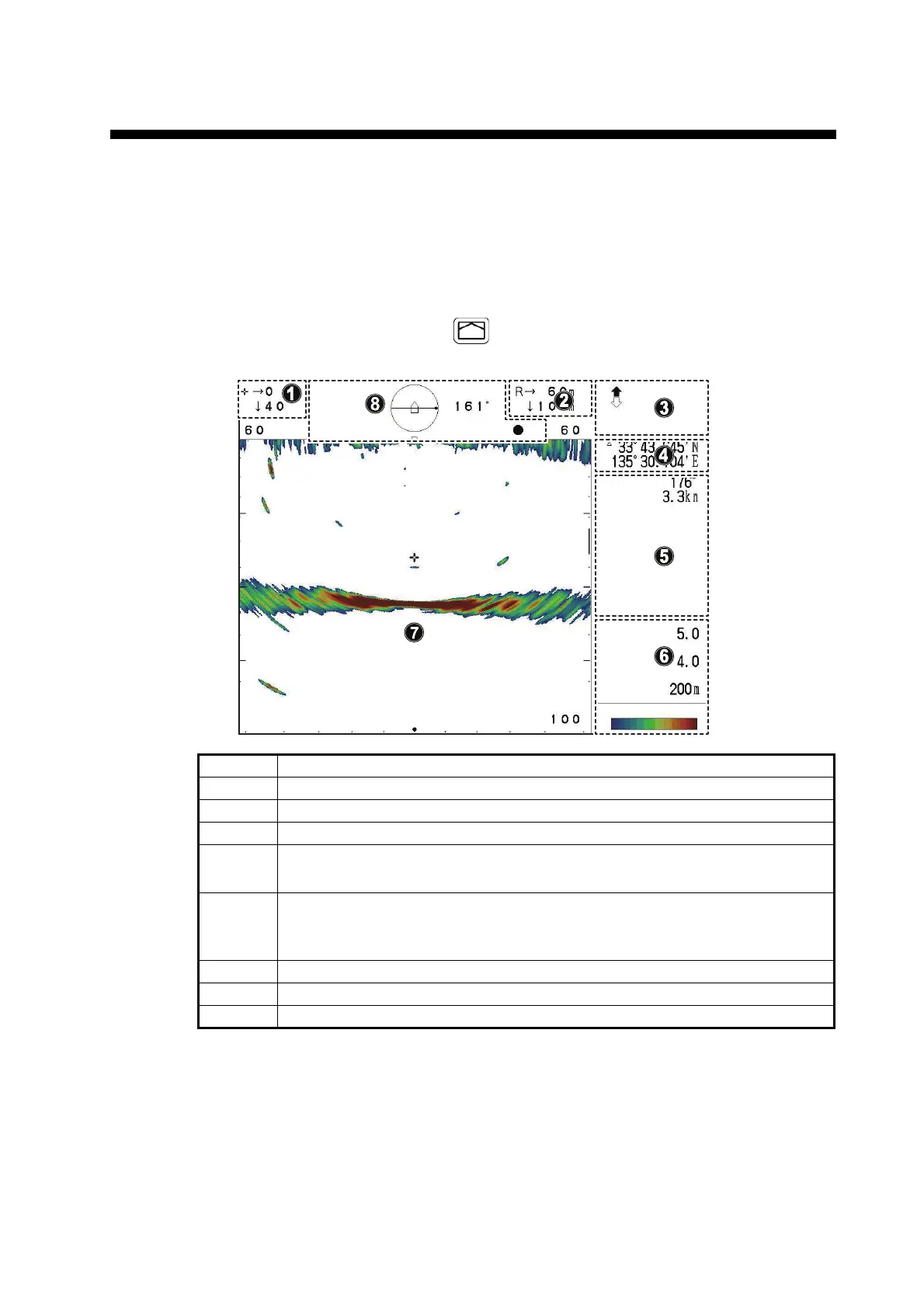

3. VERTICAL SCAN MODE
3.1 Vertical Mode
The Vertical display mode shows a “cross-section” of the water below and around the
ship by using a “fan-shaped” beam. This mode is useful when you want to view a sec-
tor below and around your ship.
To view this display mode, press .
Number Description
1 Indications for cursor position. (Horizontal distance, depth and bearing.)
2 Indications for range and tilt.
3 Indications for transducer raise/lower status.
4 Own ship or cursor position (latitude/longitude).
Note: Requires connection to appropriate sensors.
5 Navigational data.(Heading, speed, depth, water temperature, tidal current
information.)
Note: Requires connection to appropriate sensors.
6 Echo display settings. (Gain, TVG level, distance.)
7 Vertical scan echo display area.
8 Indications for scan direction and train bearing.
CSE
SPD
GAIN
PORT
STBD
TVG LEVEL
DISTANCE
COLOR
