2. HORIZONTAL MODE
2-8
2.7 Horizontal + History Mode

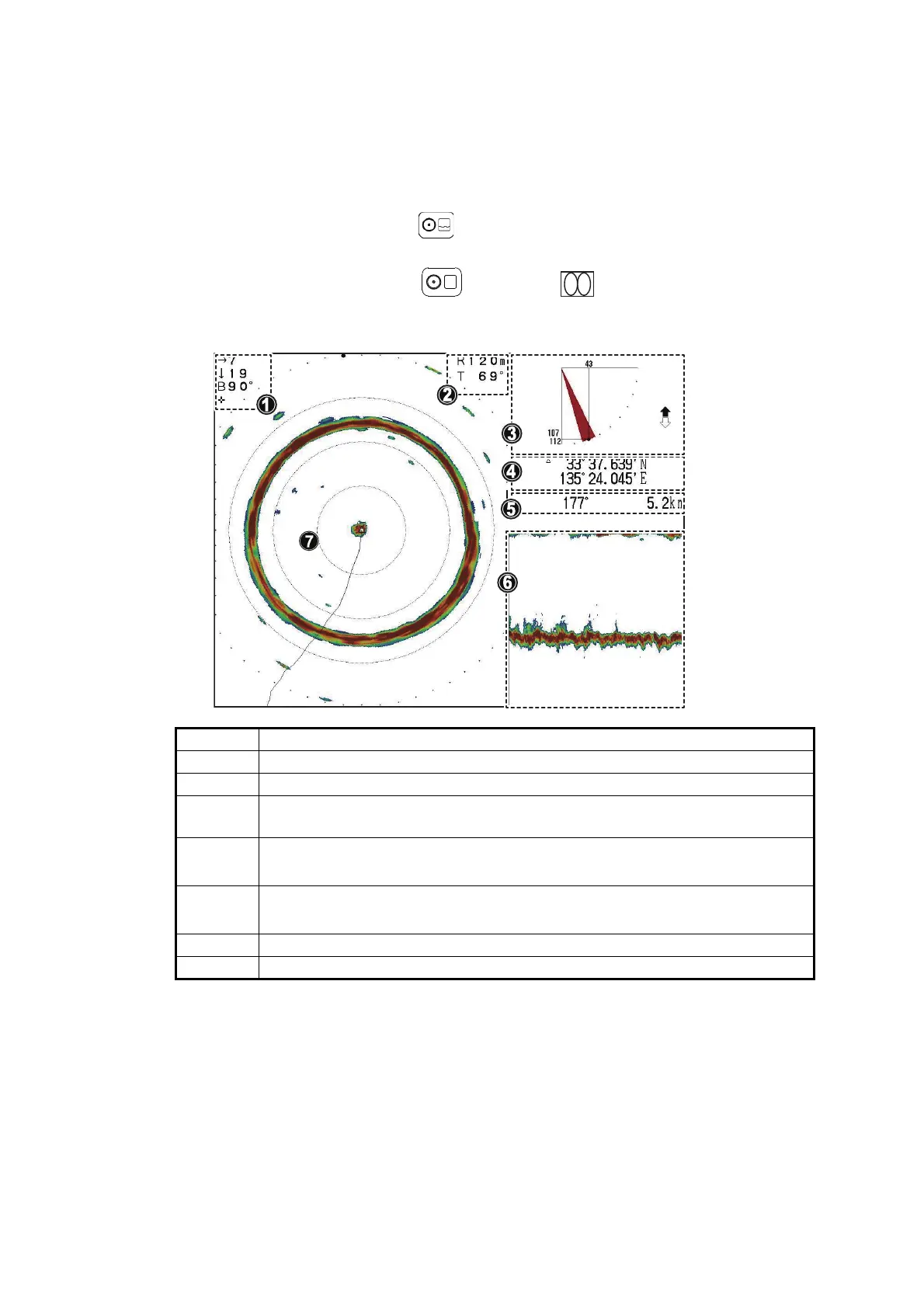

The Horizontal + History mode shows both the Horizontal scan echoes and a view of
the past horizontal scan echoes on one screen. This mode is best used to estimate
the size and distribution of schools.
When using the CH-500, press to view this display mode.
When using the CH-600, press and select HOR./Full A-Scope to view
this display mode.
Number Description
1 Indications for cursor position. (Horizontal distance, depth and bearing.)
2 Indications for range and tilt.
3 Indications for tilt angle, interference rejection, target lock and transducer
raise/lower status.
4 Own ship or cursor position (latitude/longitude).
Note: Requires connection to appropriate sensors.
5 Navigational data.(Heading and speed.)
Note: Requires connection to appropriate sensors.
6 History display area.
7 Horizontal scan echo display area.
㻭
CSE SPD
