2. INSTALLATION AND INITIAL SETTINGS
2-4

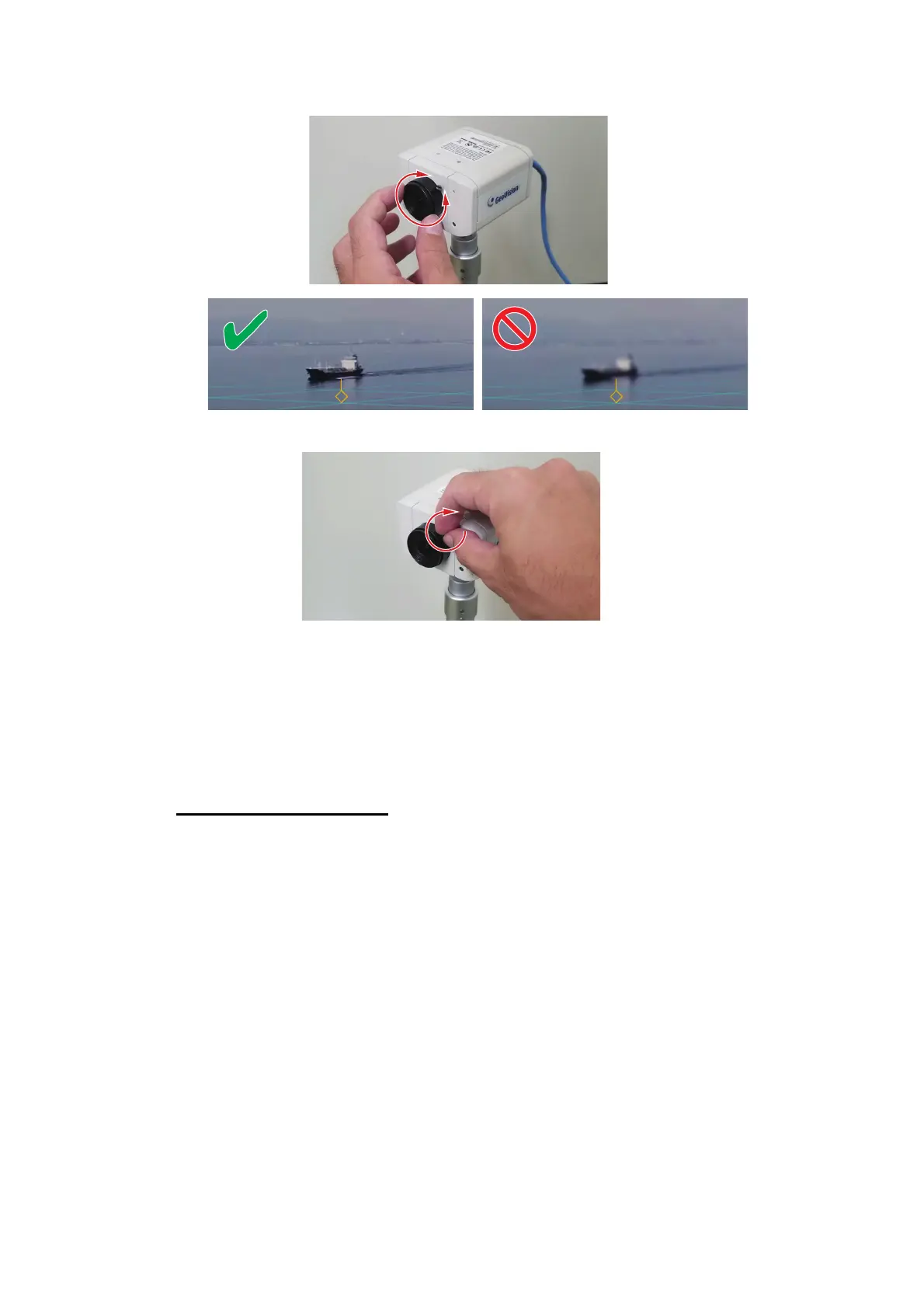

2. Rotate the focus ring to adjust the focus of the camera.
3. Rotate the ring fastening screw in clockwise direction to lock the focus ring.
2.1.4 Trackball
You can control almost all aspects of your AR navigation system from the trackball.
Locate the unit where it can easily be operated, and easily connected to the main PC.
2.1.5 Sensor adapter (option)
Mounting considerations
When you select a mounting location, keep in mind the following points:
• Locate the adapter away from heat sources because of heat that can build up inside
the cabinet.
• The vibration should be minimal.
• Locate the equipment away from places subject to water splash and rain.
• Make sure that the ground wire is connected between the earth terminal on chassis
and the ship’s earth.
• Leave sufficient space at the sides and rear of the unit to facilitate maintenance.
• A magnetic compass will be affected if the adapter is placed too close to the mag-
netic compass. Observe the compass safe distances at the front of this manual to
prevent interference to a magnetic compass.
