1. OPERATION
1-2
1.2 Controls Overview

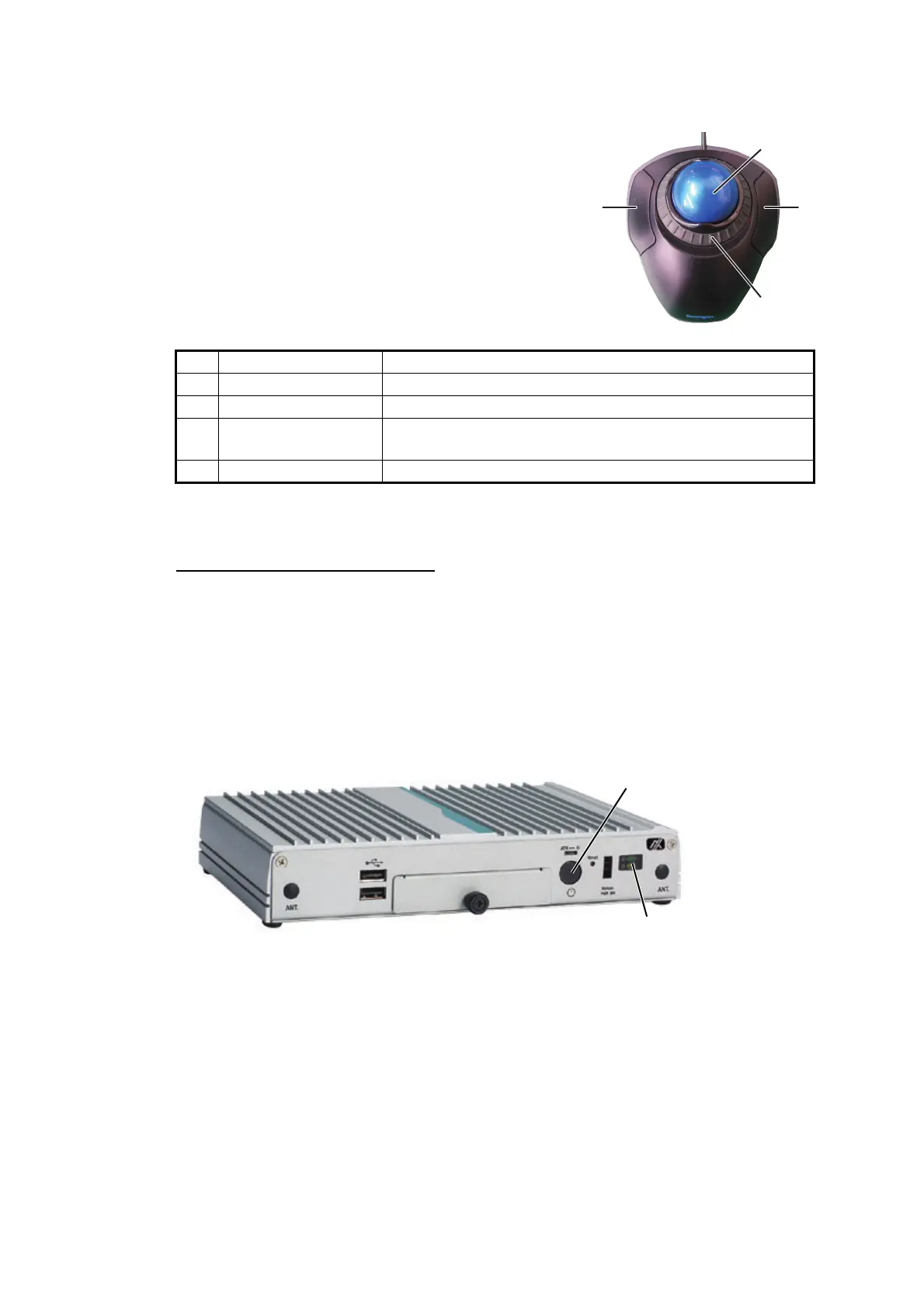

You can control almost all aspects of your AR navi-
gation system from the trackball. The figure to the
right and the table below show an overview of the
trackball with a brief description of the controls.
Note: If the trackball is not operated for a while, the cursor disappears automatically.
To show the cursor, operate the trackball.
Standards used in this manual
Unless noted otherwise, “click” means to put the cursor on a object and press the left
button on the trackball.
1.3 How to Turn the System On/Off
The power button for the system is located on the front panel of the main PC.
Note: When you turn the system on/off, keep in mind the following points:
• Supply power to the IP camera BEFORE turning on the AR navigation system. The
video image may not appear if the IP camera is not powered first. If the video image
does not appear, restart the AR navigation system.
• Lightly press the power button. If the power button is pressed too firmly, the button
may get caught on the chassis.
• Do not turn the system off at the switchboard or breaker. The unit may be damaged.
No. Name Description
1 Left button Select a highlighted object or menu item.
2 Right button No function.
3 Scroll ring • Scrolls the menu.
• Zooms in/out at cursor location.
4 Trackball Moves the cursor.
2
1
3
4
Power button
LED indicators
