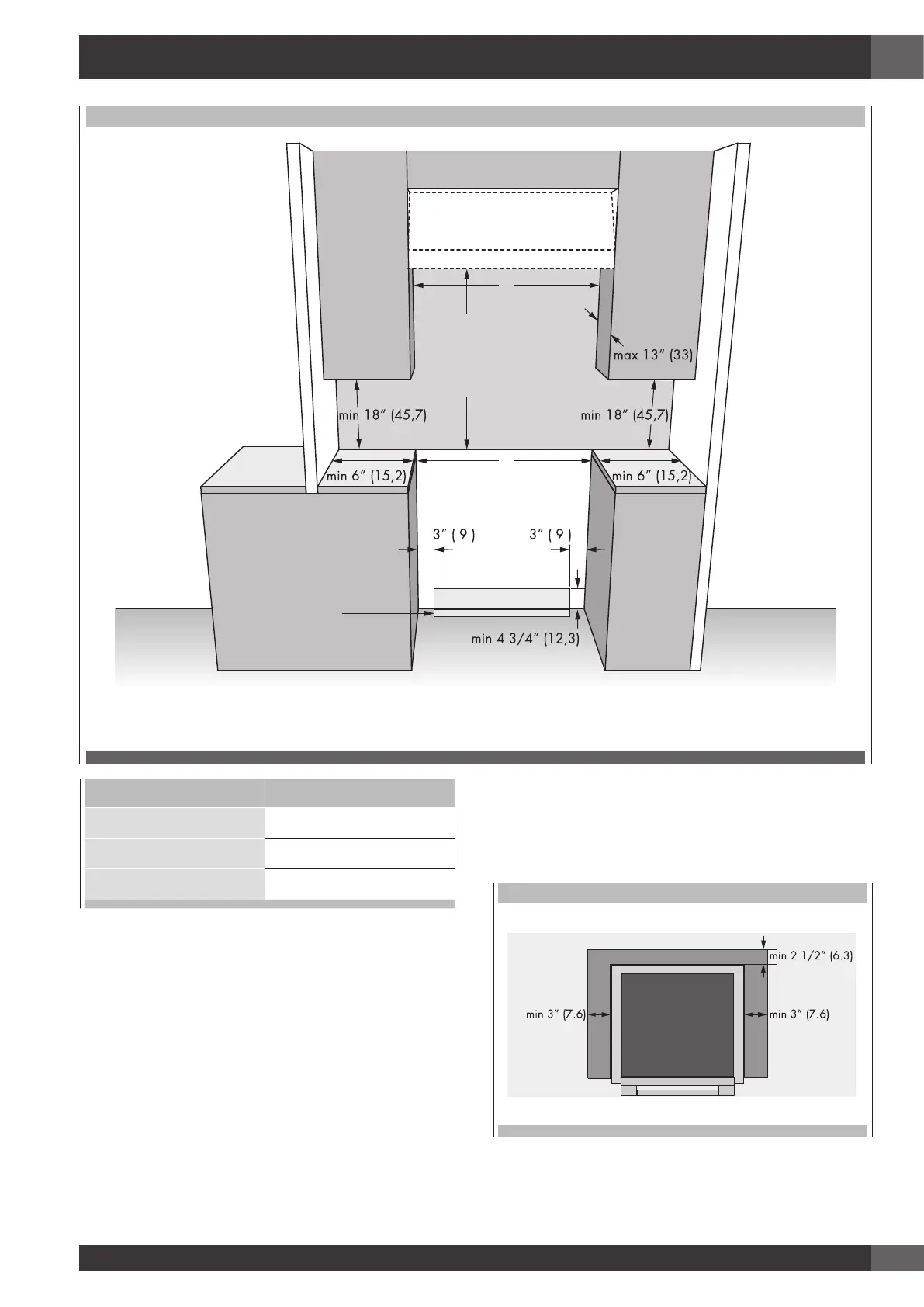

CUTOUT REQUIREMENTS

2” (5,1) max.

protusion from wall

for electrical supply

min 25 1/2” (65)

Minimum to

Combustibles

or to botton of

ventilation hood

ELECTRIC

The surface of the entire back wall above the range and below the hood must be covered with a noncombustible material.

*Consult local code for exact location requirements.

OPENING WIDTH A & B

Range 76.2 cm (30”) 76.2 cm (30”)

Range 91,4 cm (36’’) 91.4 cm (36”)

Range 90.1 cm (35 1/2”) 90.1 cm (35 1/2”))

Minimum clearances:

Above cooking surface (above 36” [91.4 cm])

• Sides - 3” (7.6 cm)

• Within 3” (7.6 cm) side clearance, wall cabinets no deeper

than 13” (33.0 cm) must be minimum 18” (45.7 cm) above

cooking surface

• Rear - 0” with 3” (7.6 cm) backguard.

ADDITIONAL CLEARANCES:

For island installation, maintain 2-½ in. minimum from cutout

to back edge of countertop and 3 in. minimum from cutout to

side edges of countertop (see top view).

FLUSH ISLAND INSTALLATION

BACK
