En-14
NOTES
• Unit* means indoor unit, outdoor unit, Touch panel controller and System controller,
Signal amplifier, single split adaptor, Network convertor etc.
• Do not use loop wiring. This may lead to parts damage
and erroneous operation.

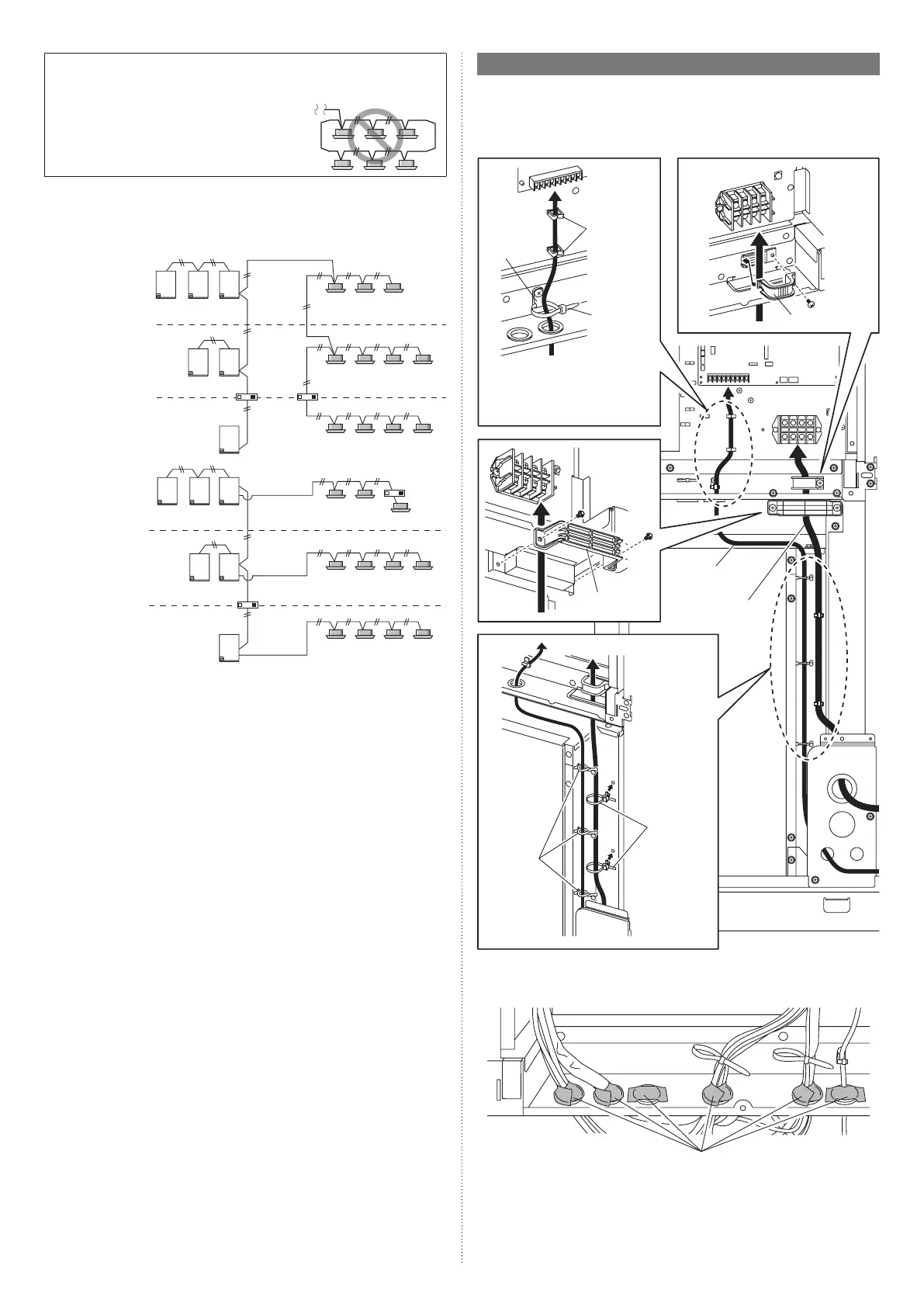

6.5.3 Enabling/Disabling automatic address setting
You can enable/disable automatic address setting for the indoor unit, RB unit and the
Signal amplifier.
To enable automatic address setting for the indoor unit, connect the indoor unit to outdoor
units under the same refrigerant system.
Example:
Disable auto-
matic address
setting
Refrigerant system 1
Refrigerant system 2
Refrigerant system 3
Transmission line
Transmission line
Transmission line
Example:
Enable auto-
matic address
setting
Refrigerant system 1
Refrigerant system 2
Refrigerant system 3
Transmission line
Transmission line
Transmission line
6.6. Wiring procedure
• Remove the cover of the electrical compartment and follow the terminal plate to connect
the electric cables to the terminal.
• After connecting the cables, secure them with the cable ties.
• Connectthecableswithoutapplyingexcessivetension.
6.6.1 Cable routing
Cable guide
Cable clip
Cable tie (*1)
(accessory)
Transmission
cable routing
Cable clamp
Cable clamp
Power supply
cable routing
*1: Tighten the cable tie firmly so that
pulling force does not propagate
to the terminal connection even
if force of 100 N is applied to the
cable.
Twist the
cable clip
to secure
the cable.
Push mount
cable tie
(accessories)
6.6.2 Measures against insect invasion
Coverthegapsinthesixcableholeswithinsulation(accessory).Thenumberofcables
varies depending on the model.
Insulation (accessory)
Cut to the required size and use.
9378945746-02_IM_En_240404_2.indd 149378945746-02_IM_En_240404_2.indd 14 2024/04/04 16:26:072024/04/04 16:26:07
