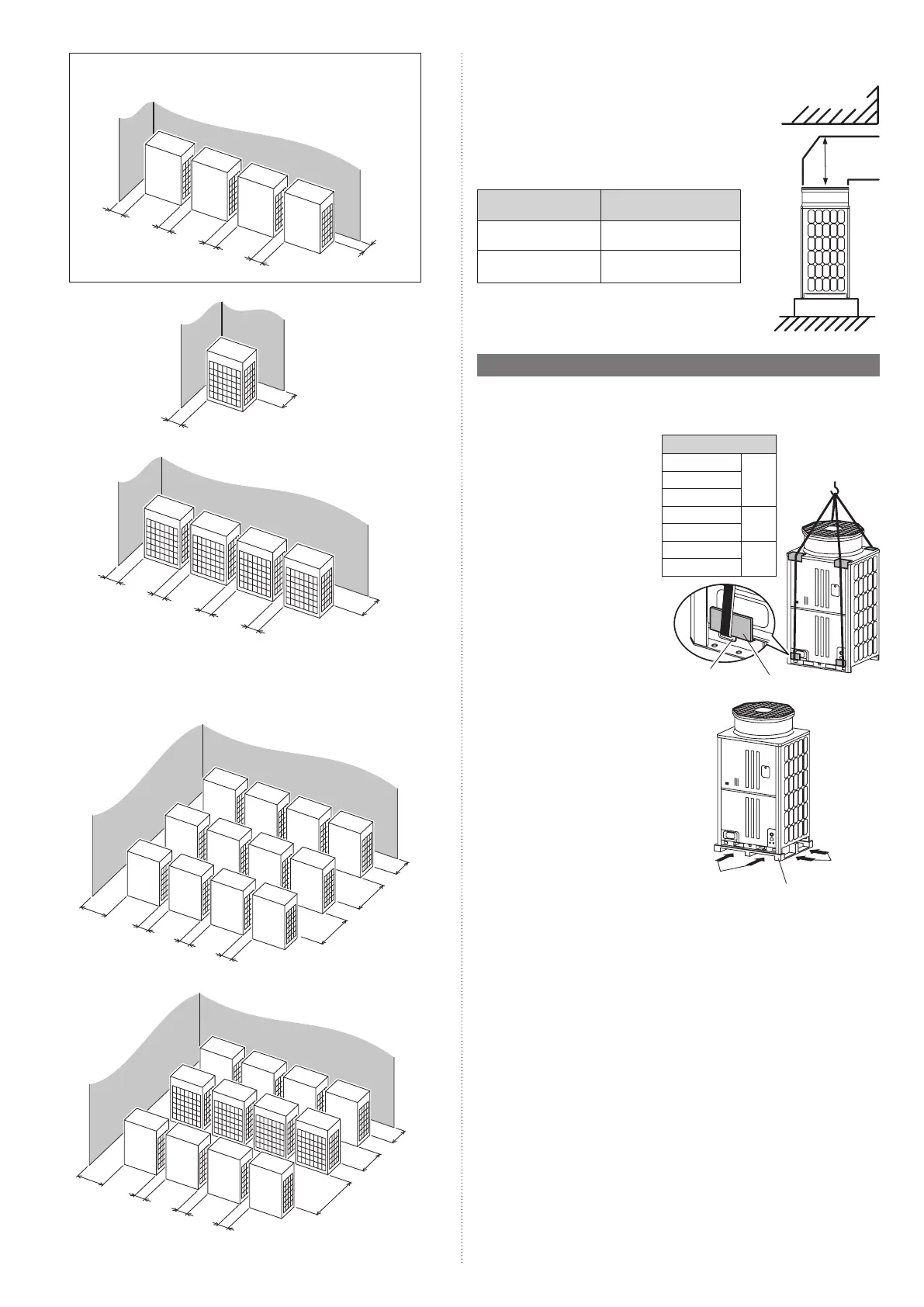

Example:
When B is made 200 mm
L6≥200+(400-200)×3=800mm
Unit: mm
200 or
more
200
200
200
1,000 or
more
When installing with the FRONT of the outdoor unit facing the wall side
Unit: mm
200 or
more
500 or
more
Unit: mm
200 or
more
20 or
more
20 or
more
20 or
more
500 or
more
(2) Concentrated Installation
• Thewall(withoutheightrestrictions)mustnotexistonthebothsides(left/right)ofoutdoor
unit.Also,mustnotexistonthebothsides(front/rear)ofoutdoorunit.
• Ventilation resistance can be ignorable when the distance from a wall or product, etc. is
larger than 2 m.
Unit: mm
1,000 or
more
400 or
more
400 or
more
800 or
more
800 or
more
400 or
more
400 or
more
Unit: mm
1,000 or
more
1,000 or
more
400 or
more
400 or
more
500 or
more
400 or
more
400 or
more
3.3.3 When there are obstacles above the product
When there are obstacles above the product, keep the
minimum installation height as shown in the figure and
install the outlet duct.
When installing the outlet duct, you must set the high
static pressure mode with the push-button switch.
(Similar when installing anti-snow hood)
500 mm
or more
Outlet duct
Setting high static pressure mode
Follow the instructions in the table below to set the high
static pressure mode.
Condition
High static pressure mode
setting (*2)
Static Pressure (SP):
0≤SP≤30(Pa)(*1)
Set to High static pressure 1
Static Pressure (SP):
30<SP≤82(Pa)(*1)
Set to High static pressure 2
*1: Static pressure is the airflow resistance that includes
the discharge duct resistance & the other additional
resistance like discharge grill and so on.
*2: Refer to the section on Push button setting in “7.
FIELD SETTING”.
3.4. Transporting the unit
Hoisting method
• When hanging the outdoor unit and conveying it to installation location, hang the unit
with rope by passing through the 4 opening holes on bottom of front and rear side as
shown in figure.
• Use 2 ropes at least 8 m long. If used
shorter length, it may cause damage
to the unit
.
• Use the sufficiently strong rope to
bear the unit’s weight.
• Place the protective board or filler
cloth at the place where the cabinet
may come into contact with rope to
prevent damages. Without using
them, cabinet may be damaged.
• During the hanging of the unit, make
sure to keep the unit level to prevent
falling.
• To prevent the unit from swinging or
falling down, do not apply any impact
to the unit when it is hanging.
Opening
space
Protective boards
Product mass (kg)
AJG072JATAH
209AJG090JATAH
AJG108JATAH
AJG126JATAH
232
AJG144JATAH
AJG162JATAH
255
AJG180JATAH
Lifting by forklift
• When using the forklift to lift the unit,
pass the forklift arms through the
opening space as shown in below.
Fork (Forklift)
Delivery pallet
Forklift or
manual
forklift
<Front>
<Side>
Front: Bottom of the wooden
delivery pallet.
Side: Space between pallet and
cabinet. (Enable to remove the pal-
let from cabinet.)
• Be careful not to damaged.
Lifting by manual forklift (hand-forklift)
• When using the manual forklift to lift the unit, pass the forklift arms through to the open-
ing space between pallet and cabinet from side.
9378945746-01_IM_En_240313.indd 59378945746-01_IM_En_240313.indd 5 2024/03/14 8:55:042024/03/14 8:55:04
