CAUTION
Wear gloves and safety goggles. Use extreme CAUTION when installing these handles.
NOTE
All set screws should be tightened so the screw is below the surface of the handle.
The handles should be drawn tight to freezer and refrigerator doors with no gaps.
Opening the opposite door while tightening the Allen screw makes installation easier.
The door handle may loosen over time or if it was installed improperly. If this hap-
pens, tighten the set screws on the handles.

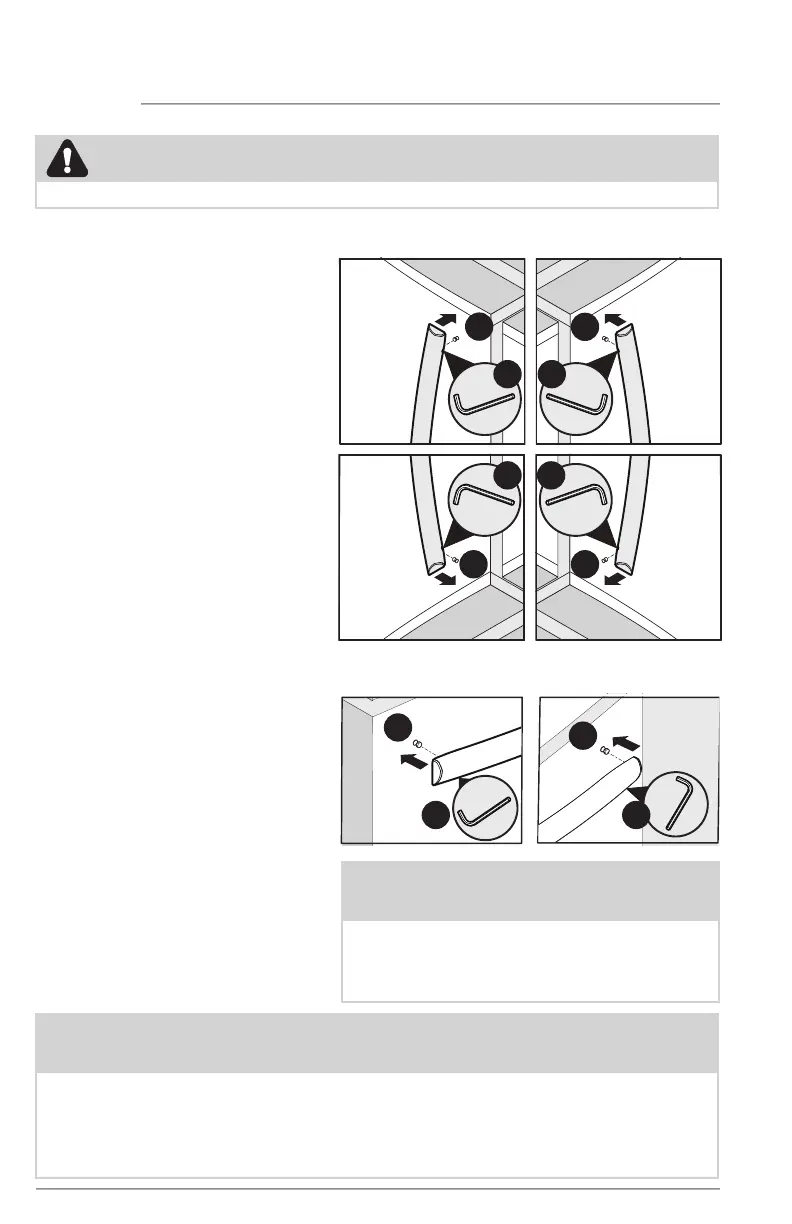

Door Handle Mounting
Instructions
1. Remove handles from carton
and any other protective
packaging.
2. Position refrigerator handle end
caps over upper and lower pre-
installed shoulder bolts (A) that
are fastened into door, ensuring
the holes for the set screws are
facing towards the opposite door.
3. While holding handle firmly
against door, fasten upper and
lower Allen set screws (B) with
supplied Allen wrench.
4. Repeat steps 2 and 3 to install
opposite handle. Ensure the
holes for the set screws are
facing towards the opposite
door.
5. Position freezer handle end caps
over left and right pre-installed
shoulder bolts (A) that are
fastened to the door, ensuring
the holes for the set screws are
facing down.
6. While holding handle firmly
against door, loosely tighten
right Allen set screw (B) with
supplied Allen wrench until
there is no gap between handle
and door.
7. Still holding the handle firmly to
the door, firmly tighten left Allen
set screw (B) with supplied Allen
wrench.
8. Return to the right Allen set
screw (B) and firmly tighten
with supplied Allen wrench.
Mounting Refrigerator Handles
NOTE
When tightening the Allen set screws, it
is important that force be applied to the
longer arm of the Allen wrench supplied in
the handle packaging.
DOOR HANDLE INSTALLATION
Mounting Freezer Handle
A
A
B B
A
A
AA
B
B
B
B
